Floor cable trunking duct system — BS EN 50085 / IEC 61084

Description

1. Product Overview

Floor Cable Trunking Duct System manufactured according to BS EN 50085 / IEC 61084 is a structured cable management solution designed to route, protect, and organize electrical, data, and communication cables in commercial and industrial environments. It provides a safe, efficient, and accessible pathway for power distribution, networking, and low-voltage installations while maintaining a clean and professional workspace. Engineered for durability, load resistance, and installation flexibility, this system reduces cable damage, improves maintenance efficiency, and supports modern building infrastructure requirements. Its strategic importance lies in enabling reliable cable management solutions for smart buildings, industrial automation facilities, and large-scale construction projects worldwide.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • High-impact PVC, rigid PVC, or halogen-free thermoplastic compounds depending on application requirements.
  • Optional metallic reinforcement or aluminum components for heavy-duty floor applications.
  • UV-resistant and flame-retardant additives available for enhanced safety performance.
• Compliance & Grade:
  • Manufactured according to BS EN 50085 and IEC 61084 standards for cable trunking and ducting systems.
  • Available in industrial, commercial, and heavy-duty installation grades.
  • Fire-retardant and low-smoke formulations available upon request.
• Physical Characteristics:

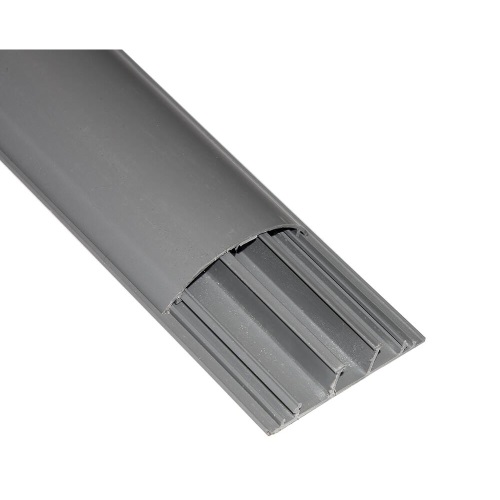

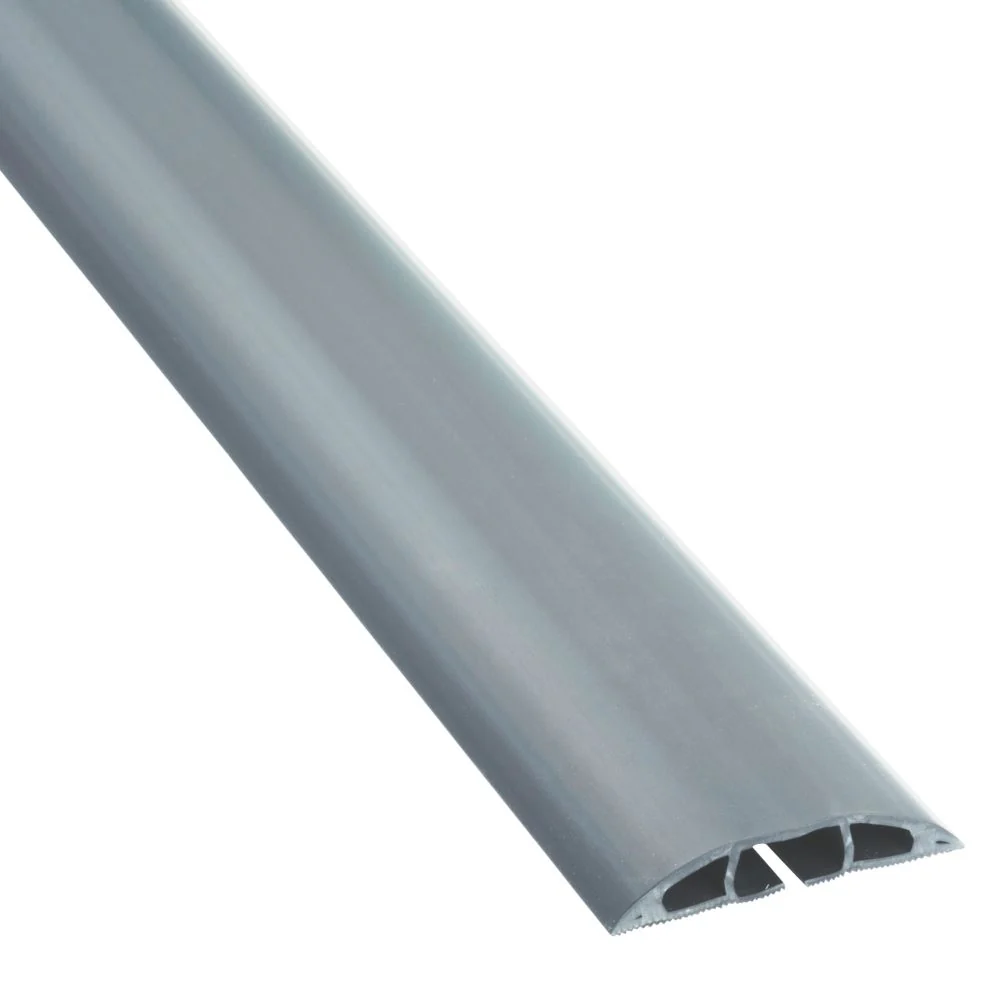

  • Form: Rigid floor-mounted cable trunking duct with removable covers.
  • Color Options: Standard white, grey, black, or customized colors.
  • Design: Multi-compartment channels for separating power, data, and communication cables.
  • Surface Finish: Smooth, impact-resistant exterior for easy cleaning and maintenance.
  • Operating Temperature: Typically suitable for -5°C to +60°C depending on material grade.
  • Features: Snap-fit covers, modular accessories, junction fittings, and corner sections.
• Product Dimensions:
  • Available in various widths and heights to accommodate different cable volumes.
  • Standard lengths commonly supplied in 2 m or 3 m sections.
  • Custom dimensions available for large infrastructure projects.
• Packaging Options:
  • Bundled in protective cartons, shrink wrap, or export-grade wooden packaging.
  • Accessories supplied separately or as complete installation kits.
  • Suitable for containerized international shipping.
• Shelf Life:
  • Long service life exceeding 15–25 years under recommended installation conditions.
  • Stored in dry, protected environments to maintain material performance.

3. Core Industrial Applications

• Commercial Buildings & Smart Infrastructure
  • Used for organized routing of electrical power, network cables, and communication systems in offices, shopping centers, airports, and public facilities.
  • Provides flexible access for future cable upgrades and technology expansion.
• Industrial Manufacturing Facilities
  • Supports cable protection in factories, automation plants, and production lines where reliable cable organization is critical.
  • Helps minimize downtime by simplifying inspection, replacement, and maintenance activities.
• Data Centers & Telecommunications
  • Enables efficient separation and protection of power and data cables.
  • Improves airflow management and reduces risks associated with cable congestion.
• Construction & Building Services
  • Integrated into flooring systems for modern commercial developments requiring concealed yet accessible cable distribution.
  • Offers faster installation compared with traditional embedded cable routing methods.
• Why It Performs Better Than Alternatives:
  • Provides superior cable protection compared with exposed wiring systems.
  • Reduces installation time through modular designs and easy-access covers.
  • Delivers improved safety, organization, and long-term maintenance cost savings.

4. Competitive Advantages

• Quality Consistency:
  • Manufactured using controlled production processes to ensure dimensional accuracy, mechanical strength, and reliable performance.
  • Compliance with international cable management standards ensures dependable installation quality.
• Supply Reliability:
  • Stable manufacturing capacity supports large-scale commercial and industrial projects.
  • Flexible production capability for standard and customized specifications.
• Logistics Capability:
  • Export-ready packaging designed for international transportation.
  • Efficient container loading solutions for bulk project requirements.
• Price Competitiveness:
  • Cost-effective alternative to complex cable containment systems.
  • Reduced installation and maintenance costs improve total project economics.
• Sustainability Benefits:
  • Recyclable thermoplastic materials support environmentally responsible construction practices.
  • Halogen-free and low-smoke options available for safer green building applications.
• Technical Support & Documentation:
  • Available with technical datasheets, compliance certificates, installation guides, and quality documentation.
  • Engineering support available for project-specific cable management requirements.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity (MT per Container):
  • Approximately 18–22 MT per 40-foot container, depending on trunking dimensions, packaging configuration, and accessory volume.
