HDPE cable duct pipe — EN 61386 / ISO 9969

Description

1. Product Overview

HDPE Cable Duct Pipe — EN 61386 / ISO 9969 is a high-density polyethylene conduit system engineered for the secure protection and long-term routing of underground power, telecommunications, and fiber optic cables. Manufactured to international performance standards, it provides superior mechanical strength, chemical resistance, and durability in demanding buried infrastructure environments. Its lightweight design, corrosion-free properties, and extended service life make it a cost-effective alternative to traditional metal conduits. As global investment in energy networks, broadband expansion, and smart infrastructure accelerates, HDPE cable duct pipe serves as a critical component for reliable cable protection systems.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • High-Density Polyethylene (HDPE) resin with excellent impact resistance and environmental stress crack resistance.
  • Manufactured using virgin-grade polyethylene materials for consistent mechanical performance.
• Standard Compliance:
  • Designed according to EN 61386 conduit system requirements.
  • Tested according to ISO 9969 ring stiffness and dimensional performance standards.
• Grade / Performance Characteristics:
  • Electrical insulation grade HDPE.
  • High resistance to moisture, chemicals, corrosion, and biological degradation.
  • Suitable for underground and direct burial applications.
• Physical Characteristics:

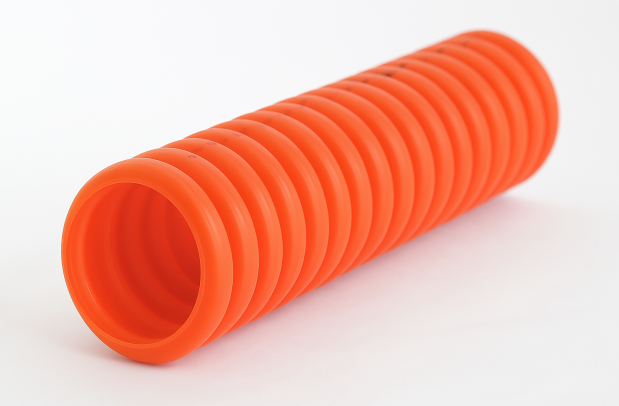

  • Form: Smooth or corrugated wall pipe design depending on application requirements.
  • Color: Typically black, with optional identification stripes or custom colors.
  • Diameter Range: Available in multiple sizes to accommodate different cable capacities.
  • Density: Approx. 0.94–0.97 g/cm³.
  • High impact strength with excellent flexibility for installation in complex terrains.
• Mechanical Properties:
  • High compressive strength for underground loading conditions.
  • Superior abrasion resistance during cable installation.
  • Long-term structural stability under soil pressure.
• Packaging Options:

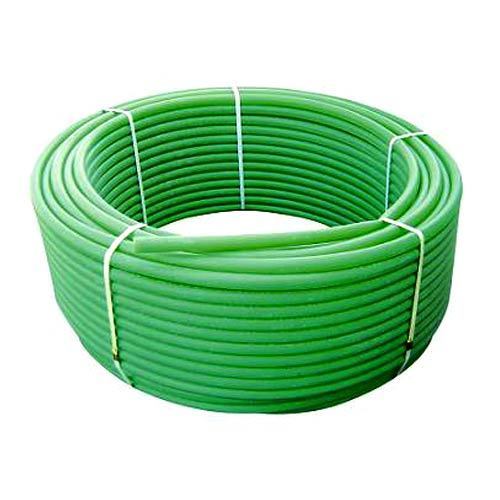

  • Supplied in coils, straight lengths, or customized bundles.
  • Export packaging suitable for containerized transportation.
  • Protective wrapping available for long-distance shipping.
• Shelf Life:
  • Typically 50+ years service life under recommended underground installation conditions.
  • Resistant to UV exposure during storage when properly protected.

3. Core Industrial Applications

• Power Transmission & Distribution:
  • Used for underground electrical cable protection in utility networks, substations, renewable energy projects, and urban power infrastructure.
• Telecommunications & Fiber Optic Networks:
  • Provides secure pathways for fiber optic cables, 5G infrastructure, broadband expansion, and data communication systems.
• Railway & Transportation Infrastructure:
  • Applied in railway signaling systems, highway communication networks, and intelligent transport projects.
• Renewable Energy Projects:
  • Supports underground cabling requirements for solar farms, wind farms, and energy storage facilities.
• Industrial & Commercial Construction:
  • Used in factories, industrial parks, airports, and large-scale building developments requiring reliable cable management.
• Performance Advantages Over Alternatives:
  • Unlike metal conduits, HDPE does not corrode, reducing maintenance requirements and lifecycle costs.
  • Provides easier installation due to lightweight construction and flexibility.
  • Minimizes cable damage risk through smooth internal surfaces and excellent impact resistance.

4. Competitive Advantages

• Consistent Quality Performance:
  • Manufactured with controlled extrusion processes to ensure uniform dimensions, mechanical strength, and compliance with international standards.
• Reliable Supply Capability:
  • Suitable for large infrastructure projects requiring stable production capacity and repeat bulk deliveries.
• Global Logistics Capability:
  • Optimized for containerized export shipments with efficient packing solutions for international distribution.
• Cost Competitiveness:
  • Offers lower installation and maintenance costs compared with traditional metal conduit systems.
  • Lightweight structure reduces transportation and labor expenses.
• Sustainability Benefits:
  • Fully recyclable polyethylene material.
  • Long service life reduces resource consumption and replacement frequency.
  • Supports modern low-carbon infrastructure development.
• Technical Documentation & Support:
  • Available with product datasheets, dimensional specifications, compliance documentation, and quality certificates.
  • Technical assistance available for project specification and application requirements.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity:
  • Approximately 18–22 MT per 40-foot container, depending on pipe diameter, coil configuration, and packaging method.
