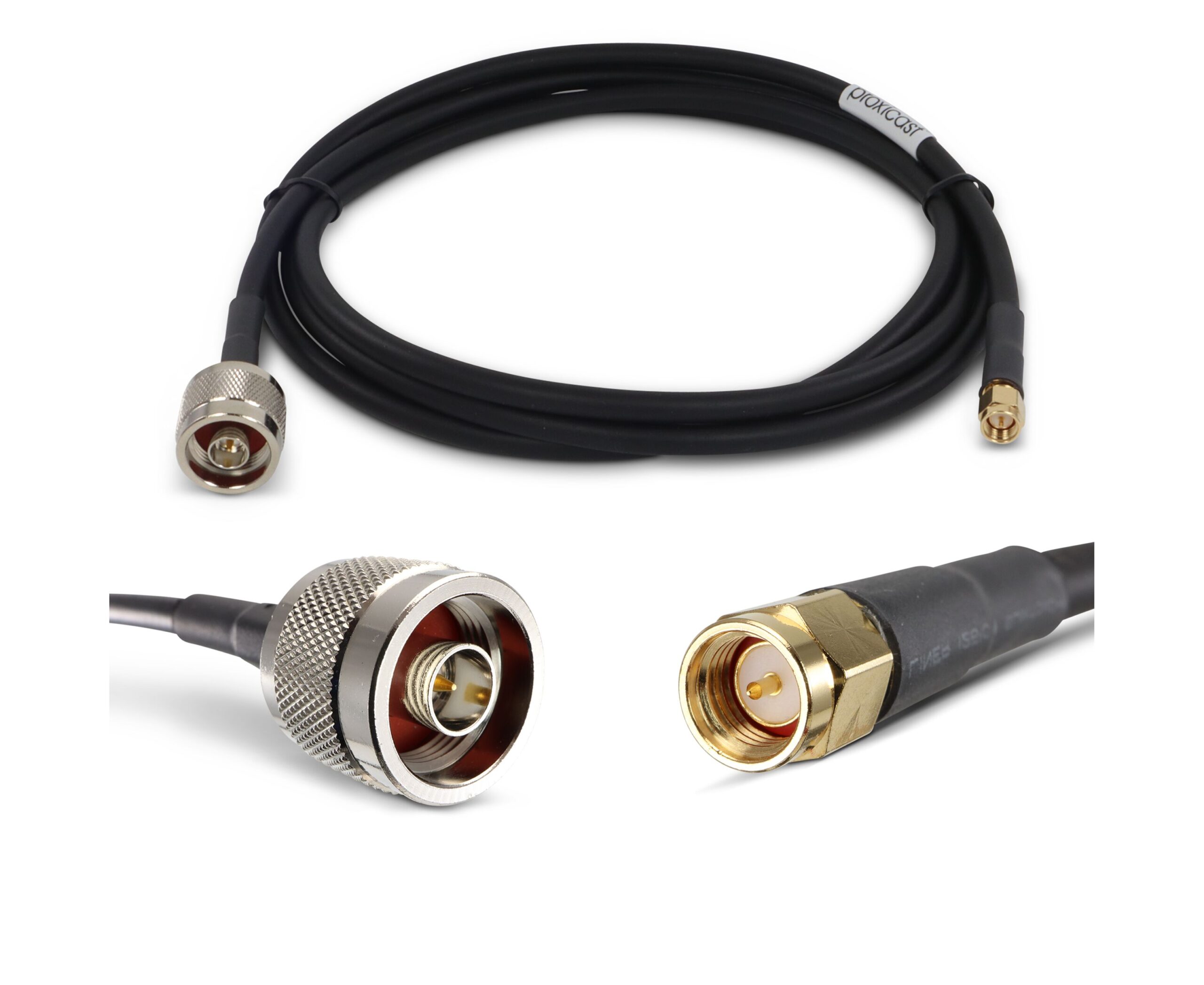

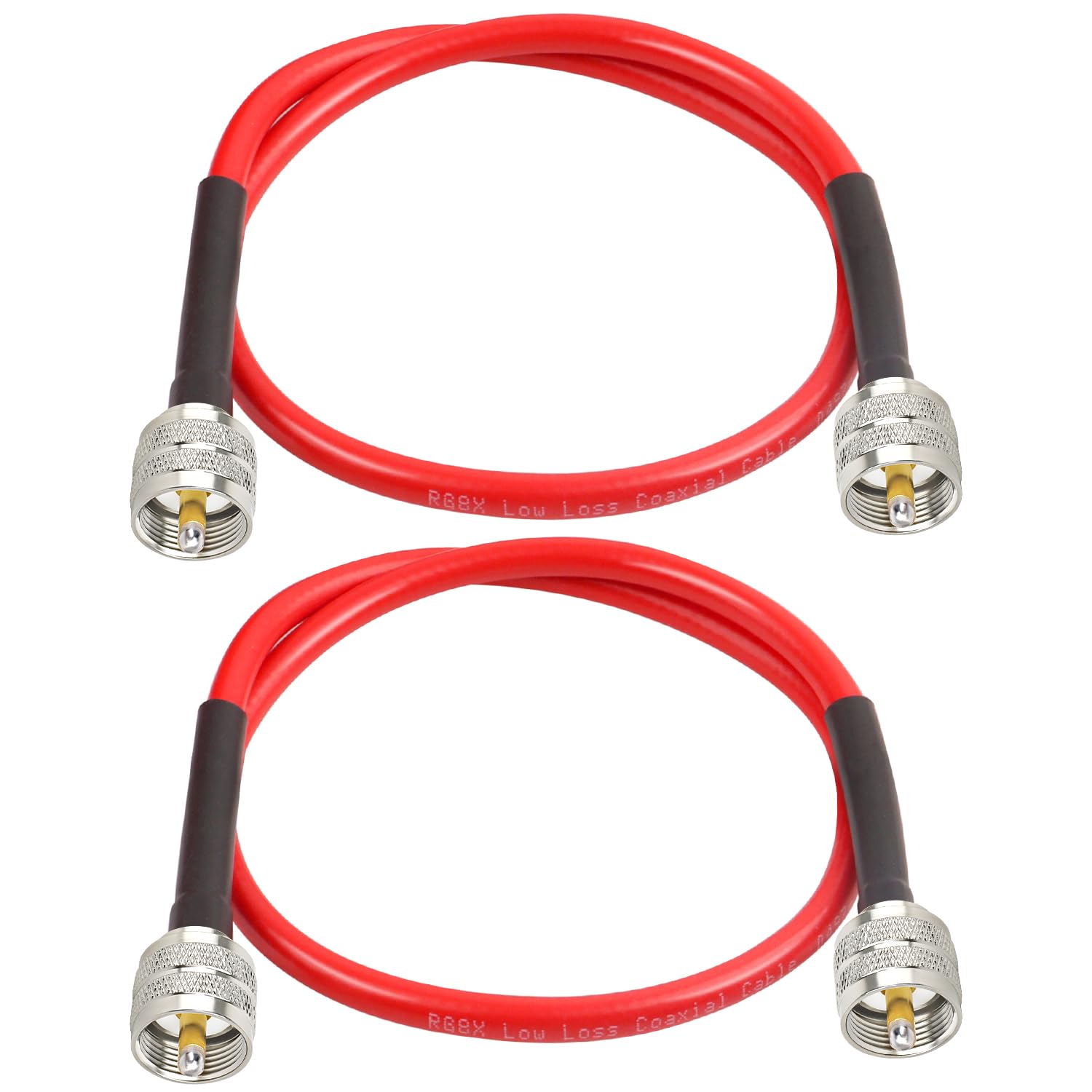

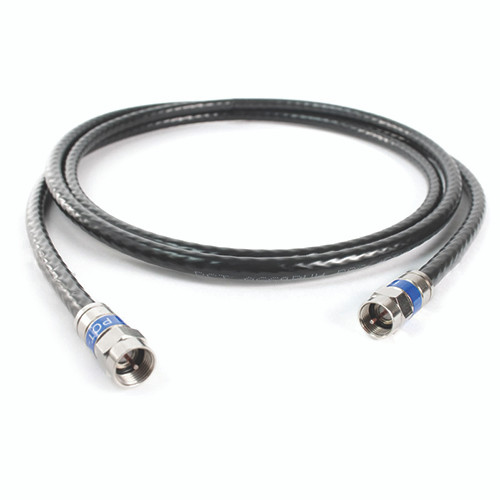

Flexible Coax Jumper Cable

Description

1. Product Overview

Flexible Coax Jumper Cable is a high-performance RF transmission cable designed to provide reliable signal connectivity between antennas, radio equipment, and communication system components. It is widely used in telecommunications, wireless networks, broadcast systems, and industrial RF applications where flexibility, low signal loss, and mechanical durability are critical. Engineered with precision conductors, shielding layers, and protective outer jackets, it delivers consistent electrical performance in demanding environments. Its strategic importance lies in enabling efficient deployment of next-generation communication infrastructure, including 5G networks, data systems, and industrial wireless solutions.

2. Key Specifications & Technical Characteristics

• Material Components:
  • Inner conductor: Copper or silver-plated copper for high electrical conductivity
  • Dielectric insulation: Low-loss polyethylene (PE), PTFE, or foam dielectric materials
  • Shielding layer: Multi-layer copper braid, aluminum foil, or corrugated copper shielding
  • Outer jacket: UV-resistant PVC, PE, or low-smoke zero-halogen (LSZH) protective sheath
• Electrical Performance:
  • Impedance: 50 Ohm standard RF configuration
  • Frequency range: Typically DC to multi-GHz depending on cable design
  • Low insertion loss for efficient signal transmission
  • High shielding effectiveness to minimize electromagnetic interference (EMI)
• Physical Characteristics:
  • Form: Flexible coaxial cable assembly with factory-installed connectors
  • Color: Typically black or customized according to customer requirements
  • Cable diameter: Available in multiple sizes for different RF applications
  • Bend radius: Optimized for repeated installation and tight routing spaces
  • Connector options: SMA, N-Type, TNC, DIN, BNC, and other RF connectors
• Performance Grade:
  • Industrial RF communication grade
  • Weather-resistant and suitable for indoor/outdoor installations
  • Available in standard and customized cable lengths
• Packaging Options:
  • Individual protective packaging
  • Coil or reel packaging for bulk supply
  • Export-grade cartons with moisture protection
• Shelf Life:
  • Typically 5–10 years when stored in dry, temperature-controlled conditions

3. Core Industrial Applications

• Telecommunications & Wireless Infrastructure:
  • Used for connecting antennas, base stations, repeaters, and RF modules in 4G/5G networks.
  • Provides stable signal transmission with reduced attenuation compared with standard rigid cable alternatives.
• Broadcasting & Satellite Communication:
  • Applied in RF equipment connections, satellite systems, and broadcast transmission setups requiring high-frequency reliability.
• Industrial Automation & IoT Networks:
  • Supports wireless sensors, industrial gateways, and smart factory communication systems where durable RF connections are essential.
• Defense, Aerospace & Transportation Systems:
  • Used in communication equipment requiring vibration resistance, flexibility, and dependable signal integrity.
• Advantages Over Alternatives:
  • Greater installation flexibility than rigid coaxial cables
  • Improved signal protection compared with unshielded cables
  • Reduced maintenance requirements through durable construction
  • Cost-effective solution for complex RF system deployments

4. Competitive Advantages

• Quality Consistency: Manufactured under strict quality control standards to ensure stable impedance, low signal loss, and reliable RF performance.
• Supply Reliability: Supported by scalable production capacity and consistent availability for large infrastructure projects.
• Logistics Capability: Export-ready packaging with flexible shipment options for global industrial buyers.
• Price Competitiveness: Optimized manufacturing processes provide strong value without compromising transmission performance.
• Durability & Sustainability: Long service life reduces replacement frequency and material waste, supporting sustainable infrastructure development.
• Technical Support & Documentation: Available with technical specifications, performance reports, connector options, and customization support for engineering requirements.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity: Approximately 20 MT per standard container (subject to cable specifications, packaging method, and shipment requirements)
