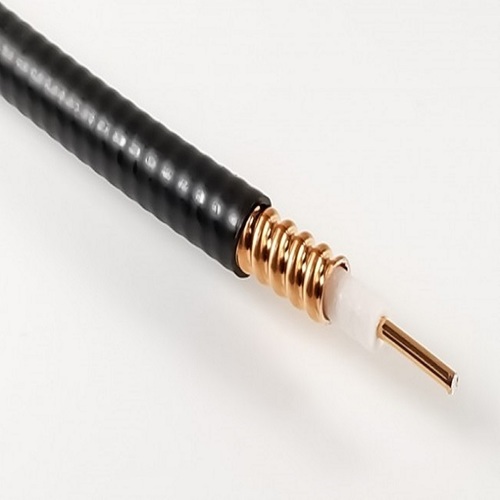

Low Loss Coax Cable 1 4 Inch

Description

1. Product Overview

Low Loss Coax Cable 1/4 Inch is a high-performance RF transmission cable engineered to deliver reliable signal integrity with minimal attenuation across telecommunications and wireless communication networks. Designed for base stations, antennas, distributed antenna systems (DAS), and industrial RF applications, it provides efficient power transfer and stable connectivity over long transmission distances. Its low-loss construction, mechanical durability, and consistent electrical performance make it a strategic component for modern communication infrastructure requiring high-frequency reliability.

2. Key Specifications & Technical Characteristics

• Material Components:
  • Inner conductor: Copper or copper-clad aluminum (CCA) for efficient signal transmission
  • Dielectric insulation: Low-loss polyethylene (PE) foam dielectric for reduced signal attenuation
  • Outer conductor: Corrugated copper or aluminum shielding layer for superior electromagnetic protection
  • Jacket: UV-resistant polyethylene (PE) or flame-retardant PVC protective outer sheath
• Grade:
  • RF low-loss coaxial cable grade
  • Suitable for commercial, industrial, and telecommunications-grade applications
• Physical Characteristics:
  • Cable type: 1/4 inch low-loss coaxial transmission cable
  • Diameter: Approximately 6–7 mm depending on design configuration
  • Color: Typically black outer jacket
  • Frequency range: Supports high-frequency RF and microwave transmission applications
  • Low attenuation design for improved signal efficiency
  • Flexible structure with high mechanical strength and environmental resistance
• Electrical Characteristics:
  • Characteristic impedance: 50 Ohms
  • Low insertion loss for long-distance RF transmission
  • High shielding effectiveness against electromagnetic interference (EMI)
  • Stable performance under varying temperature and environmental conditions
• Packaging Options:
  • Wooden reels, plastic drums, or customized coil packaging
  • Export-standard protective packaging for international transportation
• Shelf Life:
  • Typically 10+ years when stored in dry, temperature-controlled conditions away from direct sunlight and chemicals

3. Core Industrial Applications

• Telecommunications Infrastructure:
  Used in cellular base stations, 4G/5G networks, and wireless communication systems for connecting antennas, radios, and RF equipment.
• Broadcasting & Communication Systems:
  Applied in radio transmission, public safety communication networks, and specialized RF distribution systems requiring stable signal performance.
• Industrial Wireless Networks:
  Supports automation facilities, smart factories, and remote monitoring systems where reliable RF connectivity is essential.
• Defense, Aerospace & Transportation Communication:
  Utilized in secure communication platforms, navigation systems, and high-performance RF installations.
• Performance Advantages:
  • Lower signal loss compared with standard coaxial cables
  • Improved transmission efficiency over extended cable distances
  • Enhanced durability in outdoor and industrial environments
  • Reduced maintenance requirements and longer operational lifespan

4. Competitive Advantages

• Quality Consistency: Manufactured with controlled production processes to ensure stable impedance, attenuation performance, and dimensional accuracy.
• Supply Reliability: Supported by scalable production capacity and consistent availability for large infrastructure projects and OEM requirements.
• Logistics Capability: Available in export-ready reel packaging with flexible shipment solutions for global distribution.
• Price Competitiveness: Offers an optimized balance between transmission performance, durability, and total lifecycle cost compared with premium RF cable alternatives.
• Sustainability Benefits: Designed for long service life, reducing replacement frequency and minimizing material waste during network operations.
• Technical Support & Documentation: Available with product specifications, electrical performance data, quality certificates, and technical documentation for engineering approval and project integration.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity: Approximately 18–22 MT per 40-foot container (depending on reel size, packaging configuration, and shipping requirements)
