Fiber Patch Cord LC APC 1m

Description

1. Product Overview

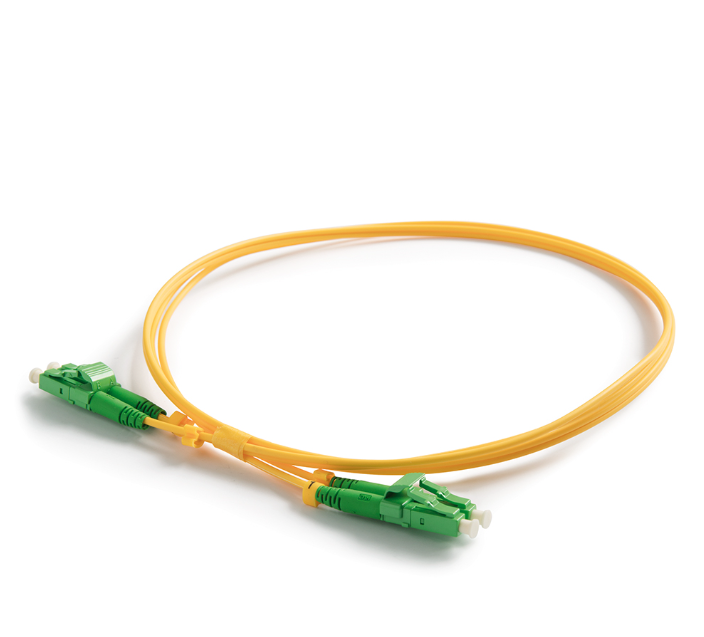

Fiber Patch Cord LC APC 1m is a high-performance single-mode fiber optic interconnect cable designed for reliable optical signal transmission in telecommunications, data centers, and industrial networking environments. Featuring LC/APC angled polish connectors, it minimizes back reflection and ensures superior signal integrity for high-speed optical communication systems. The product delivers stable connectivity, low insertion loss, and long-term durability, making it a critical component for modern fiber infrastructure expansion. Its precision manufacturing and global compatibility support efficient deployment in next-generation broadband and enterprise networks.

2. Key Specifications & Technical Characteristics

• Material Components:
  • Fiber core: Single-mode optical fiber (typically G.657A1/G.657A2 or equivalent)

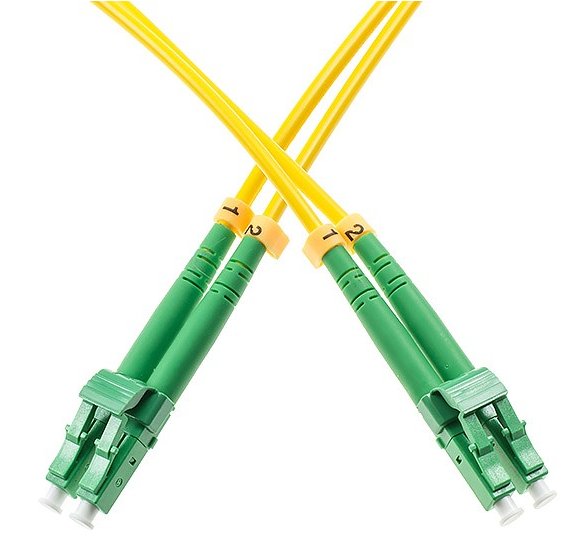

  • Connector type: LC/APC (Angled Physical Contact) duplex or simplex configuration
  • Ferrule material: Zirconia ceramic for precision alignment
  • Jacket material: Low-smoke zero-halogen (LSZH) or PVC flame-retardant outer coating
  • Strength member: Aramid yarn reinforcement for mechanical protection
• Optical Performance:
  • Fiber grade: Telecom-grade single-mode fiber
  • Wavelength compatibility: 1310 nm / 1550 nm
  • Insertion loss: ≤0.3 dB (typical)
  • Return loss: ≥60 dB (APC polished connector performance)
  • Transmission mode: Single-mode optical signal transmission
• Physical Characteristics:
  • Length: 1 meter standard configuration
  • Connector: LC/APC angled polish connector
  • Cable diameter: Typically 2.0 mm or 3.0 mm
  • Color: Usually yellow outer jacket for single-mode fiber identification
  • Operating temperature: Approximately -20°C to +70°C
  • High tensile strength and bend resistance for installation reliability
• Packaging Options:
  • Individually sealed protective bags
  • Bulk carton packaging for industrial procurement
  • Customized labeling and export packaging available
• Shelf Life:
  • 10+ years when stored under recommended conditions with protection from moisture, dust, and extreme temperatures

3. Core Industrial Applications

• Telecommunications Networks: Used in fiber-to-the-home (FTTH), broadband access networks, and carrier-grade optical communication systems requiring low signal loss and high reliability.
• Data Centers: Provides high-speed server, switch, and optical equipment interconnections where stable performance and minimal signal reflection are essential.
• Industrial Automation: Supports fiber-based control networks, factory communication systems, and harsh-environment data transmission applications.
• Enterprise IT Infrastructure: Enables reliable LAN/WAN fiber connectivity in offices, campuses, and commercial facilities.

Fiber Patch Cord LC APC 1m outperforms conventional copper connections and lower-grade fiber cables through superior bandwidth capability, reduced electromagnetic interference, and optimized optical performance. Its precision APC polishing technology improves network stability, reduces maintenance requirements, and supports cost-efficient long-term infrastructure operation.

4. Competitive Advantages

• Quality Consistency: Manufactured with precision optical alignment technology and strict quality testing to ensure stable insertion loss and reliable signal transmission.
• Supply Reliability: Scalable production capacity supports bulk procurement requirements for telecom operators, integrators, and infrastructure projects.
• Logistics Capability: Export-ready packaging, standardized dimensions, and efficient bulk shipment options enable global distribution.
• Price Competitiveness: Optimized manufacturing processes provide strong cost performance without compromising optical reliability.
• Sustainability Benefits: Durable materials and long service life reduce replacement frequency and electronic waste generation.
• Technical Support & Documentation: Available with product specifications, test reports, quality certifications, and customized technical support for industrial buyers.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 20 MT per standard 20-foot container (depending on packaging configuration and shipment requirements)
