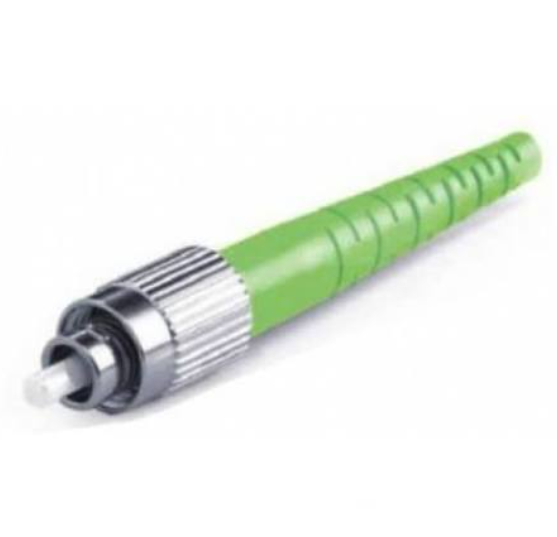

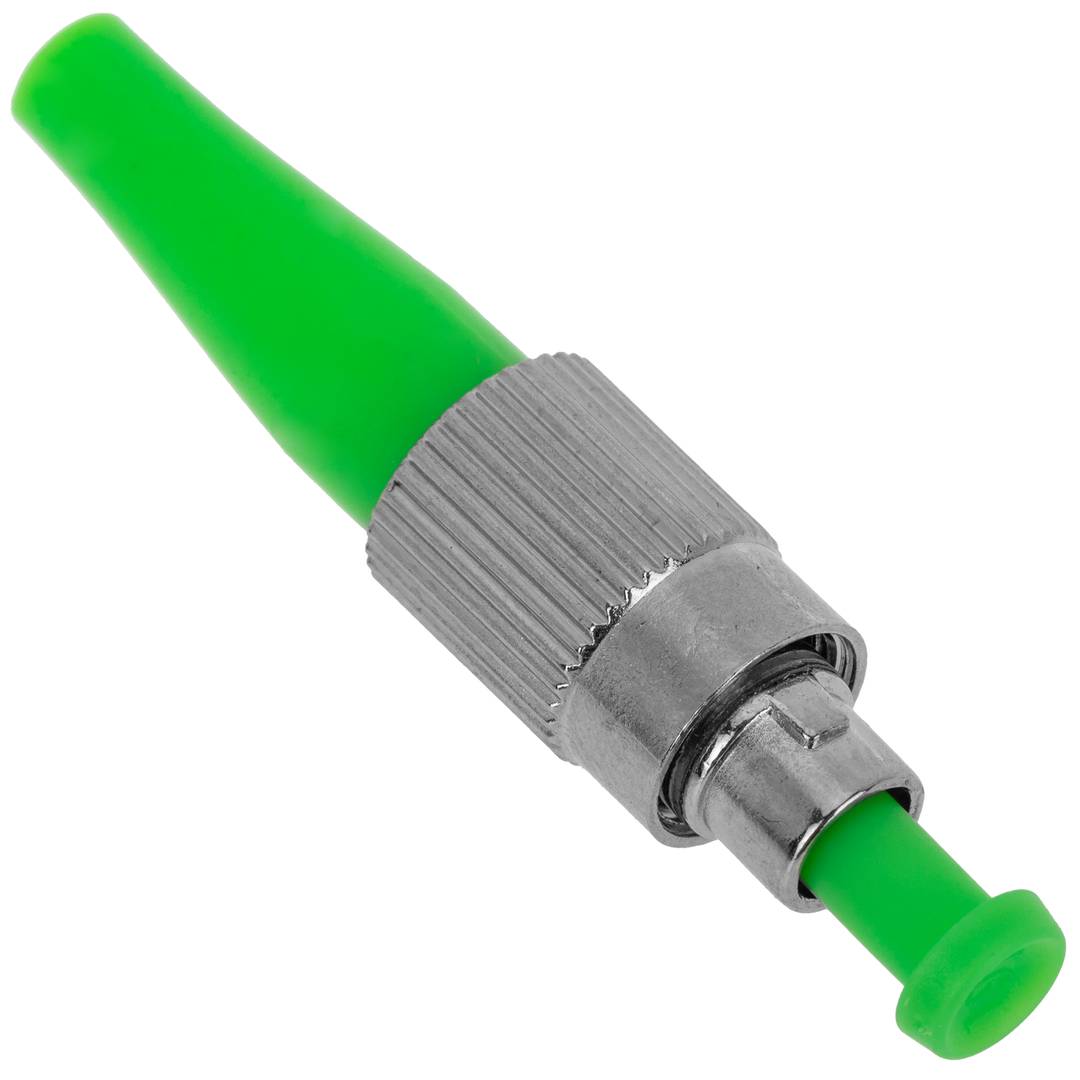

Fiber Connector FC APC

Description

1. Product Overview

The Fiber Connector FC APC is a high-precision fiber optic connector engineered with an Angled Physical Contact (APC) polished ferrule to deliver exceptionally low back reflection and stable optical signal transmission. It is widely used in telecommunications, fiber-to-the-home (FTTH), broadband, data center, and optical networking infrastructure where signal integrity is critical. Designed for long-term reliability, the connector provides excellent insertion loss performance, high mechanical durability, and consistent network stability. As global demand for high-speed optical communication continues to grow, the Fiber Connector FC APC serves as a strategic component for building high-performance and future-ready fiber networks.

2. Key Specifications & Technical Characteristics

• Material Components:
  • Zirconia ceramic ferrule
  • High-strength thermoplastic or metal connector housing
  • Precision stainless steel spring
  • High-performance polymer strain relief boot
• Connector Type: FC APC
• Polish Type: APC (8° Angled Physical Contact)
• Fiber Compatibility: Single Mode (OS1/OS2)
• Insertion Loss: ≤0.30 dB (Typical ≤0.20 dB)
• Return Loss: ≥60 dB
• Ferrule Diameter: 2.5 mm ceramic ferrule
• Operating Temperature: -40°C to +85°C
• Color: Green (APC standard)
• Mechanical Durability: Typically over 500 mating cycles
• Packaging Options:
  • Individual protective packaging
  • Bulk industrial packaging
  • OEM and private label packaging available
• Shelf Life: Not applicable under proper storage conditions

3. Core Industrial Applications

The Fiber Connector FC APC is extensively used across telecommunications, FTTH deployments, broadband service networks, optical transmission systems, CATV infrastructure, data centers, industrial communication networks, and testing laboratories requiring superior optical performance.

Primary operational applications include:

• FTTH passive optical network (PON) installations
• Optical distribution frames (ODF)
• Optical patch panels
• Fiber optic patch cords and pigtails
• Telecommunications backbone networks
• CATV optical transmission systems
• Data center fiber interconnections
• Precision optical measurement and testing equipment

Compared with conventional PC or UPC connectors, the FC APC connector significantly minimizes optical back reflection, resulting in cleaner signal transmission, improved network stability, lower transmission errors, and enhanced performance in high-speed and long-distance optical communication systems. Its rugged threaded coupling mechanism also provides superior vibration resistance and secure connections in demanding industrial environments.

4. Competitive Advantages

• Precision-manufactured ceramic ferrules ensure consistent optical performance and minimal insertion loss.
• Reliable large-scale production supports stable global supply for telecom operators, OEMs, and infrastructure contractors.
• Efficient international logistics with export-ready packaging for high-volume industrial shipments.
• Competitive pricing supported by cost-efficient manufacturing without compromising quality.
• Durable, reusable design reduces maintenance requirements and extends operational service life.
• Manufactured under strict quality control with complete technical documentation, inspection reports, and OEM customization support available.
• An excellent strategic sourcing solution for organizations expanding high-capacity fiber optic infrastructure worldwide.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity (20-ft Container): Approximately 20 MT
• Loading Capacity (40-ft Container): Approximately 26–28 MT
