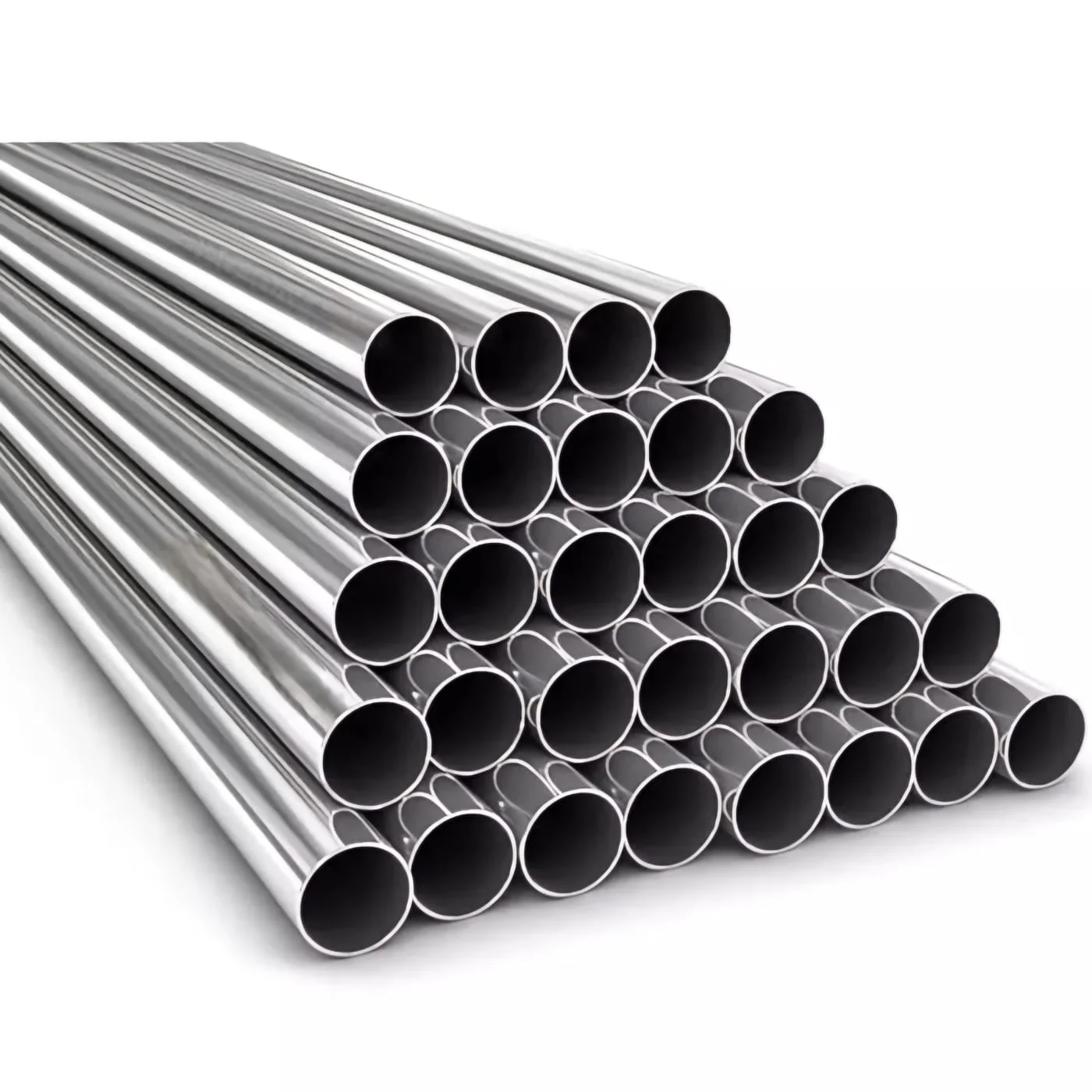

ERW Pipes

Description

1. Product Overview

ERW Pipes are high-strength, longitudinally welded steel tubes manufactured through high-frequency electric resistance welding, offering seamless-like uniformity without the premium cost. They serve as the backbone for critical fluid transport, structural frameworks, and energy infrastructure across oil & gas, construction, and automotive industries. The key value proposition lies in delivering superior dimensional accuracy, a smoother internal surface finish, and lower carbon footprint compared to seamless alternatives—enabling faster project execution at a 15–25% cost reduction. Strategically, ERW pipes are indispensable for global infrastructure modernization, balancing performance, scalability, and supply chain efficiency.

2. Key Specifications & Technical Characteristics

• Chemical Composition (per ASTM A53 / API 5L): Carbon (≤0.30%), Manganese (≤1.20%), Phosphorus (≤0.025%), Sulfur (≤0.025%), with optional micro-alloying (Cr, Ni, Mo) for high-pressure grades.

• Material Grades: Gr. B, X42, X52, X60, X65, X70 (API 5L); STKM 11A–13C, JIS G3444.

• Purity / Quality Level: 100% non-destructive testing (NDT) including eddy current or ultrasonic; zero through-weld defects.

• Physical Characteristics:

  • Outer Diameter: 21.3 mm – 660 mm (½″ – 26″)

  • Wall Thickness: 1.5 mm – 25.4 mm

  • Standard Length: 6 m, 12 m, or custom up to 18 m

  • Surface Finish: Bare, oiled, varnished, or 3PE/3LPP/FBE coated

• Packaging Options: Hexagon bundles (steel strapped) with plastic end caps; seaworthy export packing with moisture barrier.

• Shelf Life: Indefinite in dry, covered storage; coated variants retain integrity for 24+ months under standard conditions.

3. Core Industrial Applications

• Oil & Gas (Midstream): Used for natural gas, crude oil, and water injection lines. ERW pipes outperform seamless in consistent wall thickness, reducing turbulence and pressure drop in long-distance pipelines.

• Construction & Infrastructure: Load-bearing columns, piling foundations, scaffolding. ERW offers higher straightness and weldability, cutting on-site fabrication time by 20% vs. rolled-and-welded alternatives.

• Automotive & Heavy Equipment: Roll-over protection structures (ROPS), chassis components, driveshafts. Superior crush resistance and uniform elongation (≥25%) reduce weight while maintaining safety margins.

• Water & Wastewater: Potable water transmission, sewage force mains. Lower internal weld flash means less biofilm buildup and lower pumping energy costs over 30-year lifecycles.

4. Competitive Advantages

• Quality Consistency: 100% of coils sourced from ISO 9001:2015 mills; in-line weld annealing eliminates heat-affected zone brittleness. Dimensional tolerances meet API 5L PSL2 at no extra cost.

• Supply Reliability: Three geographically redundant production hubs (Asia, Middle East, Europe) ensuring <15-day lead time for standard grades, even during logistics disruptions.

• Logistics Capability: Containerized or break-bulk shipping with real-time GPS tracking; pre-shipment third-party inspection (SGS, BV, Intertek) available within 48 hours.

• Price Competitiveness: 12–18% lower than seamless equivalents on landed cost; volume-based quarterly pricing lock contracts to hedge raw material volatility.

• Sustainability: Manufactured using >95% recycled steel; ERW process emits 40% less CO₂ per ton than seamless pipe production (scrap-based EAF route). Full EPD documentation available.

• Technical Support: Free welding procedure specification (WPS) development; on-site failure analysis via metallurgical engineering team (response <24 hours).

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 metric tons (MT) per size and grade (approx. 500–800 pipes depending on diameter).

• Loading Capacity per 20ft Container: 20–22 MT (standardized bundle arrangement; 20ft DV container).

• Loading Capacity per 40ft Container: 24–26 MT (maximizing cubic utilization; 40ft HC preferred for lengths >12 m).

• Lead Time: 14–21 days from order confirmation for MOQ; 30 days for custom coating or non-standard diameters.

• Incoterms: FOB, CFR, CIF (major global ports: Houston, Rotterdam, Shanghai, Jebel Ali).
