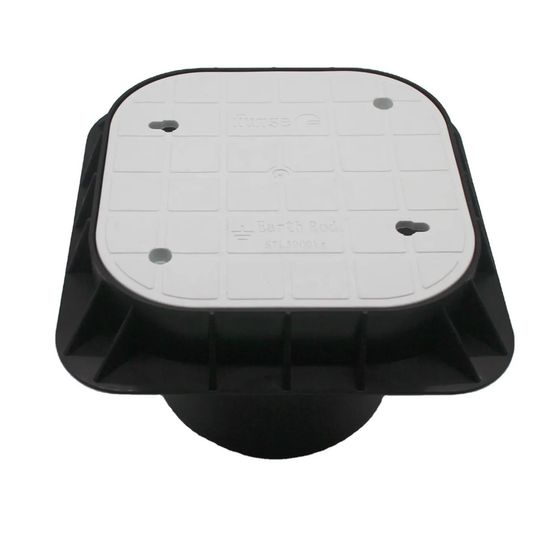

Earth pit inspection chamber — BS EN 62561-5

Description

1. Product Overview

Earth Pit Inspection Chamber — BS EN 62561-5 is a purpose-designed access enclosure used for the inspection, testing, and maintenance of earthing and lightning protection systems. Manufactured to meet the requirements of BS EN 62561-5, it provides secure protection for earth electrodes, test clamps, and connection points while allowing easy system verification and servicing. The product delivers long-term durability, mechanical protection, and reliable access in electrical grounding installations. As global infrastructure standards increasingly prioritize electrical safety, lightning protection, and compliance, earth pit inspection chambers are becoming essential components in industrial, commercial, and utility projects.

2. Key Specifications & Technical Characteristics

• Product Type: Earth electrode inspection chamber / earthing access pit
• Applicable Standard: BS EN 62561-5 (Lightning Protection System Components — Requirements for earth electrode inspection housings and earth electrode seals)
• Material Components:
  • High-strength polymer, polypropylene (PP), PVC, or reinforced composite materials
  • UV-resistant and weatherproof construction options available
  • Corrosion-resistant components suitable for long-term outdoor installation
• Grade & Compliance: Industrial-grade component designed for lightning protection and grounding applications
• Physical Characteristics:
  • Form: Cylindrical or square inspection chamber with removable cover
  • Color: Commonly black, grey, or green depending on specification
  • Structure: Impact-resistant body with secure locking or bolted cover options
  • Features: Access opening for inspection, testing, and maintenance of earth connections
  • Resistance: High resistance to moisture, chemicals, temperature variations, and mechanical impact
• Installation Compatibility: Suitable for copper, galvanized steel, and other approved earthing electrode systems
• Packaging Options:
  • Individual cartons or protective wrapping
  • Bulk palletized export packaging available
  • Customized packaging solutions for large infrastructure projects
• Shelf Life: Long service life; typically exceeds 20 years when installed under recommended environmental conditions

3. Core Industrial Applications

• Primary Industries:
  • Electrical power generation and distribution
  • Renewable energy projects (solar and wind farms)
  • Telecommunications infrastructure
  • Construction and commercial buildings
  • Industrial manufacturing facilities
  • Transportation infrastructure including railways and airports
• Operational Use Cases:
  • Provides protected access to earth electrodes for resistance testing and inspection
  • Houses earth bonding connections and test links in lightning protection systems
  • Enables routine maintenance without disturbing underground grounding installations
  • Supports compliance inspections for electrical safety regulations
• Performance Advantages:
  • Superior corrosion resistance compared with traditional metal enclosures
  • Lightweight design reduces installation time and labor costs
  • Robust construction protects critical grounding connections from physical damage
  • Enables faster testing and maintenance, improving system reliability and reducing downtime

4. Competitive Advantages

• Quality Consistency: Manufactured using controlled production processes to ensure dimensional accuracy, mechanical strength, and compliance with BS EN 62561-5 requirements.
• Supply Reliability: Available for large-scale infrastructure projects with consistent production capacity and export readiness.
• Logistics Capability: Optimized for bulk shipment, palletized loading, and international supply chain requirements.
• Price Competitiveness: Provides a cost-effective alternative to metal inspection chambers with lower maintenance requirements and extended service life.
• Sustainability Benefits: Polymer-based options offer corrosion resistance, reduced replacement frequency, and improved lifecycle sustainability.
• Technical Support & Documentation: Available with product specifications, compliance documentation, installation guidance, and quality certificates for engineering and procurement teams.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on chamber size, packaging configuration, and density)
