Exothermic welding kit CADWELD type — BS EN 62561-1

Description

1. Product Overview

The Exothermic Welding Kit CADWELD Type — BS EN 62561-1 is a complete grounding and bonding solution engineered to produce permanent, molecular electrical connections between copper conductors, grounding rods, reinforcing steel, and other metallic components. Utilizing an exothermic reaction, the kit creates high-integrity welds that deliver superior electrical conductivity and exceptional mechanical strength without relying on external power sources. Designed for critical earthing infrastructure, it is widely used in power transmission, telecommunications, railways, renewable energy, oil & gas, and industrial facilities where long-term reliability is essential. Compliant with BS EN 62561-1, this solution represents a strategic investment for organizations seeking maintenance-free grounding systems with maximum operational safety and lifecycle performance.

2. Key Specifications & Technical Characteristics

• Standard Compliance: BS EN 62561-1
• Connection Method: Exothermic molecular welding process

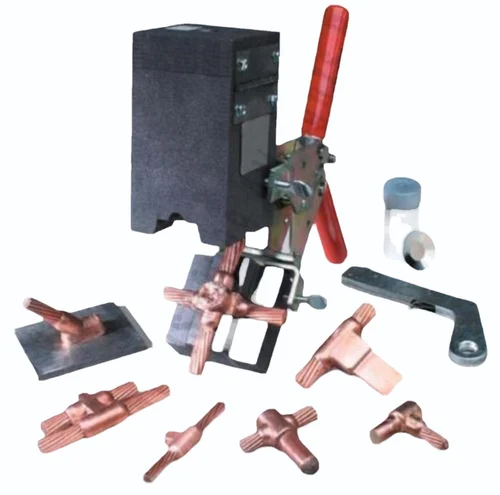

• Primary Components:

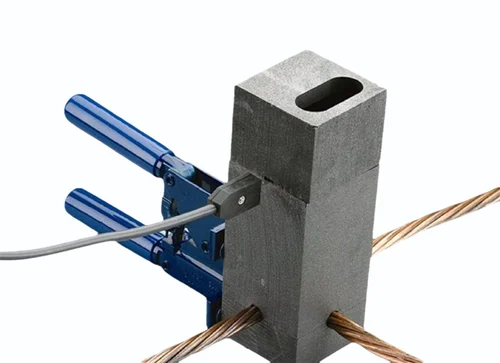

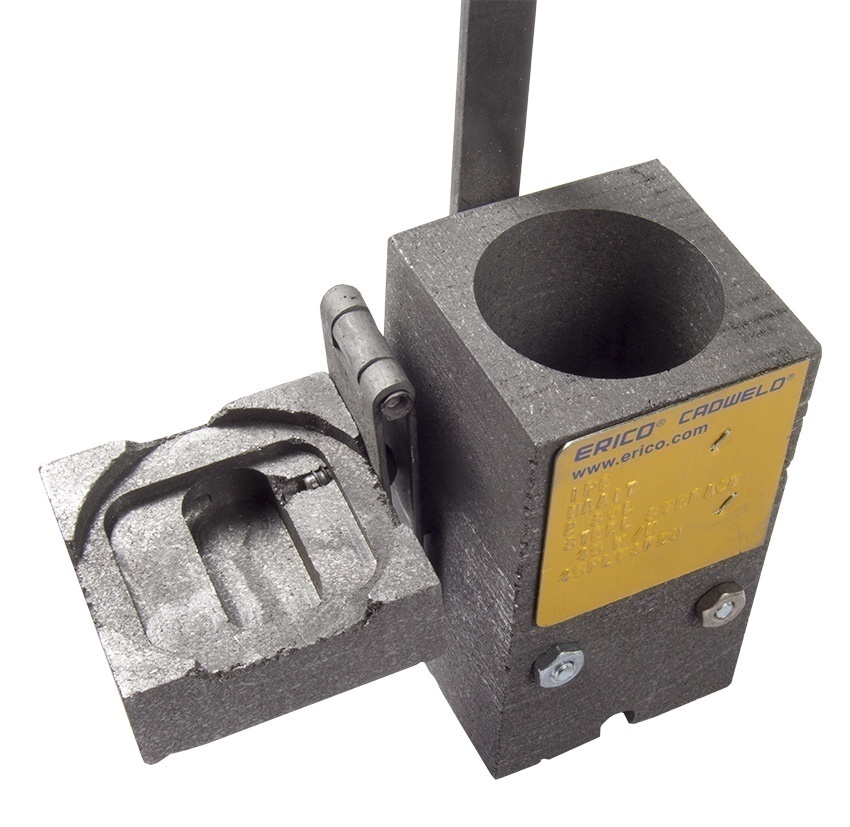

  • High-temperature graphite mold
  • Exothermic welding powder
  • Ignition starter material
  • Metal retaining disc
  • Flint igniter
  • Mold handle clamp
  • Cleaning brush and accessories
• Conductor Compatibility: Copper conductors, copper-clad steel conductors, grounding rods, reinforcing steel, structural steel
• Material Grade: Industrial-grade graphite mold with premium exothermic copper alloy welding material
• Finished Weld Characteristics:
  • Permanent molecular bond
  • Extremely low electrical resistance
  • High current carrying capability
  • Excellent corrosion resistance
• Physical Appearance:
  • Black graphite mold
  • Copper-colored weld deposit
  • Granular exothermic welding powder
• Packaging Options:
  • Individual welding kits
  • Project contractor kits
  • Industrial bulk supply
  • Export-grade packaging
• Shelf Life:
  • Welding powder: Typically up to 3 years when stored in dry, sealed conditions
  • Graphite molds: Long service life with proper maintenance

3. Core Industrial Applications

The Exothermic Welding Kit CADWELD Type is extensively used across electrical infrastructure, utilities, telecommunications, renewable energy installations, railway systems, airports, petrochemical facilities, mining operations, industrial plants, commercial buildings, and lightning protection projects.

Typical applications include permanent grounding conductor connections, earth rod bonding, cable-to-cable joints, cable-to-steel connections, reinforcing steel bonding, transformer grounding, substation earthing grids, telecommunications tower grounding, wind turbine grounding systems, solar farm earthing networks, and lightning protection installations.

Compared with mechanical clamps and compression connectors, exothermic welded joints provide a permanent molecular connection that will not loosen, corrode, or deteriorate under vibration, thermal cycling, or fault current conditions. The resulting connections offer superior conductivity, minimal maintenance requirements, extended service life, and lower total ownership costs for critical grounding infrastructure.

4. Competitive Advantages

• Manufactured in accordance with BS EN 62561-1 for dependable international quality compliance
• Produces permanent molecular electrical connections with outstanding conductivity
• Consistent welding quality for repeatable field performance
• Excellent resistance to corrosion, oxidation, vibration, and environmental degradation
• Suitable for high fault-current applications and long-term grounding reliability
• Reliable global supply capability for infrastructure, utility, and EPC projects
• Export-ready logistics with secure industrial packaging for international shipments
• Competitive pricing for bulk procurement and large-scale construction projects
• Eliminates maintenance associated with mechanical grounding connectors, reducing lifecycle costs
• Comprehensive technical documentation, installation guidance, and product support available for engineering and procurement teams

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity (20-ft Container): Approximately 20–24 MT, depending on kit configuration, packaging dimensions, and shipping regulations.
