Direct-Drive Motors (DDR)

Description

1. Product Overview

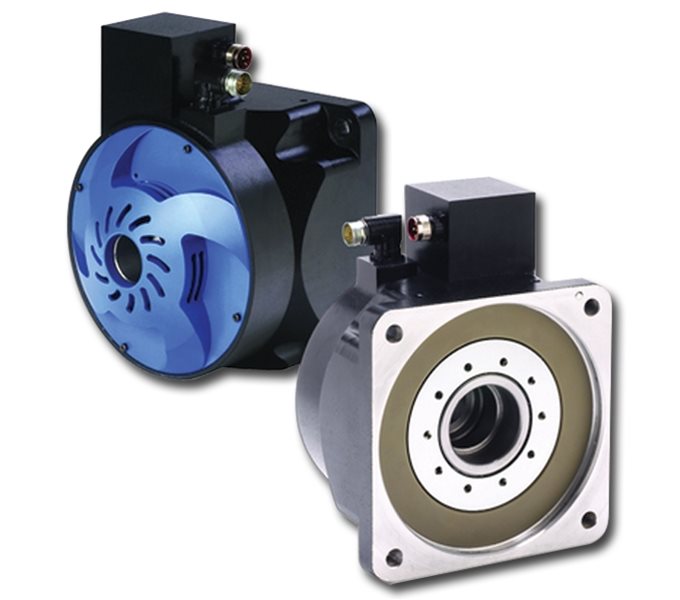

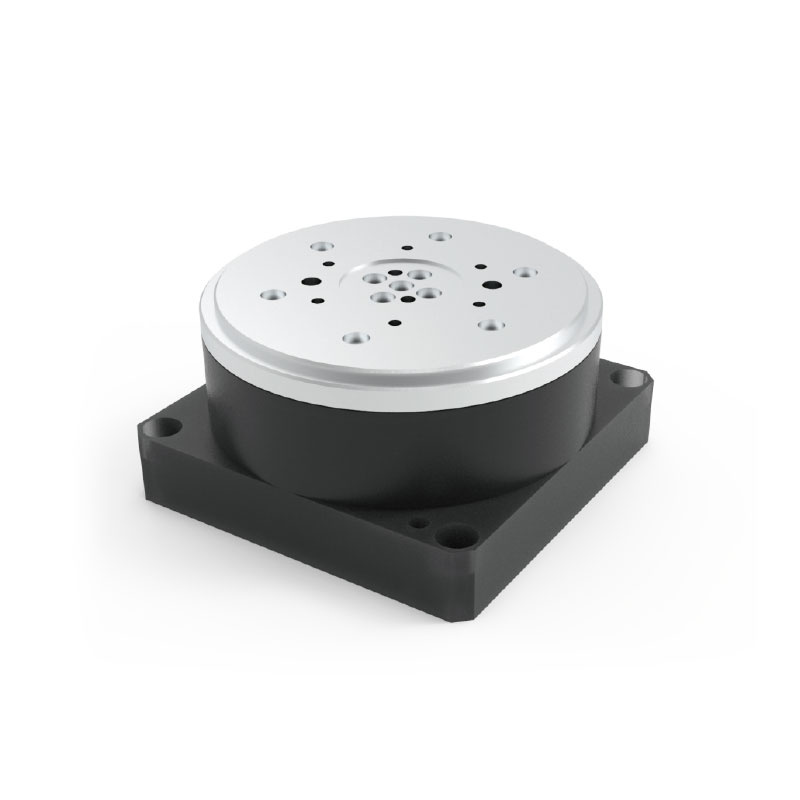

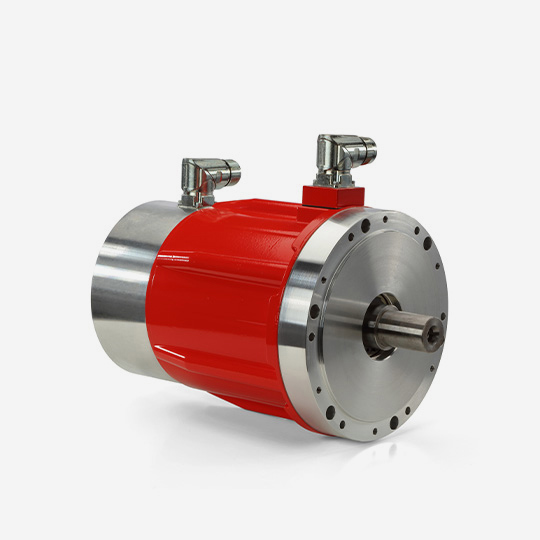

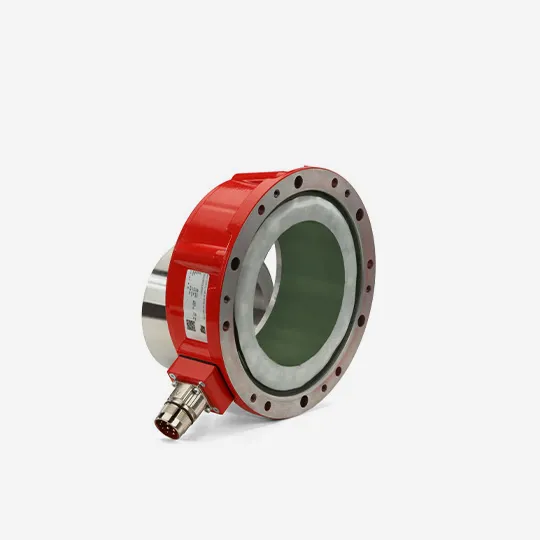

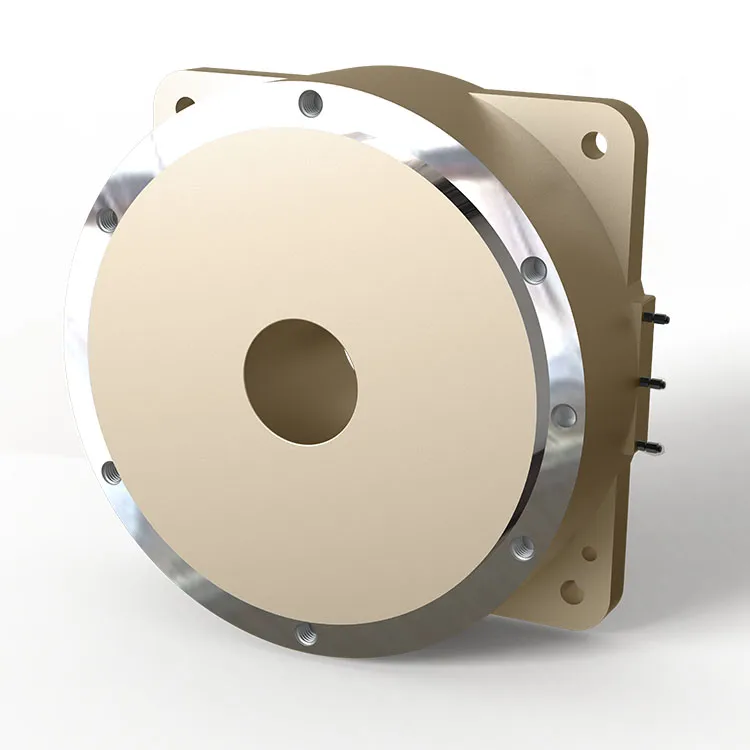

The Direct-Drive Rotary (DDR) Motor is a high-torque, precision motion control actuator that eliminates mechanical transmission components such as gearboxes, belts, and pulleys by directly coupling the load to the motor rotor. It is primarily used in demanding industrial automation applications requiring zero backlash, high accuracy, and maintenance-free operation, including semiconductor manufacturing, precision robotics, and CNC rotary tables. The key value proposition is a step-change improvement in machine throughput, positioning accuracy, and long-term reliability—directly reducing total cost of ownership (TCO) by up to 40% compared to conventional servo-gearbox systems. Strategically, DDR motors are critical for Industry 4.0 adoption, enabling smarter, more compact, and highly responsive production lines where downtime and inaccuracy are unacceptable.

2. Key Specifications & Technical Characteristics

• Motor Type: Permanent magnet synchronous (3-phase brushless)

• Peak Torque Range: 5 Nm – 5,000+ Nm (depending on frame size)

• Continuous Torque Range: 2 Nm – 2,500 Nm

• Maximum Speed: 100 – 800 rpm (high-torque variants available up to 1,500 rpm)

• Position Accuracy (Absolute Encoder): ≤ ±5 arc-sec (optical encoder) / ≤ ±30 arc-sec (magnetic)

• Repeatability: ≤ ±1 arc-sec

• Maximum Radial Load: 2,000 – 50,000 N (bearing-dependent)

• Maximum Axial Load: 1,000 – 25,000 N

• Feedback System: High-resolution sine-cosine encoder (absolute or incremental) + Hall sensors

• Protection Class (Standard): IP40 (IP64/IP65 optional with sealing kit)

• Thermal Protection: Integrated PTC thermistor or KTY84-130

• Winding Insulation Class: Class F (155°C) / Class H (180°C) optional

• Flange Mounting Standard: IEC 60072-1 / custom bolt patterns available

• Packaging Options: Anti-static foam + vacuum-sealed desiccant lined crate; individual motor in heavy-duty carton + export wooden pallet

• Shelf Life: 5 years (rotor demagnetization <1%; storage at -20°C to +60°C, <90% RH non-condensing)

3. Core Industrial Applications

• Semiconductor Wafer Handling: Direct-drive rotary stages for wafer pre-alignment and inspection. Why better: Zero backlash and sub-arcsec repeatability eliminate wafer misalignment; no mechanical wear reduces particle generation (Class 1 cleanroom compatible).

• CNC Rotary Tables (5-axis machining): Direct integration into milling centers for complex contouring. Advantage: 3–5× higher stiffness vs. worm-gear drives; no periodic backlash compensation; higher acceleration (up to 10 g) reduces cycle times by 25–30%.

• Collaborative & Industrial Robotics: Joint actuation for robot arms (especially J1–J4 axes). Benefit: Maintenance-free operation over 30,000+ hours; higher torque density allows slimmer robot designs; programmable torque limits enable safe human-robot collaboration.

• Pharmaceutical & Medical Automation: High-speed vial filling turntables and diagnostic instrument rotary axes. Outcome: Cleanable, silent operation (no gearbox noise); precise dose control via direct torque regulation; no lubricant contamination risk.

• Defense & Aerospace Gimbal Systems: Payload stabilization for EO/IR turrets. Why chosen: Near-instantaneous torque response (<0.5 ms) and absence of mechanical resonance modes, enabling 0.01° stabilization under high vibration.

4. Competitive Advantages

• Quality Consistency: 100% of motors undergo 12-hour burn-in and 32-point functional test (torque ripple <1%, back-EMF symmetry >98%). Zero-defect policy with ISO 9001:2025 and IATF 16949-certified lines.

• Supply Reliability: Dual-source raw magnet (NdFeB) and laminations (M270-35A) with 6-month buffer stock. Typical lead time 4–6 weeks ARO; expedite 2-week available.

• Logistics Capability: Global warehousing (Asia, EU, NA) with real-time tracking via digital freight platform. Anti-corrosion packaging certified for 6-month ocean transit.

• Price Competitiveness: 15–25% lower cost per Nm vs. premium European brands while exceeding their torque ripple spec. Volume discounts extended to system integrators and OEMs.

• Sustainability: 98% recyclable components (copper, aluminum, steel); 0.5% annual magnet loss warranty supports repair instead of replacement. RoHS, REACH, and Conflict Mineral compliant.

• Technical Support: Full CAD models (STEP/IGES), winding customization, thermal simulation reports, and on-call field application engineering (response <24 hours globally).

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT (approx. 450–600 units depending on frame size; contact for fractional MOQ pilot runs)

• Loading Capacity (per 20FT container): 20 MT net (28–32 pallets; 620–850 units standard mixed assortment)

• Loading Capacity (per 40FT HC container): 26 MT net (42–48 pallets; 1,200–1,650 units)

• Payment Terms: LC at sight (irrevocable, confirmed) or TT 30% deposit / 70% against BL copy for first three orders; open account for qualified strategic partners.

• Incoterms: EXW (Shanghai / Rotterdam / Houston hub) or CIF any major world port. Partial container consolidation available for trial orders.
