Curtain Wall Systems

Description

1. Product Overview

Curtain Wall Systems are non-structural, high-performance external cladding solutions engineered for commercial skyscrapers, corporate headquarters, and institutional buildings. These systems manage air, water, wind, and seismic loads while transferring dead loads to the primary building structure. The key value proposition lies in accelerating building envelope completion by 40% versus traditional masonry, reducing structural dead load by up to 60%, and enabling architectural distinction without compromising energy performance. Strategically, they are critical to high-rise urban development, offering a repeatable, code-compliant façade solution that directly impacts asset valuation and occupant comfort.

2. Key Specifications & Technical Characteristics

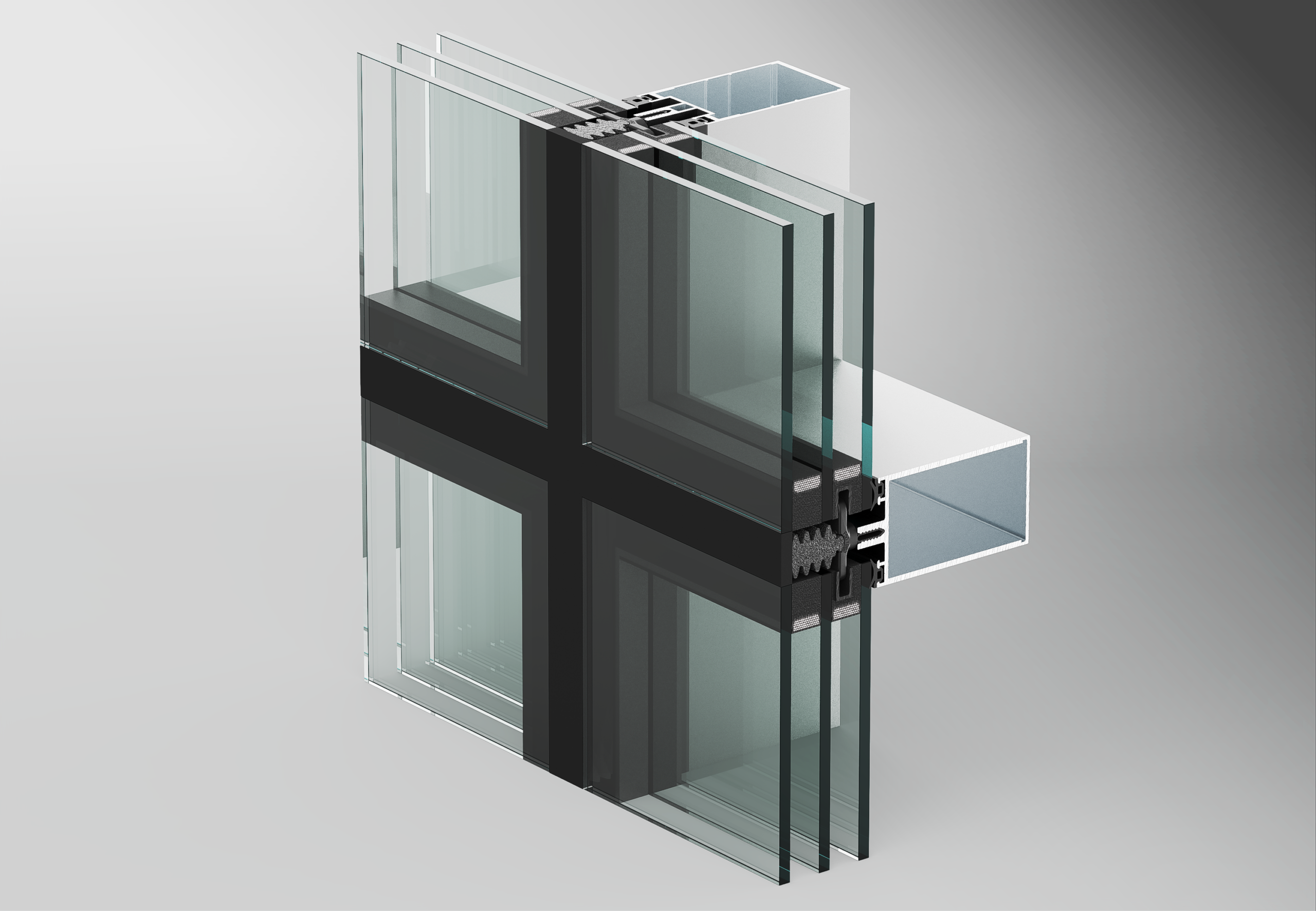

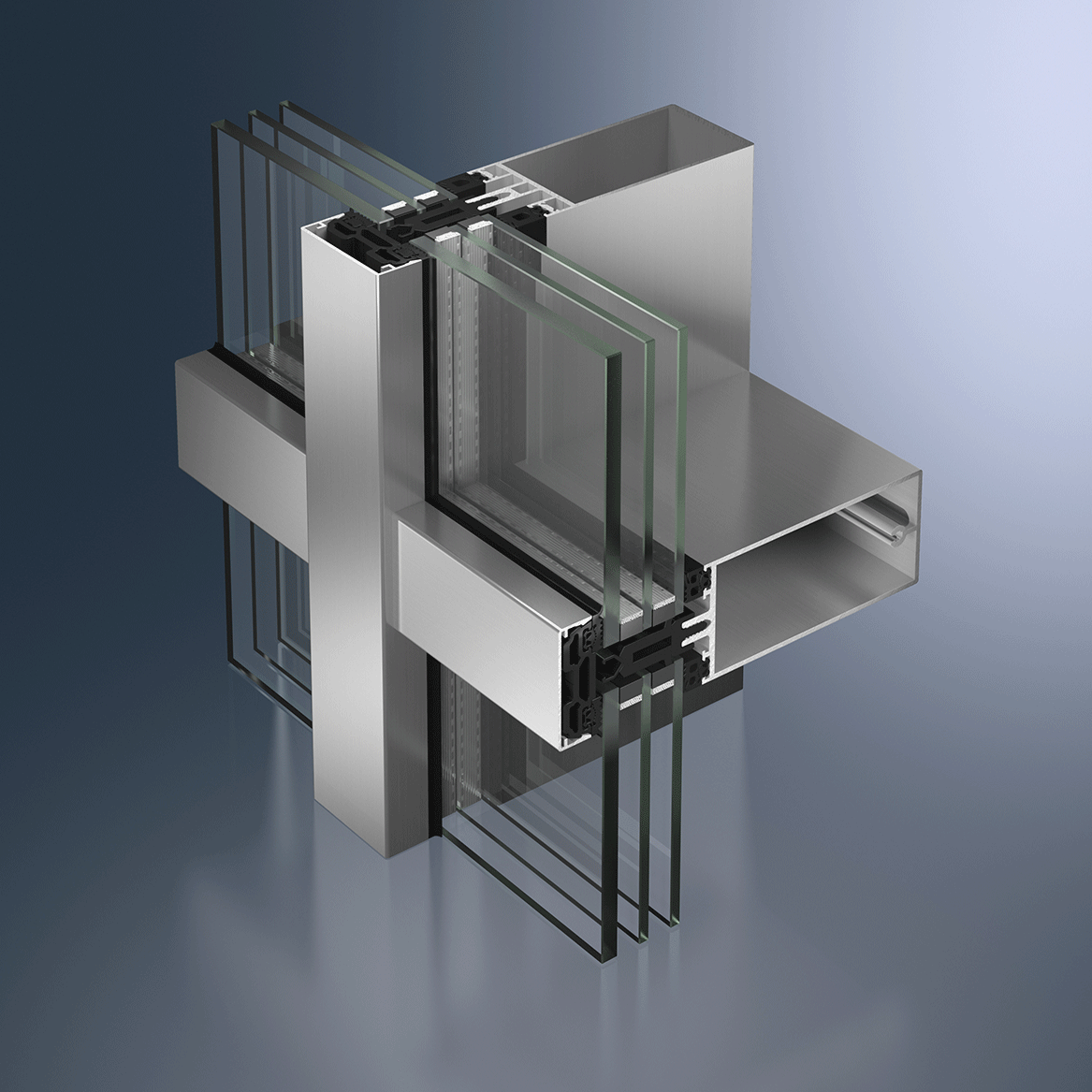

• Material Components: 6063-T5 / T6 aluminum alloy mullions and transoms; double or triple low-E insulating glass (IGU) with argon fill; thermally broken polyamide 6.6 strut inserts (≥25 mm break); EPDM or silicone wet-seal gaskets.

• Grade / Purity: Commercial structural grade to AAMA 501, ASTM E283, E331, E1105, and CW-CT (curtain wall cycling test) standards.

• Physical Characteristics:

  • Form: Stick-built or unitized modular panels

  • Color: Mill finish, clear anodized (Class I), or powder-coated (AAMA 2604/2605)

  • Unitized panel depth: 65 mm – 250 mm

  • Glazing pocket depth: 16 mm – 24 mm

  • Density: ~2.70 g/cm³ (aluminum framing only)

• Packaging Options: Export-wrapped steel pallets for unitized modules; shrink-wrapped bundles for stick components; each layer separated with foam padding.

• Shelf Life: Indefinite for aluminum framing (store in dry, covered conditions). Sealed IGU shelf life: 5 years from date of manufacture.

3. Core Industrial Applications

• Primary Industries: Commercial real estate development, airport infrastructure, hospital construction, and university campus expansion.

• Operational Use Cases:

  • High-rise office towers (>30 stories) – unitized systems allow one-floor-per-day installation.

  • Atrium and sky-lobby enclosures – point-fixed structural glazing variants eliminate visible steel.

  • Extreme-climate façades (e.g., desert or sub-arctic) – thermally broken systems reduce condensation risk and U-value to ≤1.0 W/m²K.

• Performance Advantages:

  • 50% faster installation than back-masonry + punched windows (stick system: 3–4 weeks/floor; unitized: 1 day/floor).

  • 40% lower structural steel cost due to reduced dead load.

  • AAMA 501.1 dynamic water penetration resistance (15 psf) – eliminates leak callbacks.

4. Competitive Advantages

• Quality Consistency: Every batch of aluminum profiles is ISO 9001:2025 certified with 100% CMM verification; glass supplied with 12-month broken-seal warranty.

• Supply Reliability: Regional stocking hubs (North America, EU, GCC, SEA) with 48-hour emergency replenishment for standard profiles.

• Logistics Capability: In-house fleet for oversized glass transport; shock‑logged crates with impact‑indicating labels.

• Price Competitiveness: Volume-driven procurement of raw aluminum enables pricing 12–18% below European tier-1 brands for equivalent specification.

• Sustainability: Minimum 85% recycled-content aluminum for non‑visible components; fully recyclable end-of-life; EPD (Environmental Product Declaration) available upon request.

• Technical Support: Dedicated BIM families (Revit, ArchiCAD), structural calc stamping (PE available per region), on‑site installation training for contractor crews.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 MT (mixed profile lengths and glass sizes within one shipment)

• Loading Capacity: 22 MT per standard 40-ft high-cube container (unitized panels packed collapsed; glass vertical in A‑frames)
