ACP Panels

Description

1. Product Overview

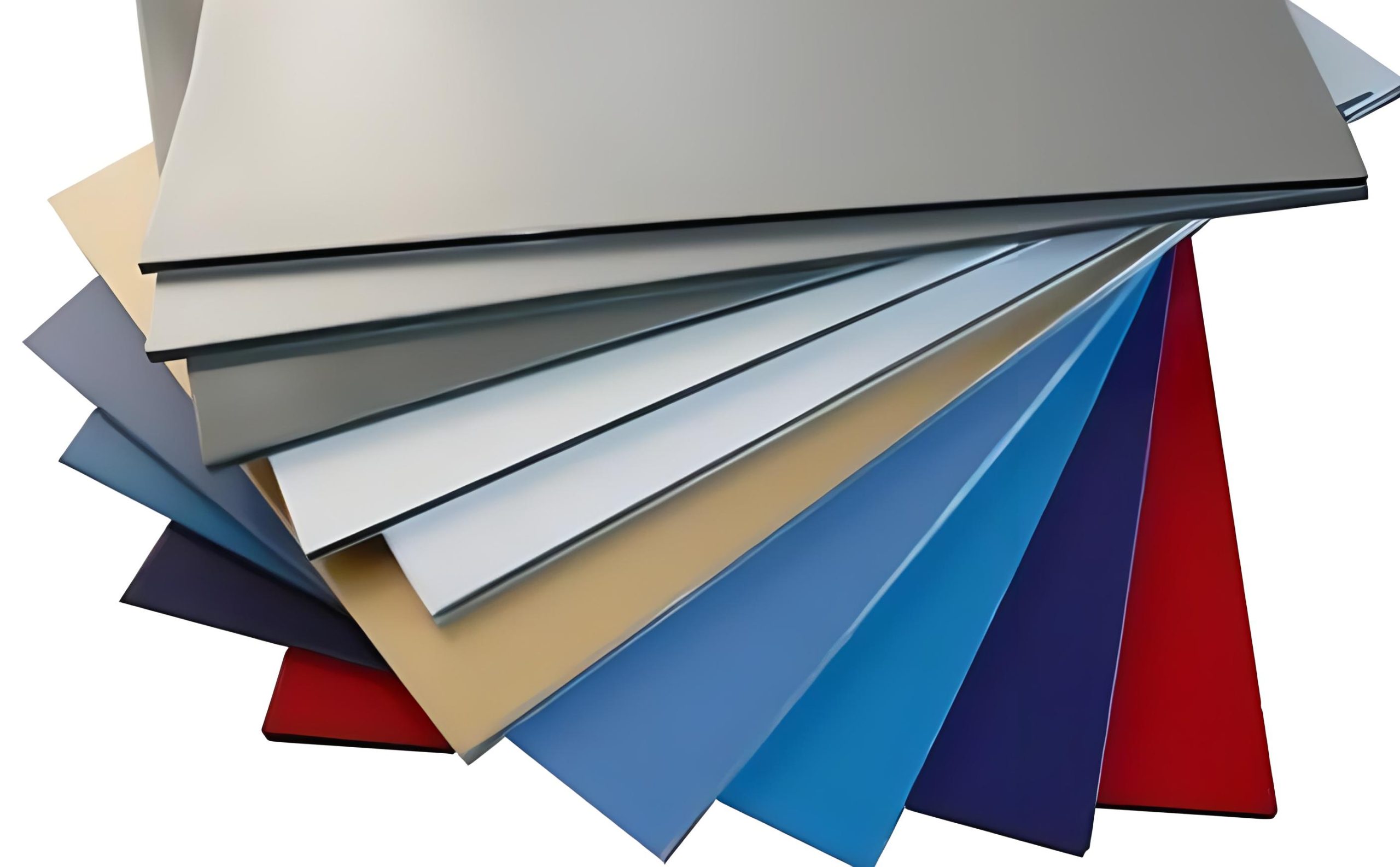

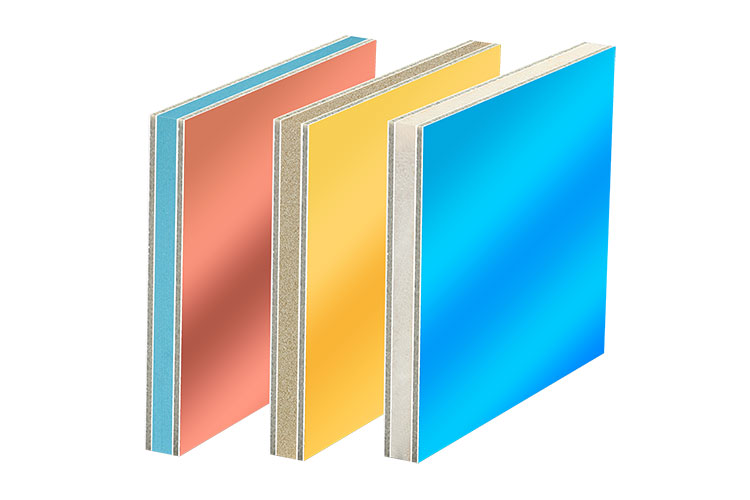

ACP Panels are rigid, lightweight, sandwich-structured sheets composed of two pre-painted aluminum coils bonded to a non-toxic polyethylene (LDPE) core. They are primarily used for architectural building facades, interior cladding, and signage systems requiring high flatness and durability. The key value proposition lies in delivering superior weather resistance, thermal insulation, and design flexibility at a significantly lower weight than solid metal sheets. Strategically, ACP panels are the global standard for cost-efficient, high-speed building envelopes, bridging the gap between premium curtain walls and traditional masonry.

2. Key Specifications & Technical Characteristics

• Material Components: 0.3–0.5 mm thickness AA1100 or AA3003 aluminum alloy skins (top coated with PVDF or FEVE resin); LDPE (Low-Density Polyethylene) fire-retardant or standard core.

• Purity & Grade: Aluminum skins: H16 temper; Core: ISO 1183 compliant, <5% ash content.

• Physical Characteristics:

  • Form: Flat rigid sheets

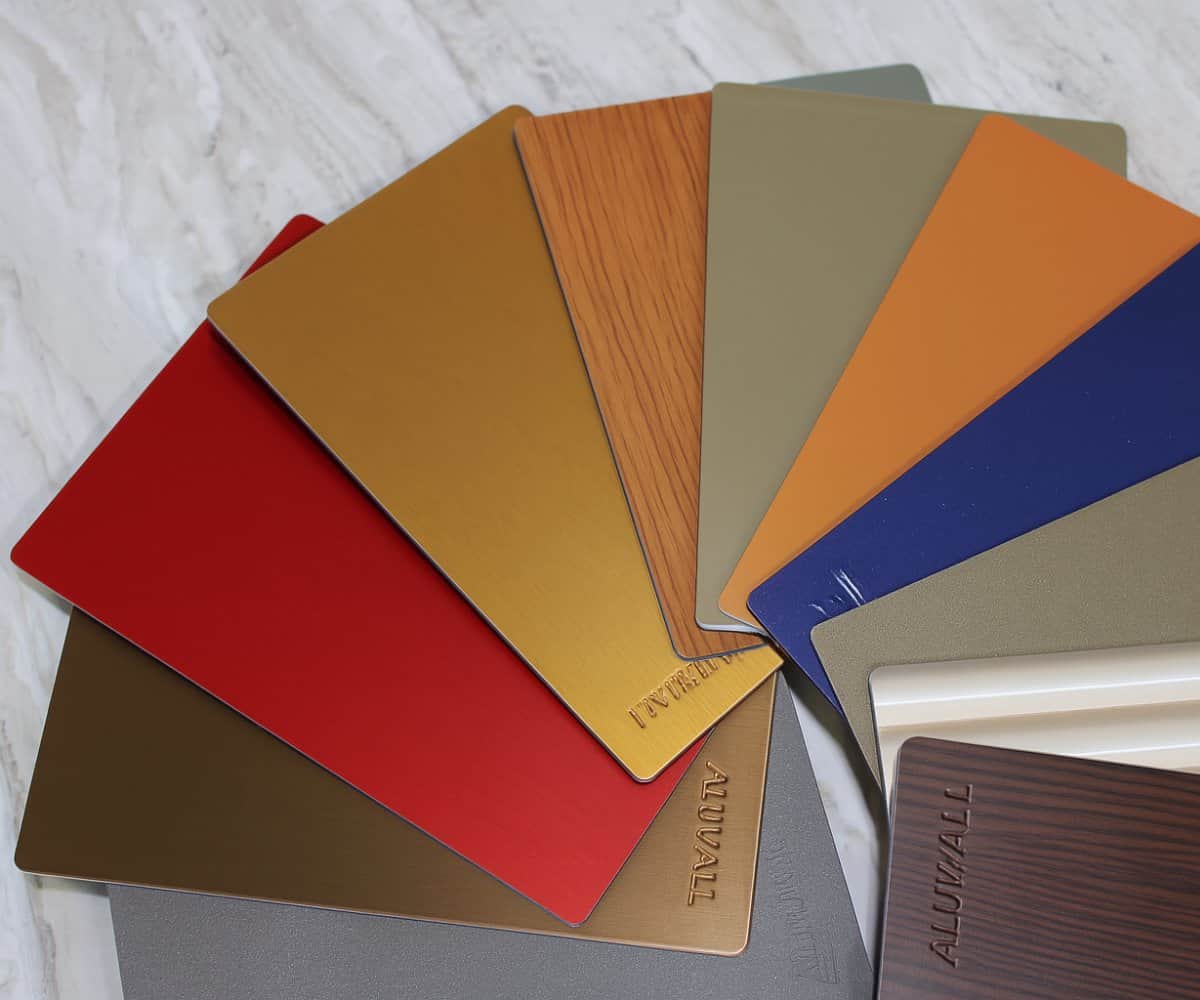

  • Color: RAL, Pantone, or custom metallic/wooden/matte finishes

  • Thickness: 3mm, 4mm, 6mm

  • Width: 1000mm, 1250mm, 1500mm

  • Density: Core ~0.92 g/cm³; Panel overall ~3.7 kg/m² (4mm panel)

• Packaging Options: Anti-scratch PE film interleaving + kraft paper + wooden pallets (export-certified, heat-treated).

• Shelf Life: 24 months in original, dry, indoor storage (UV-sensitive only when uncoated).

3. Core Industrial Applications

• Building & Construction (Facades): Ventilated curtain walls, column covers, canopies. Performs better than solid aluminum due to 60% lower weight, reducing structural steel costs and installation labor by up to 40%.

• Transportation Infrastructure: Tunnel linings, airport interiors, metro stations. Superior flatness and class-A fire-rated cores (e.g., FR grade) outperform PVC-based alternatives in smoke density testing (≤75%).

• Industrial Signage & Wayfinding: Large-format cut letters, backlit billboards. The polyethylene core allows clean CNC routing without delamination—unlike solid HDPE or wood.

• Clean Environment Cladding: Pharmaceutical & food processing plant interiors. Non-absorbent, mold-resistant, and cleanable with standard industrial detergents.

4. Competitive Advantages

• Quality Consistency: Continuous coil coating ensures <0.05 mm thickness variation across 2,000 m² of panels—verified via ISO 9001:2025 and ASTM E84 certification.

• Supply Reliability: 3 dedicated production lines with 24/7 uptime; 98.5% on-time-in-full (OTIF) rate to 40+ countries.

• Logistics Capability: Double-bubble wrap + edge protectors guarantee zero transit damage for LCL and FCL shipments.

• Price Competitiveness: Vertically integrated from aluminum coil slitting to lamination, removing 2 intermediary margins vs. traders.

• Sustainability: 100% recyclable core and skins; panels can be delaminated mechanically; low-VOC coatings compliant with LEED v4.1.

• Technical Support: Full BIM (Building Information Modeling) .rfa files, structural wind-load calculation sheets, and installation pattern guides provided with every PO.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 500 m² (mix-and-match colors allowed)

• Bulk (20 MT) Loading Capacity: 20 MT ≈ 5,400 m² of 4mm panels (fits 1 x 20ft container, maximizing payload to 20.2 MT)

• Standard Lead Time: 15 days ex-works for standard colors; 21 days for custom RAL/metallic finishes
