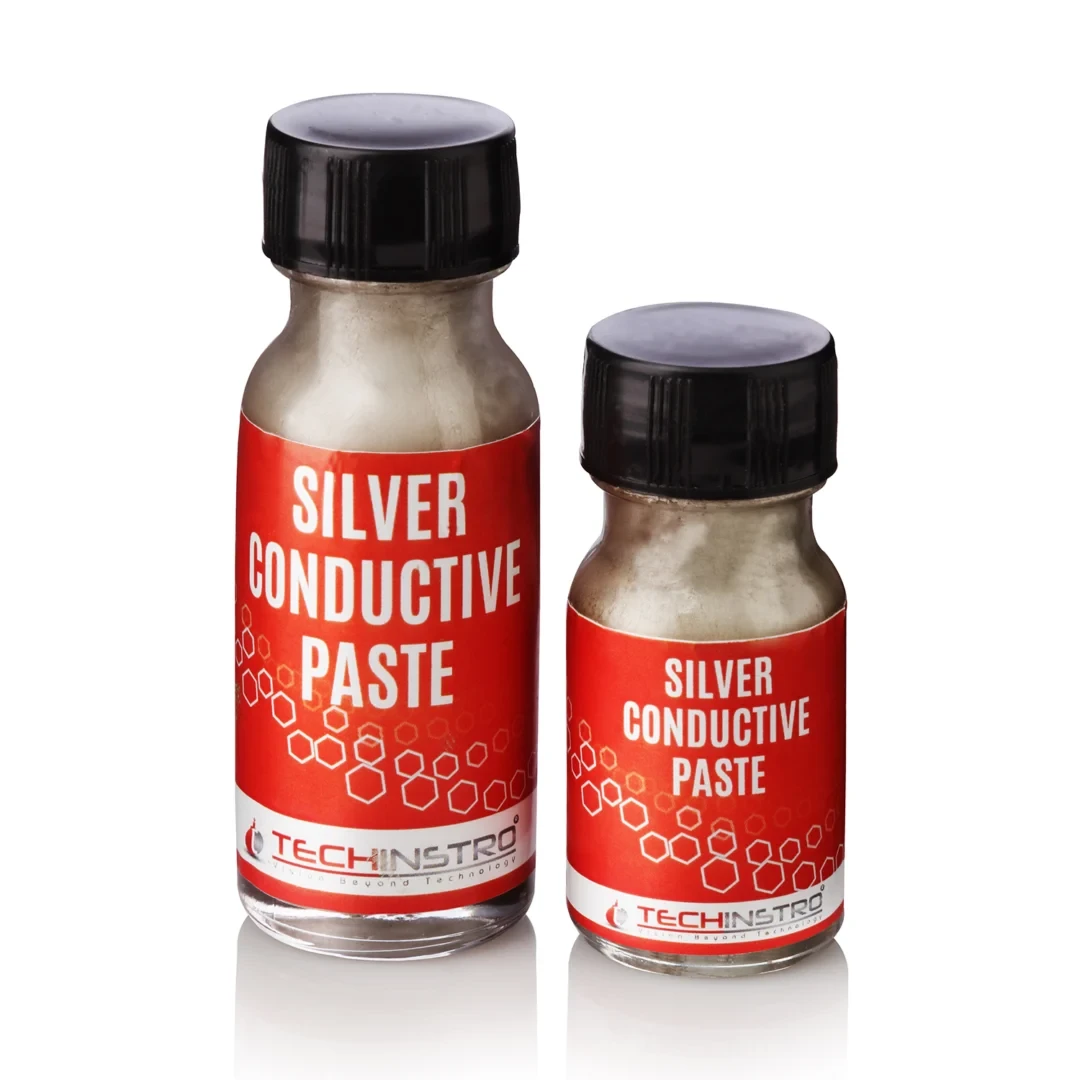

Conductive Silver Paste (CSP-13)

Description

1. Product Overview

Conductive Silver Paste (CSP-13) is a high-purity, thermoset silver-based conductive material engineered for low-resistance electrical interconnects in advanced electronics manufacturing. Its primary industrial use lies in the production of photovoltaic cells, membrane switches, and high-frequency semiconductor components. The key value proposition is exceptional volume resistivity (<5 mΩ/sq/mil) combined with superior screen-printability, enabling faster throughput and lower defect rates. As global demand for renewable energy and miniaturized electronics accelerates, CSP-13 offers a strategically critical, cost-stable alternative to volatile spot-market silver pastes.

2. Key Specifications & Technical Characteristics

• Chemical composition: Silver flake/powder (75–82% solid content) + thermosetting epoxy resin system with proprietary solvent blend

• Purity level: Silver content ≥99.9% (trace metals <100 ppm)

• Physical characteristics:

  • Form: Viscous, shear-thinning paste

  • Color: Silver-gray

  • Particle size: D90 < 10 µm (D50 = 3–5 µm)

  • Viscosity: 25,000–45,000 cP (Brookfield, spindle 7 @ 10 rpm, 25°C)

  • Volume resistivity: ≤ 4.5 mΩ/sq/mil (cured)

  • Density: 2.8–3.2 g/cm³

• Packaging options: 1 kg sealed jars, 5 kg pails, 20 kg drums, custom IBC totes

• Shelf life: 12 months from manufacture (stored 5–25°C, unopened, humidity <70%)

3. Core Industrial Applications

• Primary industries: Photovoltaics (mono & poly-Si cells), automotive electronics (defroster lines, sensor interconnects), medical electrodes, flexible printed circuits, RFID antennas

• Specific operational use cases:

  • Front-side busbar and finger printing for solar cells → achieves <0.5% line spreading

  • Membrane switch silver crossover circuits → >10⁶ actuation cycles without resistance drift

  • EMI shielding gaskets → 70–80 dB attenuation from 30 MHz to 1 GHz

• Performance advantages over alternatives:

  • Superior adhesion (cross-hatch ≥4B) vs. common copper-based pastes

  • Lower cure temperature (120–150°C) vs. traditional silver-glass frits (550°C+)

  • Reduced silver migration due to proprietary organic stabilizer → extends component life 2–3x in humid environments

• Efficiency/cost gain: 18% faster printing speed (150 mm/s) lowers cell reject rate by 40% compared to generic CSPs

4. Competitive Advantages

• Quality consistency: Lot-to-lot viscosity variation <±8% (industry average: ±15%); each batch undergoes XRF silver assay and 3‑point resistivity mapping

• Supply reliability: Dual-sourced silver feedstock + 6-month rolling buffer stock at regional hubs (Rotterdam, Shanghai, Houston)

• Logistics capability: Temperature-controlled export packaging with real-time IoT monitoring; <72‑hour dispatch for MOQ orders

• Price competitiveness: Direct mine-to-paste integration removes 2 intermediary markups; volume pricing from $580–$720/kg depending on silver LME fixing

• Sustainability: 100% silver recycled content option available (CSP-13R); RoHS, REACH, and Conflict Mineral compliant

• Technical support: Free process optimization kit (stencil design, cure profile) + 24‑h failure analysis via electron microscopy

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 kg (4 x 5 kg pails) for first-time buyers; 100 kg for recurring contract pricing

• BULK 20 MT loading capacity:

  • 20 ft standard container → 20 MT net (100 x 200 kg drums on pallets)

  • 40 ft high-cube → 20 MT possible, but typically uses 20 ft for stability

• Palletization: 1,000 kg net per pallet (strapped + stretch-wrapped + desiccant bags)

• Lead time: 7–14 days ex-warehouse (regional hub) or 21–28 days ex-works (Asia plant)
