Compressor air filter element

Description

1. Product Overview
   Compressor air filter element — a precision-engineered filtration cartridge designed to remove particulate matter, oil aerosols, and condensate from compressed air systems. It protects downstream pneumatic equipment, instrumentation, and process lines by delivering ISO-grade compressed air quality while minimizing pressure drop. The element’s key value proposition is reliable contaminant removal with long service life, reducing downtime and maintenance costs for industrial operators. Strategically, this product is critical for manufacturers, energy operators, and process industries that require consistent compressed air quality to maintain product integrity, equipment uptime, and regulatory compliance.

2. Key Specifications & Technical Characteristics

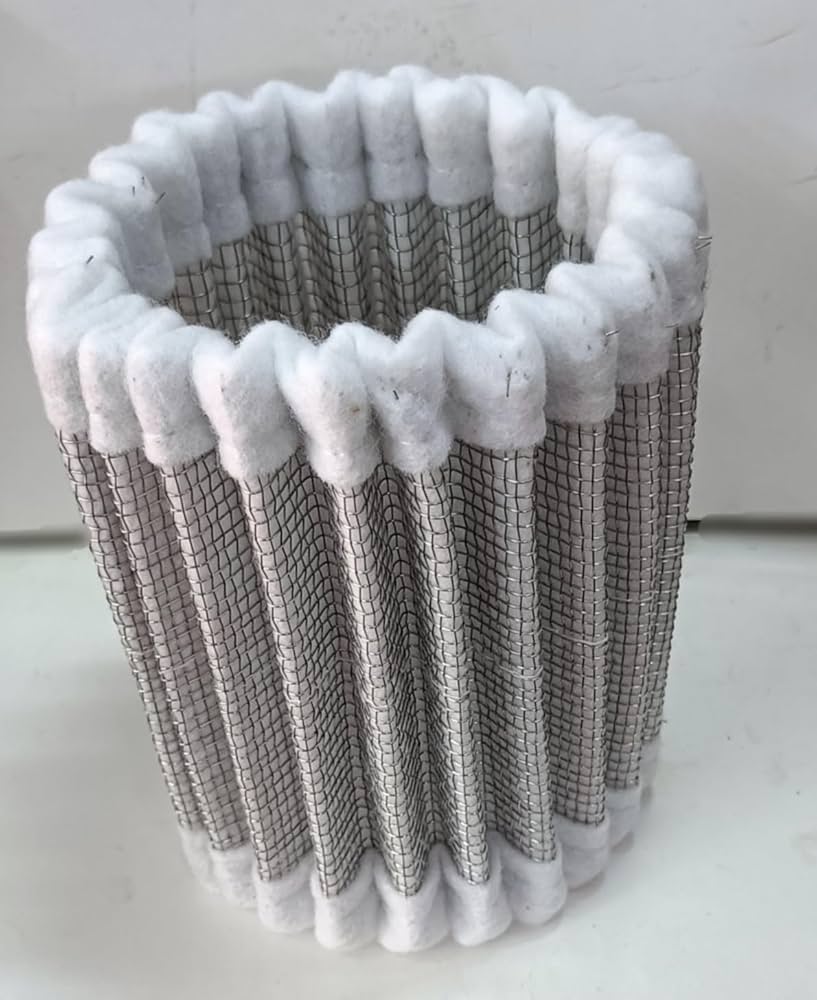

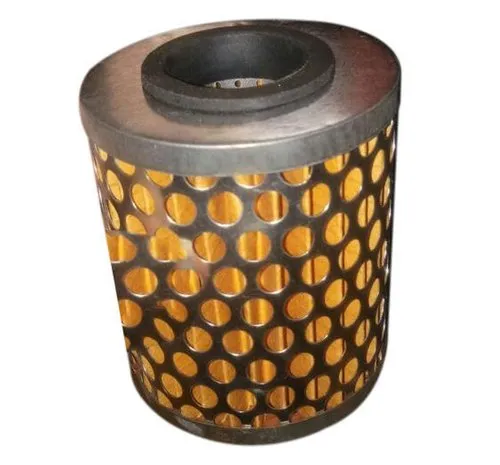

• Materials: Multi-layer construction combining polyester nonwoven prefilter, high-efficiency glass microfiber main filter media, and corrosion-resistant stainless-steel or plated end caps and perforated support core.

• Filtration efficiency: Available ratings from 0.01 µm (absolute removal for oil aerosols and fine particulates) to 5 µm (coarse particulate), with typical βx values specified per ISO 16889 where applicable.

• Particle capture mechanism: Depth-loading glass-fiber matrix with electret-treated options for enhanced oil mist capture.

• Differential pressure: Typical initial pressure drop 15–35 mbar at rated flow; maximum recommended ΔP before replacement 200–300 mbar depending on model.

• Flow capacity: Range of flow-rated elements for small service units to large industrial compressors (specify per model for system design).

• Temperature range: Operative -20 °C to +120 °C (continuous service depends on seal/gasket material selection).

• Seal materials: Nitrile (NBR), Viton® (FKM), or EPDM options for chemical compatibility.

• Physical form & dimensions: Cylindrical cartridge, available in standard industry dimensions (e.g., 10″, 20″, 30″, 40″ equivalent), custom lengths and diameters on request.

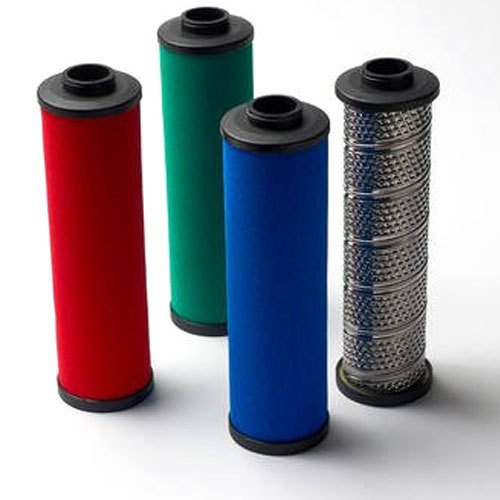

• Color/appearance: Outer media typically white/cream with visible support core (metallic) and molded endcaps in industry colors for grade identification.

• Weight & density: Varies by size; typical bulk density of media pack 40–120 g/L; element weight specified per model.

• Packaging options: Individual sealed poly bags with desiccant for moisture control, boxed in palletized crates; shrink-wrapped cartons with protective caps for end-seal integrity.

• Shelf life: 24 months when stored in original packaging in a dry, temperature-controlled environment (recommended 5–30 °C, <65% RH).

• Quality standards: Manufactured under ISO 9001 quality management; test certification available for aerosol challenge, particle efficiency, and burst strength on request.

3. Core Industrial Applications

• Primary industries: Oil & gas, petrochemical, pharmaceutical, food & beverage, electronics manufacturing, automotive, power generation, and compressed air servicing companies.

• Operational use cases: Point-of-use filtration in compressed air networks, protection of air dryers and instrumentation, pre-filtration ahead of membrane or adsorption dryers, final filtration for pneumatic paint booths, and contamination control in clean manufacturing lines.

• Performance versus alternatives: Depth-loading glass microfiber elements sustain higher contaminant holding capacity than surface-type filters, extending service intervals and reducing replacement frequency. Electret-treated options offer superior oil-mist capture at lower pressure drop compared with plain media. Metal-supported cores deliver structural integrity under high-flow, pulsation, or wet conditions where bag or pleated paper alternatives may collapse or saturate.

• Commercial relevance: Reduced pressure drop lowers energy consumption across compressed-air systems; higher dust holding capacity decreases maintenance labor and spare-part inventory costs; consistent cleanliness supports product quality and regulatory compliance, lowering risk of rejects or downtime.

4. Competitive Advantages

• Quality consistency: Factory-controlled media production and batch-level testing ensure repeatable filtration performance and traceable test reports.

• Supply reliability: Global production footprint with safety-stock management and scheduled replenishment reduces lead-time variability for large industrial buyers.

• Logistics capability: Palletized loading, container-ready packaging, and export documentation (COO, packing list, commercial invoice) streamline international procurement.

• Price competitiveness: Tiered pricing for volume contracts and long-term supply agreements; value-based total-cost-of-ownership (TCO) analysis demonstrates savings from energy and maintenance reductions.

• Sustainability benefits: Media options with reduced carbon footprint (recycled support components, optimized packaging), and end-of-life recycling guidance to lower disposal impact.

• Technical support & documentation: Detailed technical data sheets, pressure-drop vs flow curves, installation guides, compatibility matrices for seal materials, and on-demand lab test certificates and in-field support from application engineers.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity: Typical loading per container depends on element size and packaging; estimated loading capacity per 20’ GP container ~18–20 MT and per 40’ HC container ~20–22 MT for palletized cartridge shipments. Exact MT per container will be confirmed based on specified element dimensions and packing configuration.
