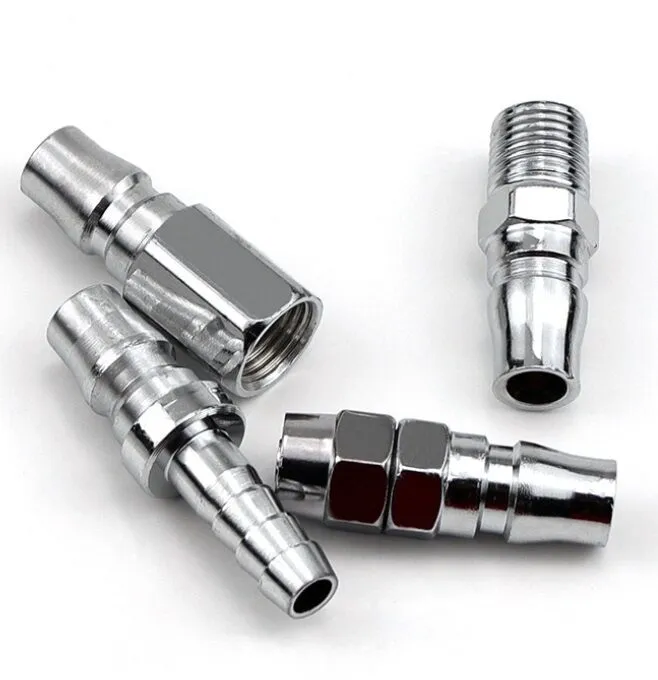

Compressed Air Quick Coupler Industrial Type

Description

Product Overview
The Compressed Air Quick Coupler — Industrial Type is a heavy-duty pneumatic coupling engineered to provide secure, rapid connect/disconnect of compressed air lines in demanding industrial environments. Designed for use on production lines, maintenance shops, heavy equipment, and mobile service units, it enables fast tool changes and minimizes system downtime. Its primary value proposition is reliable, leak‑tight performance under high cycle rates and elevated pressures, delivering measurable improvements in operational uptime and worker productivity. Strategically, this component reduces total cost of ownership by lowering maintenance time, preventing air loss, and enabling standardized fittings across multi-site operations.

Key Specifications & Technical Characteristics

• Material construction: Hardened stainless steel (AISI 316) body with hardened alloy steel or stainless internal components; optional brass variant for non-corrosive applications.

• Sealing materials: Industrial-grade NBR (nitrile) standard; optional FKM (Viton®) or EPDM for high temperature/chemical resistance.

• Pressure rating: Working pressure up to 16 bar (232 psi) typical; proof/test pressure 24 bar (348 psi) depending on variant.

• Temperature range: Standard NBR seals: -20°C to +80°C; FKM option: -20°C to +200°C.

• Port sizes and thread types: Available in BSPP, BSPT, NPT, and metric threaded ports; common sizes 1/4″, 3/8″, 1/2″, 3/4″ (or 6 mm–19 mm metric).

• Flow characteristic: Optimized internal bore for minimal pressure drop; Cv values specified per size on datasheet.

• Surface finish: Passivated and polished exterior; optional electroless nickel plating or phosphate coating for enhanced wear/corrosion resistance.

• Durability: Cycle-tested to >1,000,000 mating cycles for industrial-grade variants.

• Leak rate: <1.0 x 10^-3 mbar·L/s (typical when new) depending on seal selection.

• Weight and dimensions: Size-dependent; detailed dimensional drawings available on request.

• Packaging options: Industrial bulk crates, palletized wooden cases, boxed sets with protective caps, or customized packaging for OEM clients.

• Shelf life: Non-perishable mechanical component; seals recommended inspection/replacement after prolonged storage (recommendation: inspect seals after 24 months).

• Compliance and certifications: Manufactured to ISO 4414/ISO 8573 compatibility practices; RoHS compliance on material selection; material certificates (MTC) available on request.

Core Industrial Applications

• Primary industries: Manufacturing (automotive, aerospace, electronics), heavy equipment maintenance, construction, mining, oil & gas service operations, shipyards, and industrial rental fleets.

• Specific use cases: Quick tool change on pneumatic assembly lines, service carts for field maintenance, modular pneumatic distribution systems, emergency repair kits, and integration into compressed air manifolds for multi-point tool deployment.

• Performance advantages: Superior sealing and material selection reduce air leakage and pressure drop, leading to lower energy consumption and more consistent tool performance. High cycle-life construction reduces replacement frequency and maintenance labor. Interchangeable port and thread options simplify procurement and standardization across facilities.

• Commercial relevance: By reducing unplanned downtime and energy losses while simplifying inventory (fewer adapter/spare types needed), the coupler yields quantifiable operating-cost reductions and predictable maintenance scheduling.

Competitive Advantages

• Quality consistency: Factory-calibrated production with batch traceability and optional material certification ensures uniform performance across orders.

• Supply reliability: Bulk stocking, scheduled replenishment programs, and multi-origin manufacturing reduce lead times and mitigate single-source risk.

• Logistics capability: Palletized bulk shipments, container-friendly packing, and coordinated loading plans for full-container shipments to optimize freight cost and minimize handling damage.

• Price competitiveness: Volume-tier pricing (MOQ-friendly tiers) and OEM contract terms available to reduce unit cost for repeat buyers.

• Sustainability: Durable materials and reparable seal options extend service life and reduce waste; packaging can be optimized for reusable or recyclable materials on request.

• Technical support: Full technical datasheets, dimensional drawings, installation and maintenance guides, and engineering support for system integration available. Customization services for special materials, surface treatments, or thread types offered.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Varies by coupler size and packaging; typical loading capacity examples: up to 20–22 MT per 20′ container and up to 25–28 MT per 40′ container for bulk-packed small-to-medium coupler SKUs. Exact loading plan and unit counts will be provided after SKU selection and packaging configuration.
