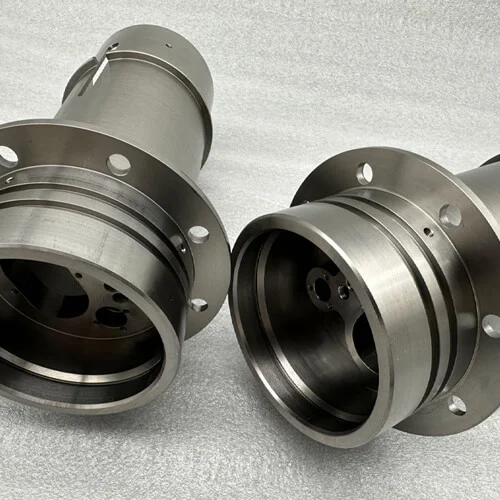

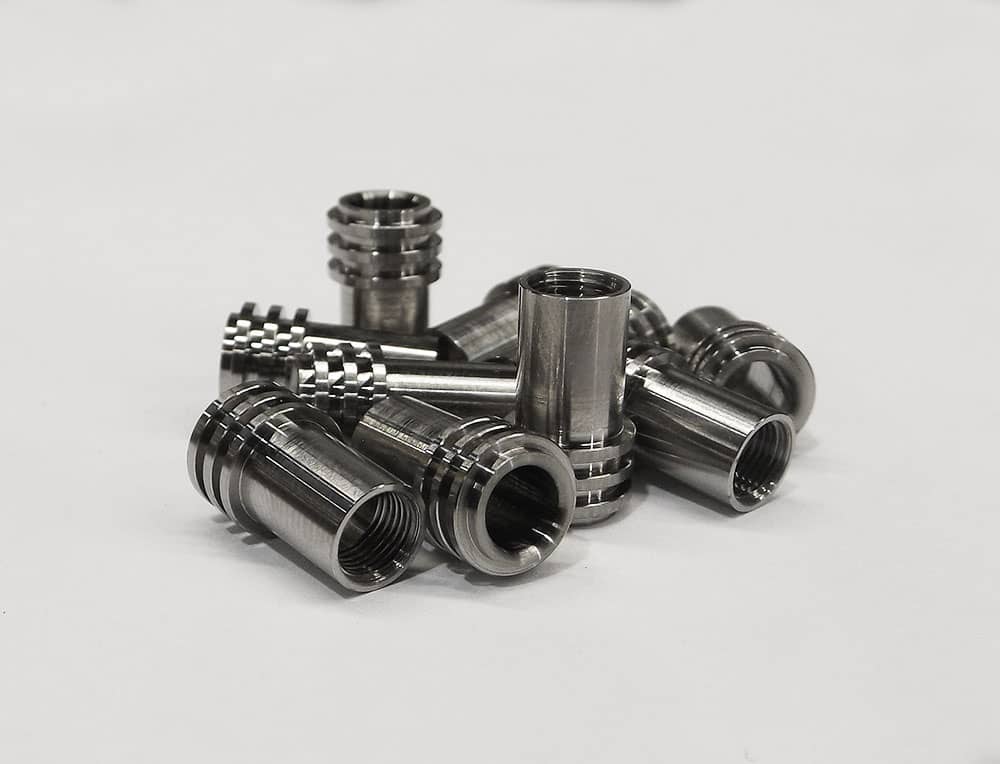

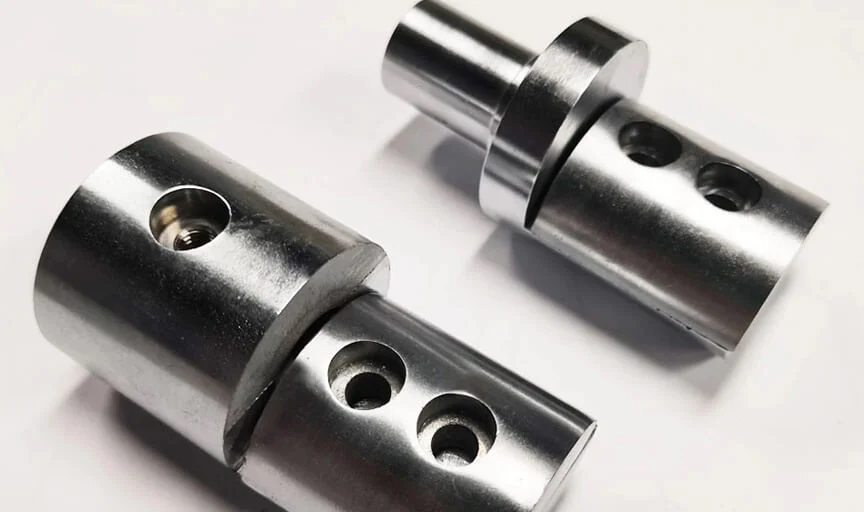

CNC machined titanium Ti-6Al-4V AS9100 part

Description

1. Product Overview

This CNC machined titanium Ti-6Al-4V component is a precision-engineered, mission-critical part manufactured under strict AS9100 aerospace quality management standards. It is primarily used in high-stress structural and fastening applications across aerospace, medical, and high-performance automotive sectors. The key value proposition lies in its exceptional strength-to-weight ratio, corrosion resistance, and fatigue performance, reducing total cost of ownership through extended lifecycle. Strategically, sourcing AS9100-certified titanium components mitigates supply chain risk and ensures regulatory compliance in regulated industries—a market differentiator as global OEMs tighten vendor qualification requirements.

2. Key Specifications & Technical Characteristics

• Material Composition: Ti-6Al-4A (ASTM B348 / AMS 4928) – 6% Vanadium, 4% Aluminum, balance Titanium

• Purity / Grade: Grade 5 titanium alloy; beta-annealed microstructure; no alpha-case contamination

• Physical Characteristics:

  • Form: Precision CNC machined to custom print (tolerances ±0.005 mm)

  • Color: Metallic silver-gray with as-machined or passivated finish

  • Density: 4.43 g/cm³

  • Tensile Strength: Min 895 MPa / Yield Strength: Min 828 MPa

• Packaging Options: Individual ESD-safe anti-static bags + foam-lined partitioned cases for high-value parts; bulk corrosion-inhibiting VCI packaging for larger orders

• Shelf Life: Indefinite (non-perishable) when stored in dry, 15–25°C environment; certification valid for 5 years from test date

3. Core Industrial Applications

• Aerospace & Defense: Hydraulic system manifolds, landing gear brackets, engine mounts, airframe fasteners – outperforms stainless steel with 40% weight reduction and superior high-cycle fatigue life.

• Medical Devices: Surgical instrument handles, spinal implant trial components, orthopedic drill guides – biocompatible and non-magnetic, outperforming 316L stainless in corrosion resistance and MRI compatibility.

• High-Performance Automotive & Motorsport: Connecting rods, suspension uprights, turbocharger compressor wheels – delivers higher temperature stability than aluminum and lower rotational inertia than steel.

• Marine & Subsea: ROV components, valve stems, pressure housings – resists crevice corrosion in seawater where 17-4PH fails within 12 months.

4. Competitive Advantages

• Quality Consistency: 100% dimensional inspection via CMM; material traceability from mill to finished part (EN 10204 3.1); AS9100D and ISO 13485 dual certification.

• Supply Reliability: Safety stock held in regional hubs (Americas, EMEA, APAC); typical lead time 4 weeks for repeat parts; kanban and VMI contracts available.

• Logistics Capability: Export-compliant documentation; shipments tracked with real-time IoT-enabled packaging for high-value orders.

• Price Competitiveness: Cost-per-part reduced by 15–20% versus European and North American specialty shops through optimized Swiss-type CNC and multi-axis milling cells.

• Sustainability & Technical Support: 95% machining scrap recycled into aerospace-grade ingot; full GD&T support with FAIR (First Article Inspection Report) and PPAP Level 3 available.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 50 pieces (custom geometries) or 25 kg standard catalog items

• BULK 20MT: Available via blanket order (multiple releases over 12 months) – actual 20MT = approx. 4,520 kg net titanium parts (excluding packaging)

• Loading Capacity (MT per 20FT container): Maximum 9,500 kg net weight (pallets + partitioned dunnage) based on part density and packaging configuration; full container load pricing available above 4,500 kg
