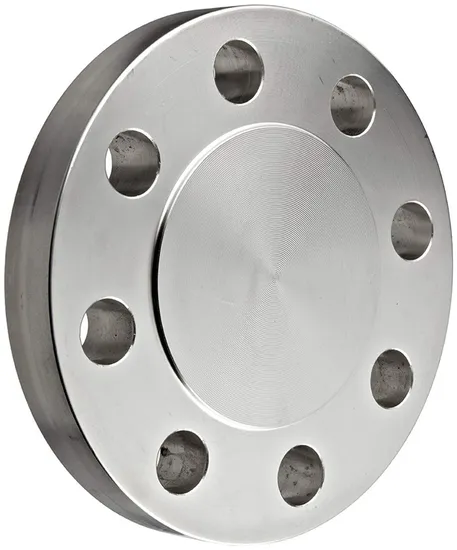

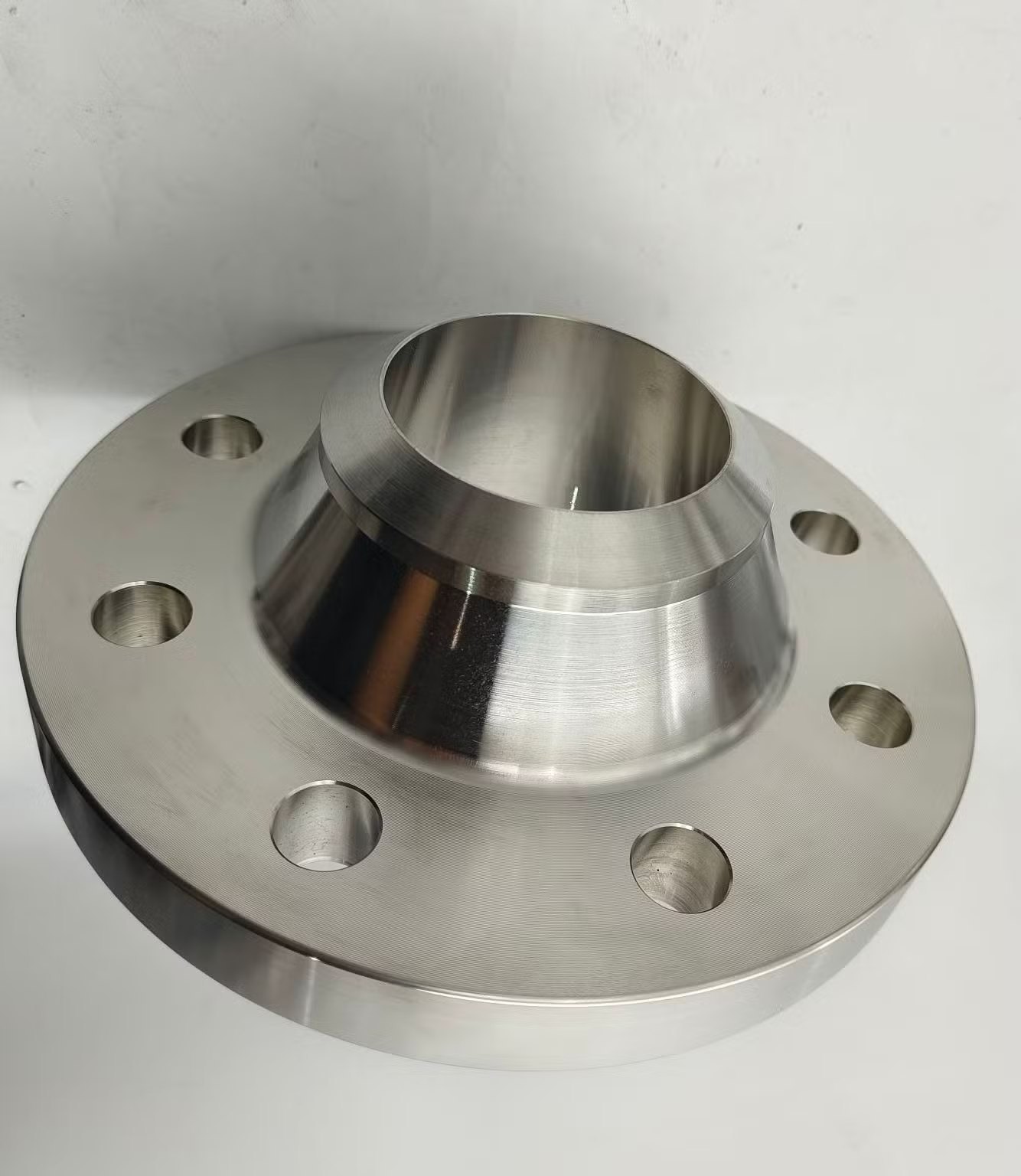

CNC ASME B16.5 flange

Description

1. Product Overview
The CNC ASME B16.5 Flange is a precision-engineered forged flange manufactured to the globally mandated ASME B16.5 dimensional standard, designed for high-integrity bolted pipe connections in critical pressure systems. Its primary industrial use is to connect valves, pumps, and piping equipment in petrochemical, power generation, and offshore processing environments where leak-free operation under extreme temperatures and pressures is non-negotiable. The key value proposition lies in its CNC-machined accuracy, which guarantees perfect gasket alignment, reduced bolt torque variance, and faster assembly compared to conventionally machined flanges. In a market where unplanned downtime costs exceed $50,000 per hour, sourcing this flange is a strategic risk-mitigation decision.

2. Key Specifications & Technical Characteristics

• Material Composition (ASTM A105 / A182 F304/F316): Carbon: 0.35% max, Manganese: 0.60–1.05%, Phosphorus: 0.035% max, Sulfur: 0.040% max, Chromium 18–20% / Nickel 8–12% (stainless grades)

• Grade & Purity: Forged grain flow structure with no porosity or inclusions; 100% visual, dimensional, and NIST-traceable material test report (MTR) per EN 10204 3.1

• Physical Characteristics: Raised face (RF) or RTJ groove; CNC-turned hub and bolt circle; surface roughness 3.2–6.3 µm Ra; black, galvanized, or bare steel finish

• Pressure Classes: 150, 300, 600, 900, 1500, 2500

• Nominal Pipe Size (NPS): ½” through 24”

• Packaging Options: Wooden crates (export-grade), anti-rust VCI paper interleaving, poly-wrap with edge protectors, palletized and strapped

• Shelf Life: Indefinite when stored indoors at 10–35°C, relative humidity <60%; retest not required

3. Core Industrial Applications

• Primary Industries: Oil & gas (upstream/midstream), hydrogen refueling stations, chemical processing, thermal and nuclear power plants, marine engine rooms

• Operational Use Cases:

  • High-temperature steam lines (up to 550°C with ASTM A182 F22 alloy)

  • Corrosive chemical transfer (chlor-alkali plants, sulfuric acid lines)

  • Offshore platform riser connections requiring NACE MR0175 compliance for H₂S resistance

• Performance Advantage vs. Alternatives:

  • Efficiency: CNC-controlled bolt hole alignment reduces assembly time by 18–22% vs. manually aligned flanges

  • Durability: Consistent facing flatness (±0.002”/ft) eliminates stress risers, extending gasket life by 300% over cast flanges

  • Cost Advantage: Zero reject rate in hydrostatic testing eliminates field rework costs (avg. $12,000 per flange replacement offshore)

4. Competitive Advantages

• Quality Consistency: ISO 9001:2015 certified with 100% in-process laser scanning; every flange carries a unique heat number traceable to original mill cert.

• Supply Reliability: Dual-stocked inventory (Houston, Rotterdam, Shanghai) – 98% fill rate for standard classes/NPS within 24 hours

• Logistics Capability: Containerized export with real-time tracking; lead times 10–14 days ex-warehouse (any major port); emergency air freight ready

• Price Competitiveness: Tier-1 Indian/Korean forging clusters reduce landed cost by 12–17% vs. European or North American equivalents without tariff penalties

• Sustainability: 92% recycled steel content; forged (not cast) reduces CO₂ per flange by 34%; compliant with EU Carbon Border Adjustment Mechanism (CBAM) reporting

• Technical Support: Full 3D CAD models (STEP/IGES) available pre-purchase; torque value charts + bolt elongation calculators included with every order

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 25 units (mixed sizes/classes allowed per PO)

• BULK 20MT Loading Capacity: Approx. 1,200–1,800 units (depending on NPS distribution; e.g., 1,500 units of NPS 4” Class 150 RF)

• MT per 20FT Container: 20 metric tons net (maximum payload, palletized)
