CMP Polishing Pads (IC1000 / POLITEX)

Description

1. Product Overview
The CMP Polishing Pads (IC1000 / POLITEX) are precision-engineered consumables designed for chemical mechanical planarization (CMP) processes in semiconductor wafer fabrication and advanced substrate manufacturing. These pads enable nanometer-scale surface planarization by combining mechanical abrasion with chemical slurry interaction—a critical step in achieving device yield and defect control. Strategically, they represent a high-velocity, high-stakes procurement category where pad consistency directly dictates fab output quality and cost-per-wafer, making them indispensable for leading-edge logic, memory, and compound semiconductor producers.

2. Key Specifications & Technical Characteristics

• Material Components:

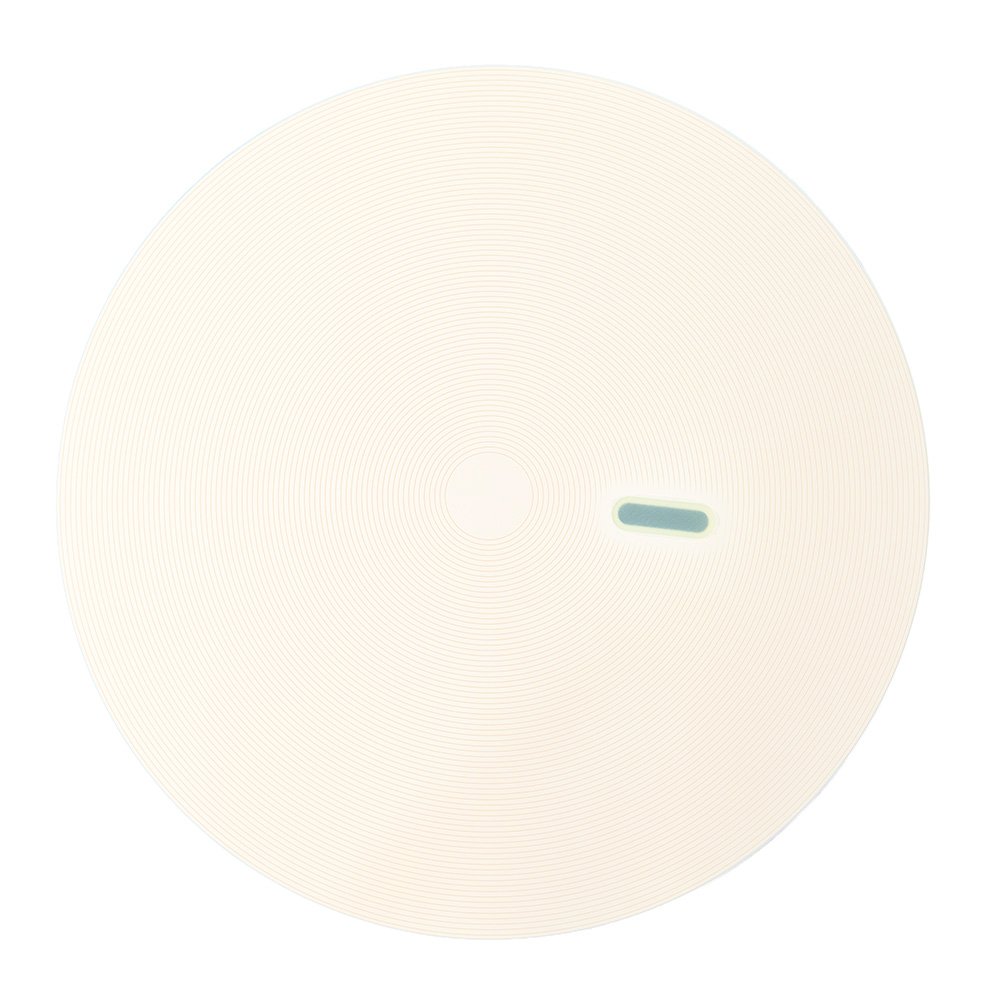

  • IC1000: Rigid, porous polyurethane matrix with embedded cerium oxide or silica-compatible grooving; patented groove patterns (e.g., spiral, concentric, radial).

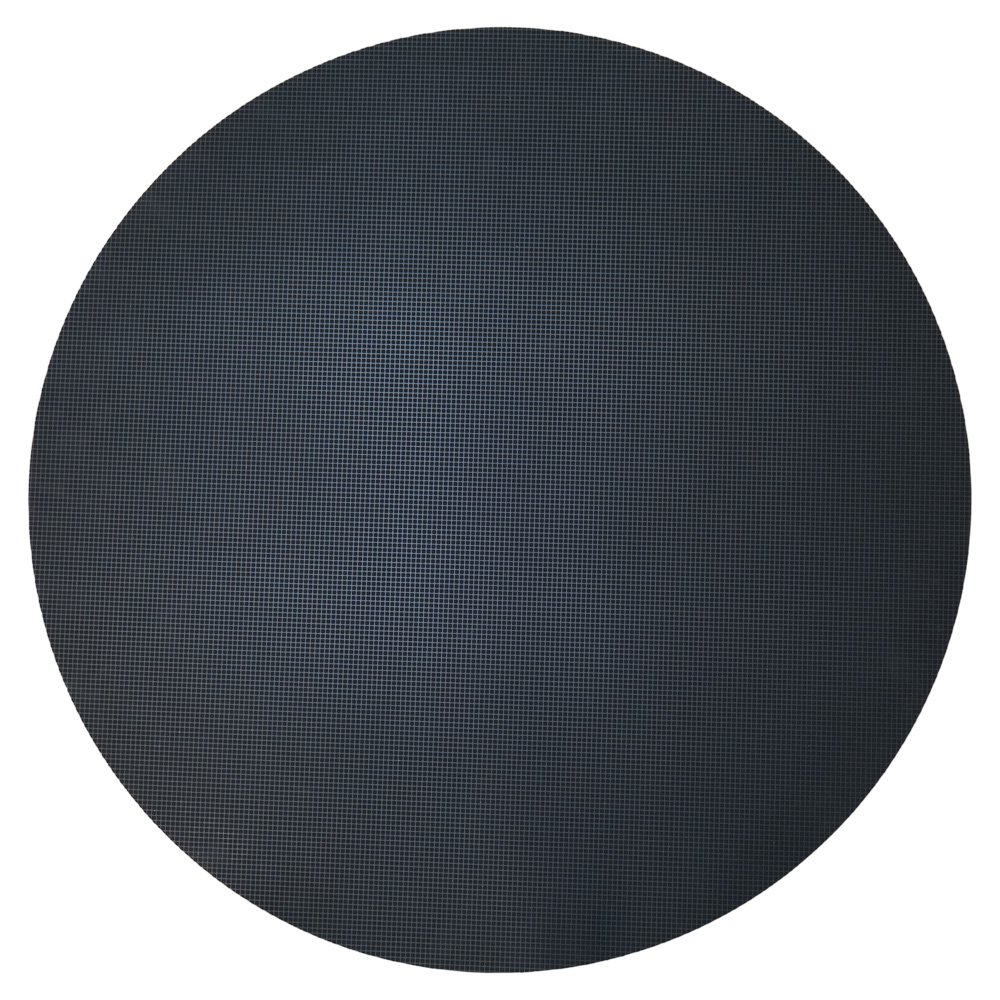

  • POLITEX: Soft, non-woven polyurethane-impregnated felt substrate; compressible, high-void-volume structure.

• Grade / Purity: Semiconductor-grade; particle shedding < 0.1 particles/cm² (>0.2 µm); trace metal contaminants < 1 ppb (by ICP-MS).

• Physical Characteristics:

  • Diameter: 300 mm, 200 mm, 150 mm (custom sizes available)

  • Groove depth: 0.3–0.7 mm (±0.02 mm)

  • Thickness tolerance: ±0.1 mm

  • Density (IC1000): 0.85–0.95 g/cm³; Compressibility (POLITEX): 8–12% at 5 psi

• Packaging Options: Single pad in Class 10 cleanroom double-bag; multi-pad lot kits (10 pads / 25 pads) with vacuum-sealed, ESD-safe carriers.

• Shelf Life: 24 months from manufacture when stored at 18–25°C, 40–60% RH, away from UV and ozone.

3. Core Industrial Applications

• Primary Industries: Front-end semiconductor fabs (logic, DRAM, 3D NAND), silicon wafer manufacturing, compound semiconductor (SiC, GaN) polishing, and advanced substrate (glass, sapphire) processing.

• Specific Use Cases:

  • IC1000: Dielectric CMP (STI, ILD) and metal CMP (Cu, W) – high down-pressure, high-removal-rate steps.

  • POLITEX: Buff polishing and barrier removal – post-CMP cleaning and defect reduction.

• Performance Advantage: IC1000 delivers >30% tighter within-wafer non-uniformity (WIWNU < 5%) vs. generic pads due to precision grooving and uniform pore structure. POLITEX reduces scratch density by >40% in buff steps, directly boosting die yield.

• Commercial Efficiency: Dual-pad sets (IC1000 + POLITEX) extend pad conditioning intervals by 15–20%, reducing consumables cost per wafer by up to 12% in high-volume fabs.

4. Competitive Advantages

• Quality Consistency: Batch-to-batch coefficient of variation (CV) < 3% for thickness, groove geometry, and hardness – validated via automated optical inspection (AOI) and profilometry.

• Supply Reliability: Dedicated production lines with 99.5% on-time-in-full (OTIF) delivery rate; buffer stock held in regional hubs (Asia, Europe, North America).

• Logistics Capability: Ex-works, FOB, CIF, or DDP terms available; temperature-controlled container shipping with real-time tracking.

• Price Competitiveness: Tier-1 performance at 15–20% below incumbent premium brands (e.g., Dow, Cabot) via lean manufacturing and direct mill sourcing of raw polymers.

• Sustainability: 100% post-industrial waste recycling for non-cosmetic pad offcuts; compliant with REACH, RoHS, and conflict-mineral-free standards.

• Technical Support: Full documentation (COA, SDS, groove pattern CAD files) plus onsite CMP process tuning assistance – available within 5 days globally.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 units (mix of IC1000 and POLITEX permitted)

• BULK 20MT Loading Capacity: Approx. 18,000–22,000 pads (300 mm) per 20MT shipment, depending on pad mix and packaging density.

• MT per Container:

  • 20-ft dry container: 18–22 MT (max 22,000 pcs)

  • 40-ft HC container: 26–28 MT (max 32,000 pcs)

• Lead Time: 10–15 days for MOQ; 25–30 days for full container load – ex-works (major port: Shanghai / Rotterdam / Houston).
