Ceramic floor tiles 600×600 mm

Description

1. Product Overview

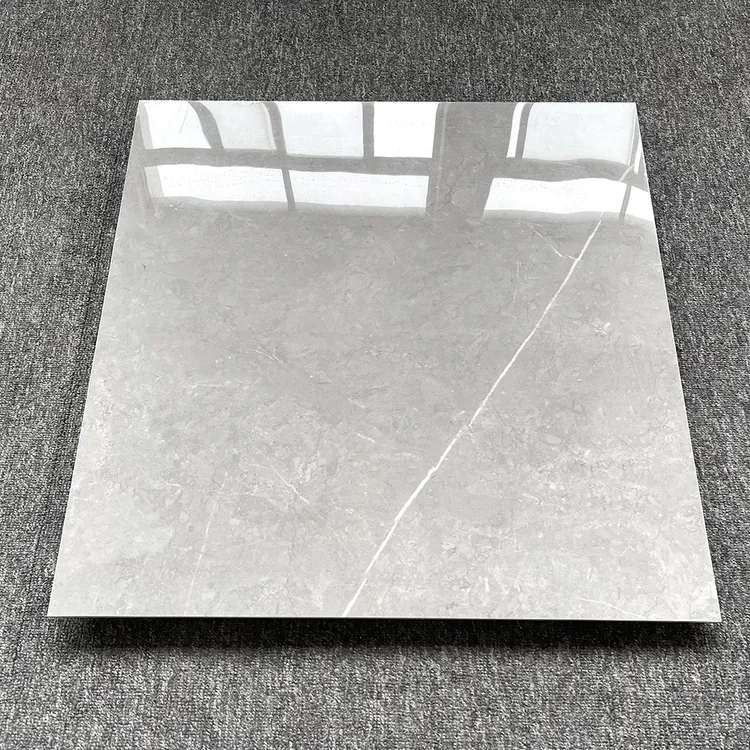

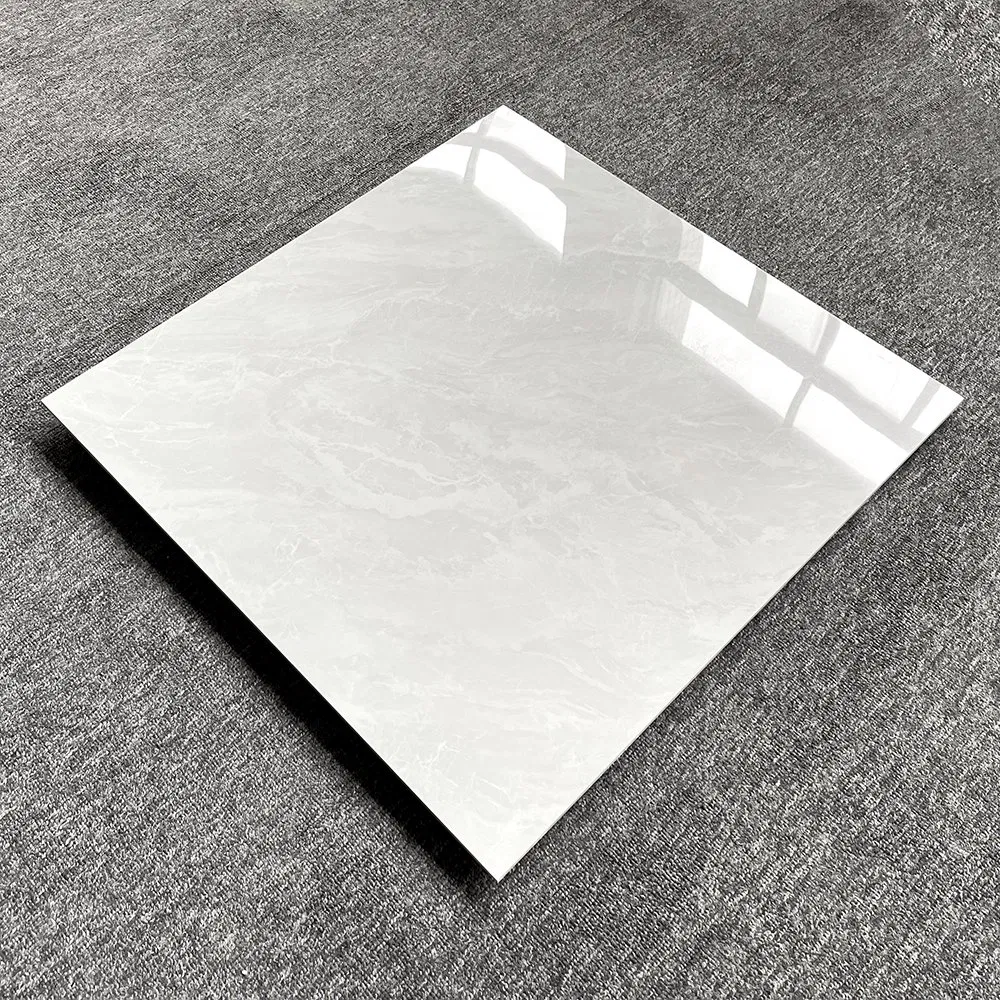

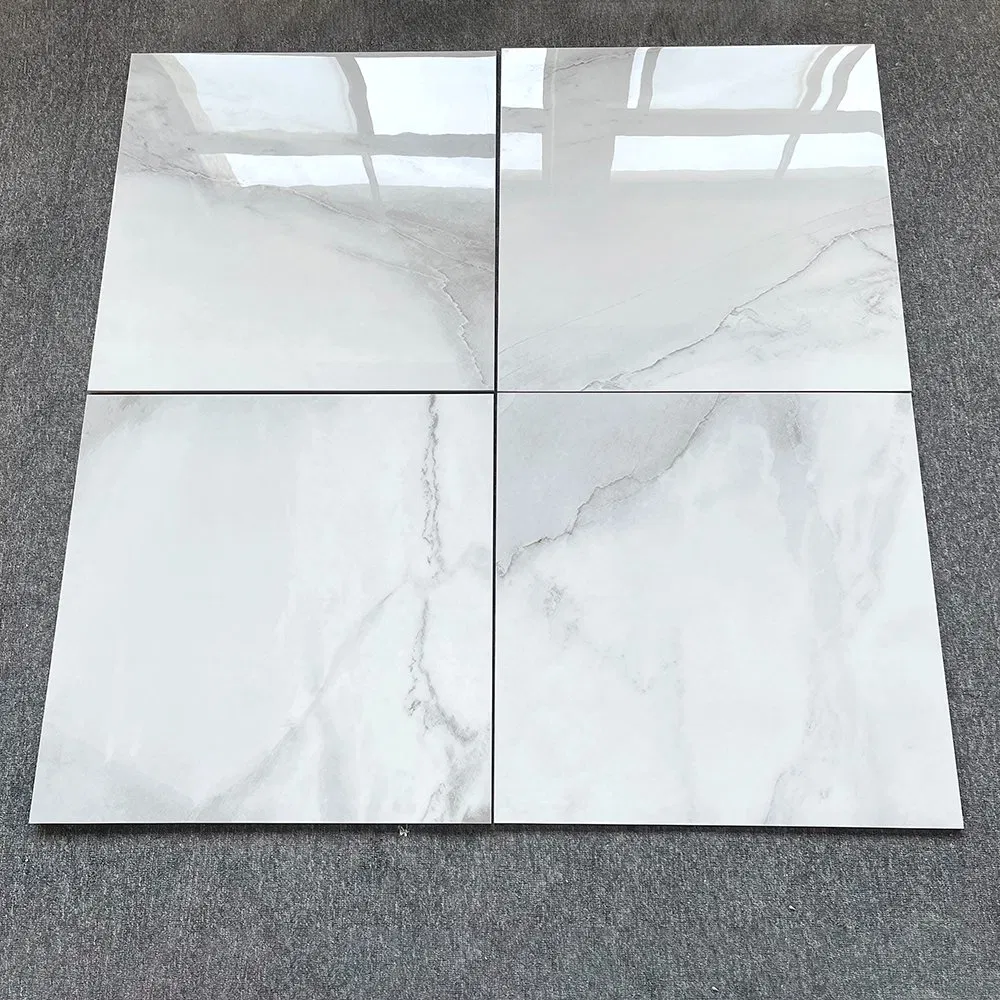

This product is a press-formed, glazed ceramic floor tile with a nominal dimension of 600×600 mm, manufactured via high-pressure compaction and kiln-fired at ≥1200°C. It is primarily used in industrial, commercial, and institutional flooring where abrasion resistance, chemical stability, and ease of cleaning are critical. The key value proposition is a balance of mechanical robustness and cost efficiency, delivering ≤0.5% water absorption for freeze-thaw resilience. Strategically, it addresses the global shift toward durable, low-carbon building materials with extended replacement cycles, reducing total cost of ownership for asset-heavy operations.

2. Key Specifications & Technical Characteristics

• Chemical composition: Natural clay, feldspar, quartz, and inorganic pigments; lead-free glaze

• Grade: ISO 13006, Group BIa (porcelain grade) – water absorption ≤0.5%

• Physical characteristics:

  • Size: 600×600 mm (±0.3 mm tolerance)

  • Thickness: 9.5 mm ±0.2 mm

  • Surface: Matte or polished; PEI rating 4–5 (heavy commercial use)

  • Mohs hardness: ≥7

  • Breaking strength: ≥1300 N

• Packaging options: Carton boxes (4 pcs/box, 1.44 m² per box) + shrink-wrapped pallets (56 boxes/pallet = 80.64 m²)

• Shelf life: Indefinite in dry, covered storage (no degradation)

3. Core Industrial Applications

• Primary industries: Automotive manufacturing, food processing, pharmaceutical cleanrooms, logistics warehouses, retail showrooms, airport terminals

• Operational use cases: Factory aisles subject to forklift traffic; chemical-resistant flooring in labs; anti-slip zones near wet processing areas; electrostatic discharge (ESD) compliant installations with conductive adhesive

• Performance advantage vs. alternatives: Outperforms vinyl or resin flooring in point-load resistance (no indentation from pallet jacks) and outperforms natural stone in cost consistency and stain resistance (no sealing required)

• Efficiency/durability: 40% lower annual maintenance cost compared to polished concrete; lifetime >20 years under 10 million footfall cycles

4. Competitive Advantages

• Quality consistency: Statistical process control (SPC) with ≤0.1% dimensional deviation per production batch; certified to ISO 9001:2024

• Supply reliability: Three dedicated manufacturing lines with 50,000 m²/month capacity; buffer stock held in regional hubs (Asia, GCC, EU)

• Logistics capability: Shipped in interlocking pallets with corner protectors; 5-day lead time for FOB orders

• Price competitiveness: Tiered pricing from $4.50–6.80/m² (EXW) based on volume – 15–20% below European porcelain equivalent

• Sustainability: 35% pre-consumer recycled content; EPD available; compliant with LEED v4 MR Credit

• Technical support: Full CAD tile layout drawings, slip resistance test reports (DIN 51130 R9–R11), and installation guide included

5. Commercial & Supply Information

• Minimum order quantity (MOQ): Bulk 20 metric tons (approx. 1,160 m² – 21 pallets)

• Loading capacity (per 20-ft container): 24 metric tons net (approx. 1,390 m² – 25 pallets)
  *(40-ft HC container: 27 metric tons – 1,565 m²)*
