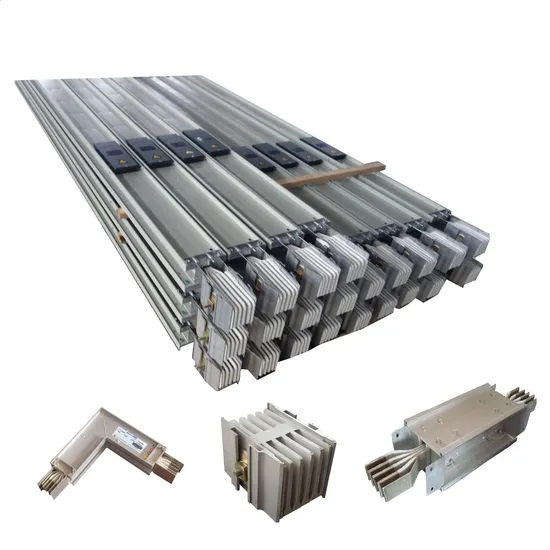

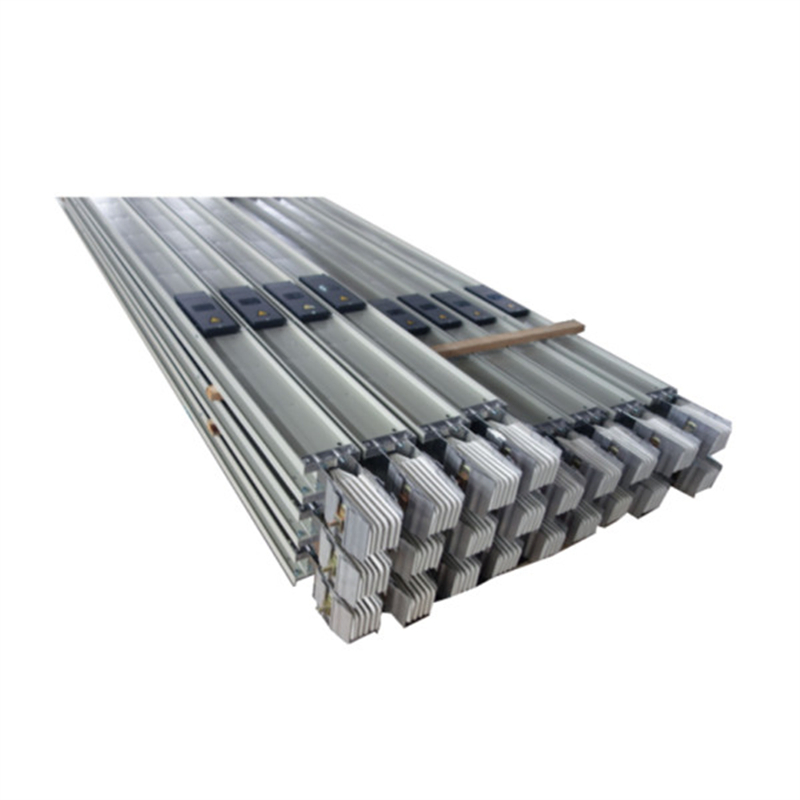

Busbar Trunking System (LV) — IEC 61439-6

Description

1. Product Overview

Busbar Trunking System (LV) — IEC 61439-6 is a low-voltage electrical power distribution solution designed to efficiently transmit and distribute high-current power within commercial, industrial, and infrastructure facilities. Manufactured according to IEC 61439-6 standards, it provides a compact, reliable alternative to traditional cable-based distribution systems by integrating conductors, insulation, and protective housing into a modular busway design. The system delivers improved electrical performance, simplified installation, and enhanced scalability for modern power networks. As global industries move toward energy-efficient and space-optimized electrical infrastructure, LV busbar trunking systems have become a strategic choice for high-density power distribution applications.

2. Key Specifications & Technical Characteristics

• Material Components:
  • Conductors: High-conductivity electrolytic copper or aluminum alloy
  • Housing: Powder-coated galvanized steel or aluminum enclosure for mechanical protection
  • Insulation: Flame-retardant, heat-resistant polymer insulation materials
  • Joints: Silver-plated or tin-plated copper joint connectors for low-resistance connections
• Standard Compliance:
  • Designed and tested according to IEC 61439-6 Low-Voltage Switchgear and Controlgear Assemblies — Busbar Trunking Systems
  • Available with international certifications and factory test documentation
• Electrical Specifications:
  • Rated voltage: Typically up to 1000V AC
  • Rated current range: 100A to 6300A (customizable depending on design)
  • Frequency: 50Hz / 60Hz
  • Short-circuit withstand capacity: Configurable according to project requirements
• Physical Characteristics:
  • Form: Modular enclosed busway sections with plug-in and feeder units
  • Color: Typically RAL 7035 light gray or customized industrial coating
  • Installation: Horizontal or vertical mounting configurations
  • Protection rating: IP40 to IP66 options available
  • Compact structure with optimized space utilization
• Packaging Options:
  • Export-grade wooden cases or reinforced pallets
  • Moisture-resistant protective packaging for international transportation
  • Customized packing solutions for project-based deliveries
• Shelf Life:
  • Long service life exceeding 25–30 years under proper installation and operating conditions
  • No defined shelf expiry when stored in dry, protected environments

3. Core Industrial Applications

• Commercial Buildings & High-Rise Facilities:
  • Main power distribution between transformers, switchboards, and electrical panels
  • Supports high-load applications while reducing installation complexity
• Data Centers & IT Infrastructure:
  • Reliable power distribution for server rooms, UPS systems, and critical equipment
  • Enables flexible expansion and rapid deployment of additional power capacity
• Manufacturing & Industrial Plants:
  • Used for machinery power supply, production lines, and heavy electrical loads
  • Provides improved reliability compared with conventional cable systems
• Energy & Infrastructure Projects:
  • Applied in airports, hospitals, shopping centers, transportation facilities, and utility installations
  • Supports continuous operation with high safety and efficiency requirements
• Advantages Over Traditional Cable Distribution:
  • Requires less installation space and reduces cable routing complexity
  • Faster installation with modular plug-and-play components
  • Lower voltage drop and improved power efficiency
  • Easier maintenance, upgrades, and future capacity expansion

4. Competitive Advantages

• Quality Consistency:
  • Manufactured under strict quality control systems with IEC 61439-6 compliance
  • Ensures reliable electrical performance, safety, and long operational lifespan
• Supply Reliability:
  • Stable production capacity supporting large-scale infrastructure and industrial projects
  • Flexible customization for different voltage, current, and installation requirements
• Logistics Capability:
  • Export-ready packaging suitable for global transportation
  • Supports containerized bulk shipments and project-based delivery schedules
• Price Competitiveness:
  • Optimized material selection and manufacturing efficiency provide competitive lifecycle costs
  • Reduces installation labor expenses compared with conventional cable systems
• Sustainability Benefits:
  • Improved energy efficiency through reduced electrical losses
  • Aluminum conductor options reduce material weight and environmental impact
  • Long service life minimizes replacement frequency and resource consumption
• Technical Support & Documentation:
  • Available with technical datasheets, IEC compliance reports, installation manuals, and engineering support
  • Provides reliable documentation for international EPC contractors and project developers

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity (MT per Container):
  • Approximately 15–20 MT per 20-foot container (depending on busbar rating, dimensions, and packaging configuration)
