Sandwich Busbar System — IEC 61439

Description

1. Product Overview

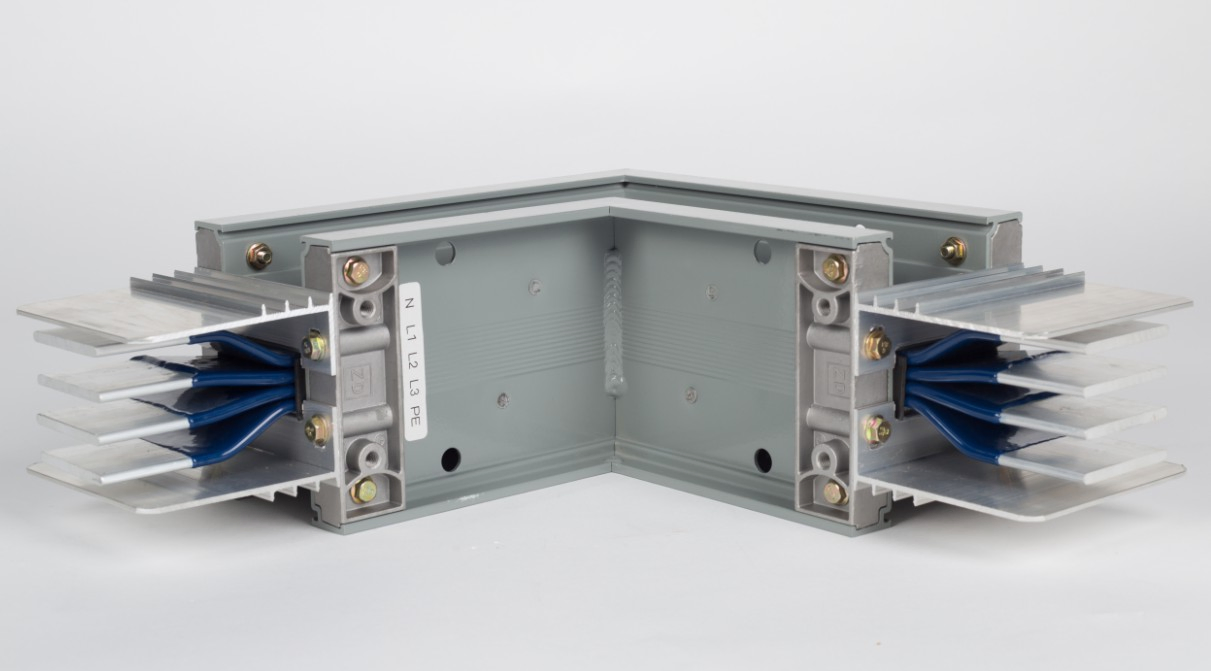

Sandwich Busbar System — IEC 61439 is a high-performance electrical power distribution solution designed with compact laminated busbar conductors enclosed within an insulated housing system. It is primarily used for low-voltage power distribution in industrial facilities, commercial buildings, data centers, renewable energy installations, and large infrastructure projects. The system provides superior electrical efficiency, reduced space requirements, enhanced safety, and reliable high-current transmission compared with traditional cable-based distribution systems. As global power networks demand higher energy efficiency, modularity, and safer electrical infrastructure, IEC 61439-compliant sandwich busbar systems have become a strategic component in modern power distribution design.

2. Key Specifications & Technical Characteristics

• Material Components:
  • Conductors: High-conductivity electrolytic copper or aluminum conductors
  • Insulation: Flame-retardant epoxy resin, polyester film, or advanced insulating laminates
  • Housing: Powder-coated steel, aluminum alloy, or galvanized protective enclosure
  • Joint Components: High-strength bolting systems with optimized contact surfaces
• Standard / Compliance Grade:
  • Designed and manufactured according to IEC 61439 Low-Voltage Switchgear and Controlgear Assemblies Standard
  • Available in various protection ratings including IP40, IP54, IP55, and higher upon request
  • Suitable for high-performance LV power distribution applications
• Electrical Characteristics:
  • Rated current range: Typically 250A–6300A (custom configurations available)
  • Rated voltage: Up to 1000V AC
  • Frequency: 50/60 Hz
  • High short-circuit withstand capability
  • Low impedance design for efficient power transmission
• Physical Characteristics:
  • Compact sandwich-type layered structure
  • Space-saving design compared with conventional cable systems
  • High mechanical strength and vibration resistance
  • Modular straight sections, elbows, tees, and connection units available
  • Low heat generation due to optimized conductor arrangement
• Color / Appearance:
  • Standard enclosure colors: RAL 7035, RAL 7032, or customized industrial finishes
  • Smooth powder-coated protective surface
• Packaging Options:
  • Export-grade wooden crates
  • Moisture-resistant packaging for international transportation
  • Customized packing according to project requirements
• Shelf Life:
  • Long service life exceeding 25–30 years under recommended operating conditions
  • Storage life depends on environmental protection and packaging integrity

3. Core Industrial Applications

• Primary Industries:
  • Power generation and utilities
  • Manufacturing plants and industrial automation facilities
  • Data centers and IT infrastructure
  • Commercial buildings and high-rise developments
  • Renewable energy projects including solar and wind installations
  • Transportation infrastructure and large public facilities
• Operational Use Cases:
  • Main power distribution from transformers to switchgear panels
  • High-current electrical distribution between floors and production zones
  • Power supply systems for machinery, server rooms, and automated production lines
  • Replacement of large-scale cable trunking systems in space-constrained installations
• Performance Advantages:
  • Lower electrical losses compared with traditional cable systems
  • Reduced installation time through modular plug-and-play components
  • Improved thermal management and current-carrying performance
  • Enhanced reliability through factory-engineered joints and standardized components
  • Requires less installation space, reducing overall infrastructure costs

4. Competitive Advantages

• Quality Consistency:
  • Manufactured under strict IEC 61439 quality control processes
  • Stable electrical performance with precise conductor alignment and insulation technology
  • Factory-tested assemblies ensure dependable field operation
• Supply Reliability:
  • Suitable for large-scale infrastructure and industrial procurement programs
  • Consistent production capacity for project-based and recurring supply requirements
• Logistics Capability:
  • Export-ready packaging designed for global transportation
  • Modular design reduces shipping volume and simplifies installation handling
• Price Competitiveness:
  • Lower total ownership cost through reduced installation labor, maintenance requirements, and energy losses
  • Competitive alternative to extensive cable-based distribution networks
• Sustainability Benefits:
  • Improved energy efficiency through reduced transmission losses
  • Copper and aluminum conductor materials support recycling and circular economy initiatives
  • Compact design minimizes material usage and installation footprint
• Technical Support & Documentation:
  • Available with IEC 61439 test reports, technical drawings, installation manuals, and compliance documentation
  • Engineering support available for customized current ratings, layouts, and project specifications

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity (MT per Container):
  • Approximately 18–22 MT per 20-foot container depending on configuration, dimensions, and packaging requirements
  • Customized loading solutions available for large-scale project shipments
