Ball mill liner

Description

1. Product Overview
   Ball mill liners are engineered wear-resistant components fitted inside industrial ball mills to protect the mill shell, maintain grinding efficiency, and optimize media motion. Primarily used in mining, cement, minerals processing, and bulk chemical grinding operations, these liners enable continuous, high-throughput comminution while minimizing downtime. Our liners combine hardened alloy steel and modular designs to deliver superior abrasion and impact resistance, extending service life and lowering total cost of ownership. Strategically, reliable liners reduce unplanned maintenance, improve mill availability, and directly boost plant throughput and product quality — making them a high-impact sourcing decision for large-scale operations.

2. Key Specifications & Technical Characteristics

• Material composition: High-chrome white cast iron (≥18% Cr) or alloyed Mn-steel (Mn 12–14%), with options for Ni-hard, composite rubber-steel, or ceramic-faced modules.

• Hardness: Typical as-cast surface hardness 55–64 HRC (chrome cast), Mn-steel work-hardened to 250–350 HB depending on service; rubber options shore A 70–85.

• Tensile strength: Alloyed grades 500–800 MPa (depending on specification).

• Impact toughness: Optimized by grade; Mn-steel offers high toughness for heavy impact; high-chrome offers high wear resistance for abrasive duties.

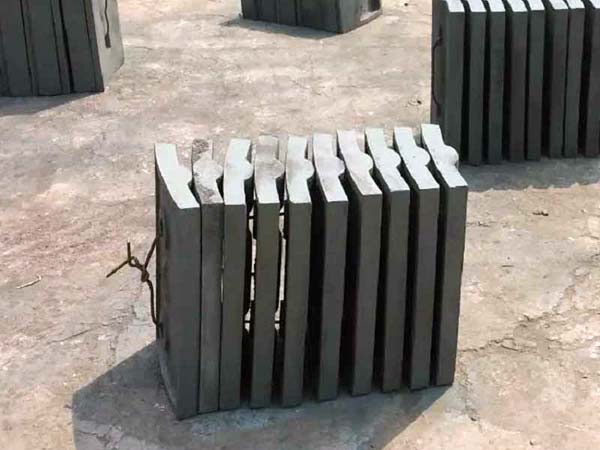

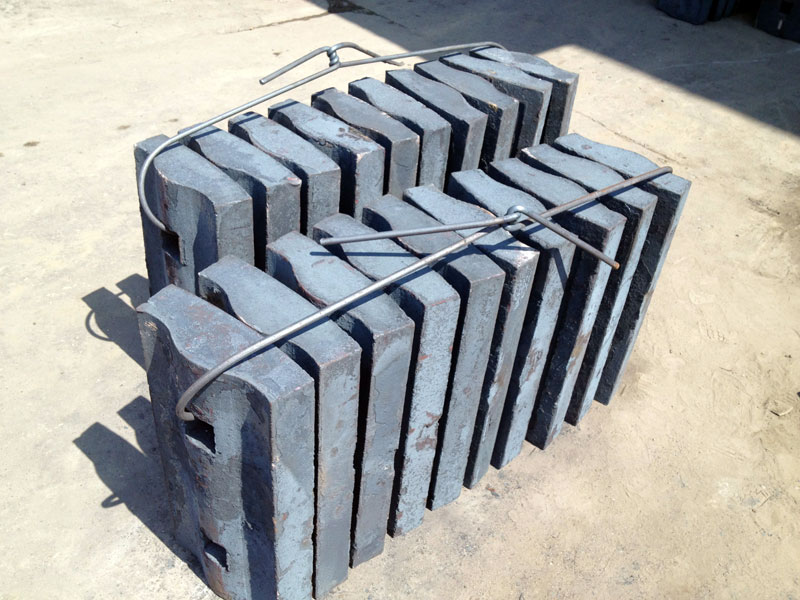

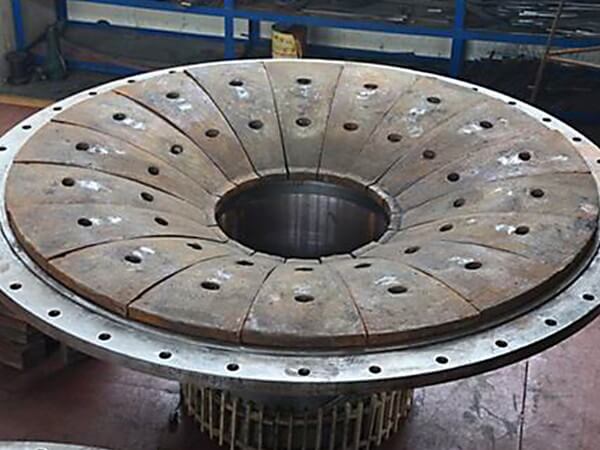

• Typical liner forms: Shell plates, lifter bars, end liners, diaphragm plates, grate plates, feed/discharge liners, and custom-shaped segments.

• Typical dimensions: Custom-manufactured to mill diameter and length; standard segment heights 50–400 mm, thickness 10–80 mm (subject to mill design).

• Weight tolerance: ±3% per segment; full liner set tolerance ±1% based on engineered drawing.

• Surface finish: As-cast or machined mounting faces; key/keyway and bolt-hole patterns per OEM drawing.

• Mounting: Bolt-on or pin-lock systems; compatible with common OEMs (e.g., Metso, FLSmidth, CITIC).

• Coatings/secondary treatments: Heat treatment, shot peening, ceramic overlays, rubber bonding, or chrome plating available on request.

• Packaging options: Wooden crate, palletized, sea/air-worthy packing with anti-corrosion wrapping; bulk lift-pack for container shipment.

• Shelf life: Not applicable for metal liners; recommended storage dry and covered to prevent surface corrosion.

• Compliance: Manufactured to ISO 9001/ISO 14001 quality systems on request; material certification (MTC) available per order.

3. Core Industrial Applications

• Mining (ore comminution): Primary liners for primary and secondary ball mills processing ores (iron, copper, gold, nickel). Designed to maintain consistent media cascades and reduce liner wear, improving liberation rates and downstream recovery.

• Cement industry: Mill liners for finish grinding and raw grinding mills that withstand abrasive clinker and high-impact conditions while maintaining energy-efficient grinding motion.

• Minerals & aggregates: Grinding of industrial minerals (limestone, barytes, silica) where abrasion resistance controls operating cost and downtime.

• Chemical & bulk solids processing: Specialty liners (rubber or composite) for mills processing chemically sensitive or sticky materials, reducing contamination and easing maintenance.
  Why it outperforms alternatives: Engineered metallurgy and profile design tune impact resistance and abrasion life to specific operating regimes; modular segment design reduces replacement time and spare inventory; options for rubber or ceramic facing reduce noise and vibration and increase service life in corrosive or sticky feed scenarios. Net commercial benefits include higher throughput, longer intervals between shutdowns, and lower lifecycle cost versus one-size-fits-all liners.

4. Competitive Advantages

• Quality consistency: In-house metallurgical control and inspection protocols ensure repeatable hardness, chemistry, and mechanical properties across batches.

• Supply reliability: Production capacity and strategic inventory locations support bulk deliveries and emergency replacements for continuous operations.

• Logistics capability: Support for FCL/LCL containerization, breakbulk, and project cargo; coordinated export packing and handling to minimize damage and customs delays.

• Price competitiveness: Tiered pricing by volume (MOQ discounts), long-term contract pricing, and total-cost-of-ownership focus that emphasizes reduced downtime and replacement frequency.

• Sustainability: Longer-lasting liners reduce scrap and consumption of raw materials; optional remanufacturing and recycling programs for worn segments.

• Technical support: Engineering fitment reviews, CAD/drawing verification, wear-life modeling, on-site installation guidance, and full material test certificates and inspection reports available.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical 20-foot container up to 20–22 MT depending on packing; 40-foot container up to 24–26 MT depending on segment geometry and packing efficiency.
