Air handling unit (AHU)

Description

Product Overview

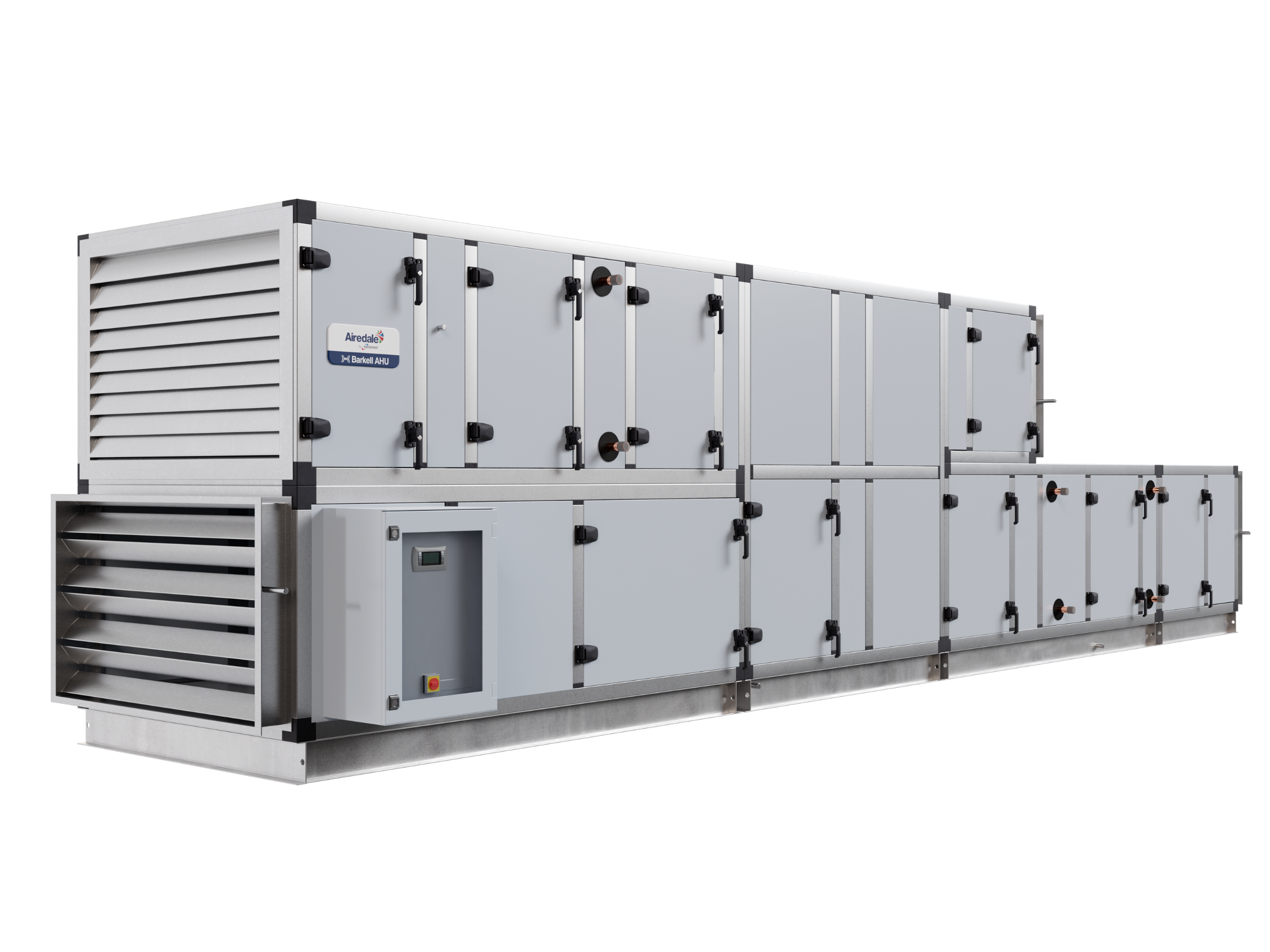

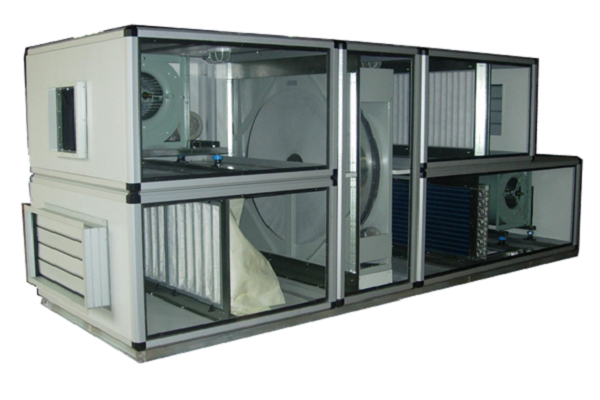

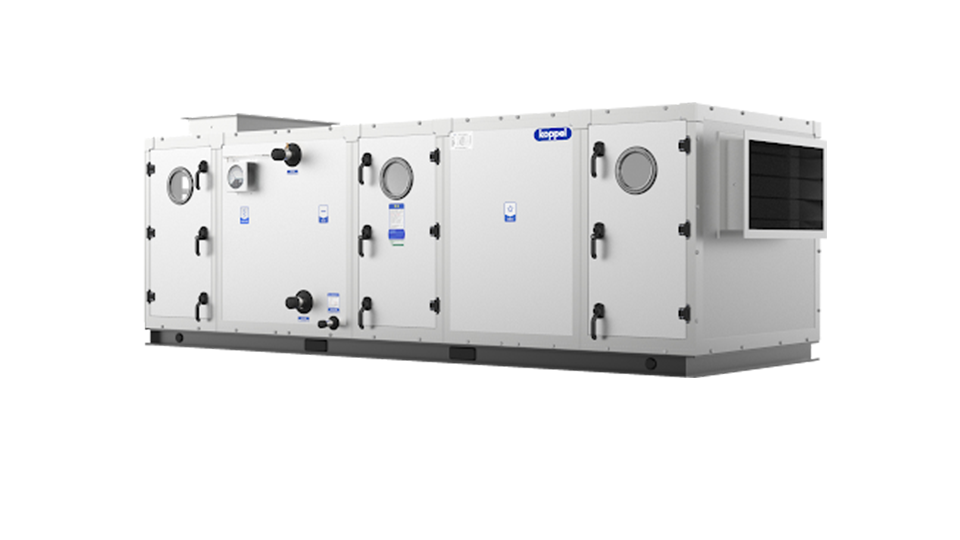

Air handling unit (AHU): a robust, industrial-grade modular HVAC assembly designed to condition and circulate large volumes of air for commercial and industrial facilities. Primarily used in manufacturing plants, pharmaceutical cleanrooms, data centers, hospitals, and large commercial buildings, the AHU delivers controlled temperature, humidity, filtration, and airflow to meet stringent process and occupant-environment requirements. Key value proposition: scalable, energy-efficient air treatment with precise environmental control that protects product quality, ensures regulatory compliance, and reduces lifecycle operating costs. Strategically important because centralized air management directly impacts product yields, regulatory certification (e.g., GMP, ISO), equipment longevity, and operational energy expenditure across high-value industrial processes.

Key Specifications & Technical Characteristics

• Construction materials: galvanised steel casing as standard; optional stainless steel (304/316) for corrosive or hygienic environments.

• Thermal insulation: Class 0/1 fire-retardant foam or mineral wool options, thickness per customer spec.

• Fan modules: forward-curved or backward-inclined centrifugal fans, direct-drive or belt-drive configurations; variable frequency drive (VFD) compatible.

• Filters: multi-stage filtration capability (G4 to H14/HEPA), pocket and bag filter frames, optional activated carbon or ULPA modules.

• Coils: heating and cooling coil options—copper tubes with aluminum fins, stainless steel coils for special fluids; DX coil and chilled/hot water coil compatibility.

• Heat recovery: options include plate heat exchangers, rotary heat wheels, enthalpy wheels, and run-around coil loops.

• Control and instrumentation: PLC/BMS-ready controls, integrated sensors for temperature, RH, differential pressure, CO2, and static pressure; BACnet/Modbus/OPC compatibility.

• Sound attenuation: integrated silencer sections and acoustic insulation to meet site dB(A) requirements.

• Airflow capacity: scalable from small packaged units to large modular assemblies handling from several hundred up to tens of thousands of m3/h.

• Leakage class: supply and return casing leakage to meet industry standards (e.g., EN 1886).

• Sealing & access: gasketed access panels, easy-to-service filter bays and coil access.

• Finish and painting: industrial epoxy/polyurethane coatings for extended corrosion resistance.

• Physical characteristics: modular dimensions per customer layout; unit weights vary with configuration; design for rooftop, indoor mechanical rooms, or mezzanine installation.

• Packaging options: factory-sealed crates, shrink-wrap protection for components, knock-down (modular) packing for container shipping.

• Shelf life / storage: not applicable as mechanical equipment; recommended indoor, dry storage; protective measures for prolonged storage documented in handling instructions.

Core Industrial Applications

• Pharmaceuticals & biotech: cleanroom air supply, GMP-compliant environmental control for production, filling, and aseptic areas; supports HEPA filtration, tight humidity control, and validated airflow patterns.

• Data centers & telecom: precise temperature and humidity control to protect high-density electronics; integration with economizers and heat-recovery to optimize PUE.

• Food & beverage processing: controlled ventilation for ingredient handling, processing halls, and packaging lines; hygienic stainless-steel options reduce contamination risk.

• Healthcare & hospitals: isolation rooms, operating theatres, and HVAC for patient wards requiring HEPA filtration and strict air-change rates.

• Industrial manufacturing: paint booths, machining, semiconductor fabs, and laboratories requiring contaminant control, solvent fume management, or temperature stabilization.
  Why it performs better than alternatives: modular, application-specific design enables exact matching of filtration, thermal, and airflow requirements rather than over- or under-sized generic units; integrated controls and energy recovery reduce operating costs and improve process stability. Durability and serviceability lower total cost of ownership (TCO) compared with low-spec packaged systems.

Competitive Advantages

• Quality consistency: factory-tested modules and documented QA/QC processes ensure repeatable performance and easier validation for regulated industries.

• Supply reliability: established manufacturing lead times, modular production lines, and regional distribution partnerships to support repeat and large-scale orders.

• Logistics capability: engineered for containerized shipping (knock-down options), rooftop lift kits, and on-site assembly services to minimize installation time and risk.

• Price competitiveness: configurable options allow buyers to balance capital cost against efficiency and lifecycle savings; bulk purchasing programs for multi-unit projects.

• Sustainability benefits: options for energy recovery wheels, high-efficiency fans, low-pressure-drop filters, and optimized controls to reduce energy consumption and carbon footprint.

• Technical support & documentation: comprehensive datasheets, AS-built drawings, commissioning protocols, spare-parts lists, maintenance manuals, and on-request site engineering and start-up support.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Loading capacity depends on unit configuration and packing; typical container loading guidance provided per project:

  • 20-foot container: up to ~8–12 MT (modular sections, limited footprint)

  • 40-foot HC container: up to ~20–24 MT (preferred for larger modules)
    Final loading plan supplied after configuration sign-off to maximize container utilization and minimize freight cost.
