Air Filter Regulator Lubricator Unit FRL

Description

Product Overview

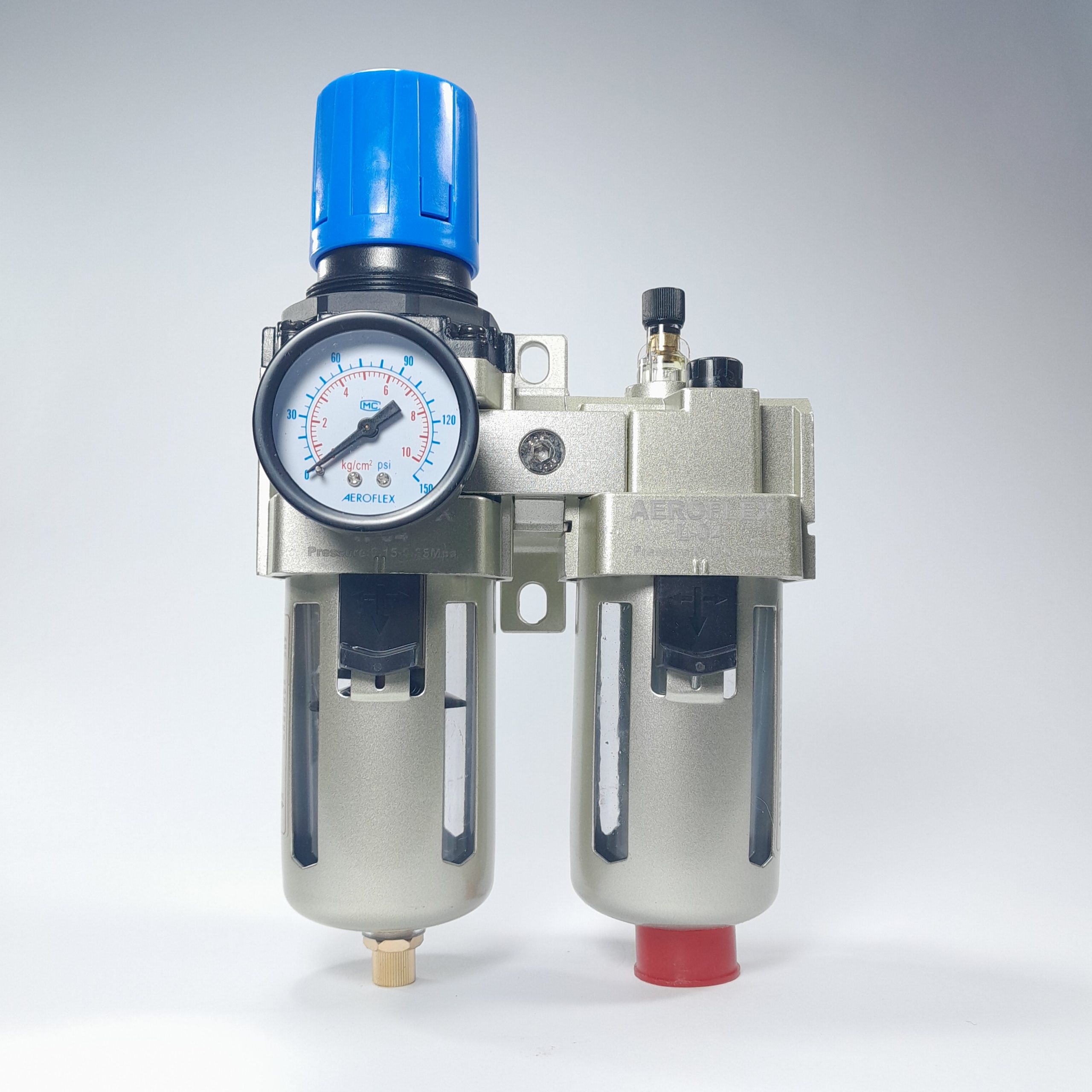

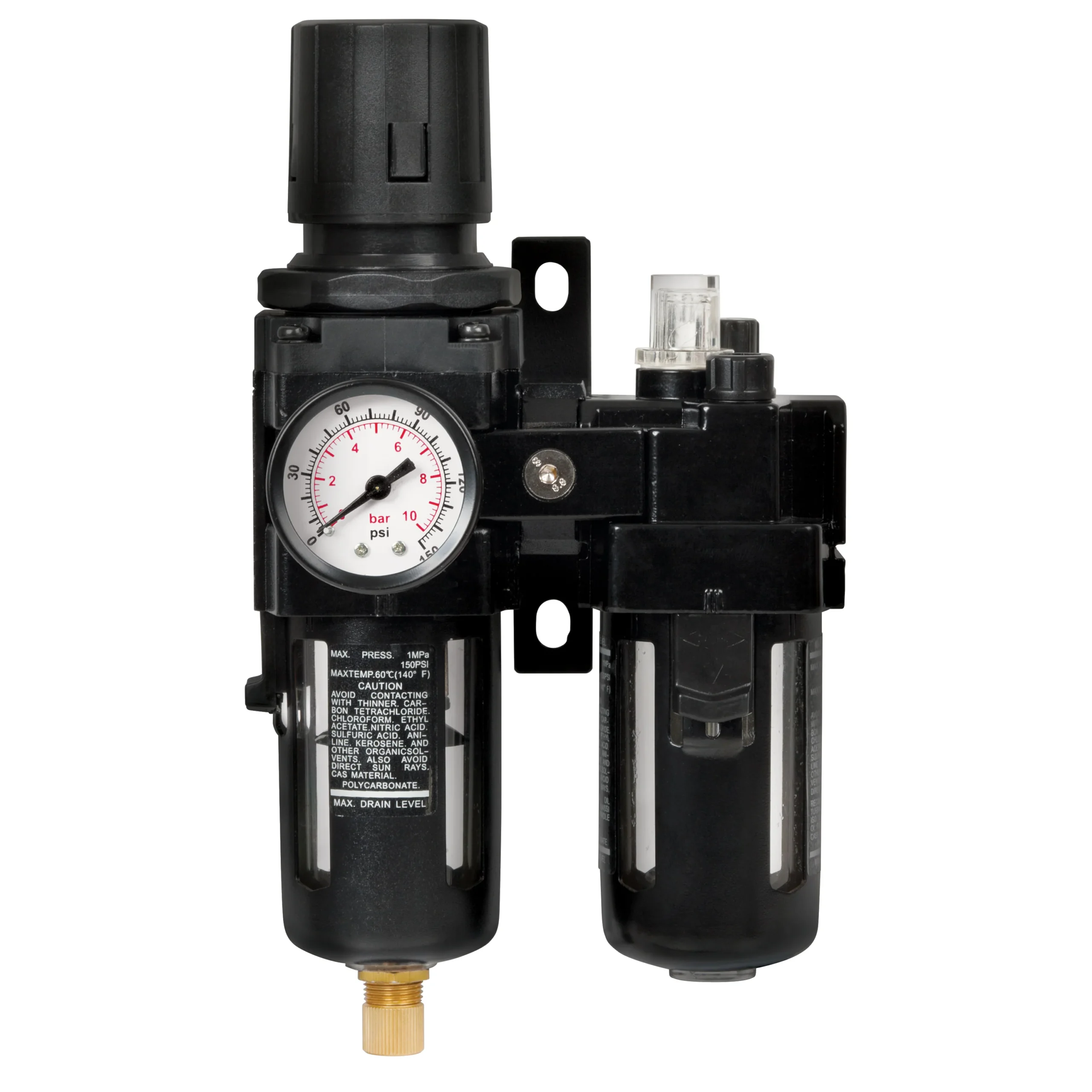

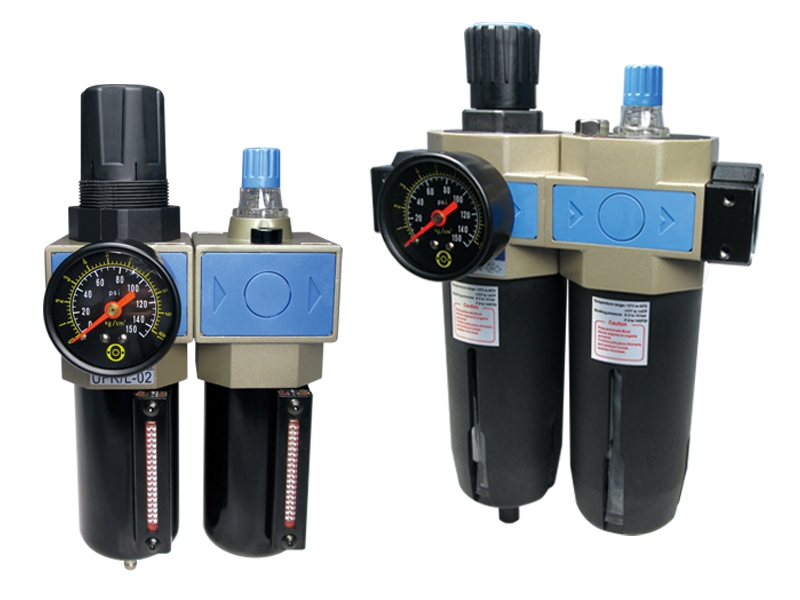

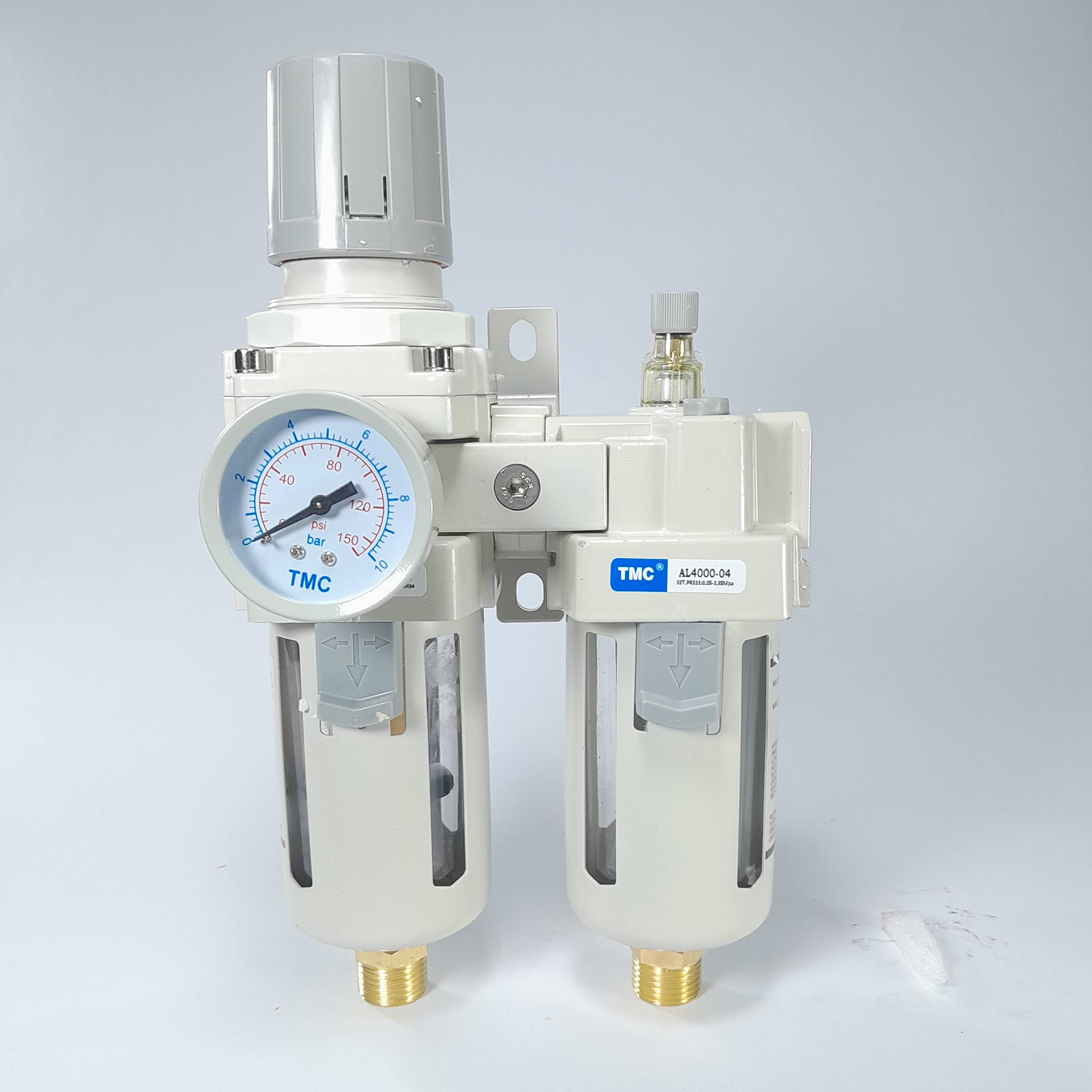

The Air Filter Regulator Lubricator Unit (FRL) is an integrated pneumatic air preparation assembly that conditions compressed air for industrial automation and process control systems. It combines filtration, pressure regulation, and controlled lubrication to remove particulates and condensate, deliver stable downstream pressure, and protect pneumatic actuators and valves. The FRL significantly extends component service life, reduces unplanned downtime, and improves process repeatability—critical for high-throughput manufacturing and mission-critical facilities. Strategically, this FRL is a frontline quality-control device that safeguards production uptime and reduces total cost of ownership across plants, utilities, and large-scale OEM deployments.

Key Specifications & Technical Characteristics

• Material construction: Die-cast aluminum housing, corrosion-resistant steel internal components, nitrile (NBR) seals; optional stainless-steel wetted parts (316L) for corrosive environments.

• Filtration element: Replaceable synthetic fiber filter media with 5 µm nominal filtration efficiency (options: 1 µm, 10 µm).

• Pressure regulation range: 0–10 bar (0–145 psi) standard; precision regulator with ±0.2 bar stability; optional extended range to 16 bar.

• Lubricator delivery: Adjustable micro-droplet drip feed, calibrated to 0–10 drops/min; compatible with ISO VG32–150 pneumatic oils.

• Port sizes: BSPP and NPT thread options, standard sizes 1/4″, 3/8″, 1/2″ (other sizes on request).

• Flow capacity (Cv): Typical models delivered: 0.25–1.2 Cv depending on port size; published flow curves available on request.

• Operating temperature: -20°C to +60°C (standard); -40°C to +80°C with low-temperature or high-temperature options.

• Bowl capacity and material: 0.08–0.25 L polycarbonate bowl (standard) with metal guard; optional metal bowls for high-pressure or thermal environments.

• Drain options: Manual and auto condensate drain options (timed or zero-loss electronically controlled drains).

• Mounting: DIN-rail and panel mounting kits included; modular design for in-line or manifold installations.

• Compliance and testing: Factory-tested for leak rate, regulated pressure accuracy; optional certifications: CE, ISO 8573 particulate standards support, ATEX-certified variants for explosive atmospheres.

• Packaging options: Individual boxed units with protective caps; palletized drums for manifold assemblies; custom crating for containerized shipments.

• Shelf life: Not applicable for mechanical FRL units; recommend dry storage and protection from UV and corrosive atmospheres; warranty and service life data provided per model.

Core Industrial Applications

• Primary industries: Automotive manufacturing, food & beverage processing, oil & gas instrumentation, pharmaceuticals, semiconductor fabrication, heavy machinery, packaging and logistics automation.

• Specific operational uses: Protecting pneumatic valves and cylinders in assembly lines, stabilizing pressure for process control instruments, conditioning air for precision actuators in pick-and-place equipment, and delivering metered lubrication to extend seal and bearing life.

• Why it outperforms alternatives: Integrated three-function design reduces footprint and leak points compared with separate components; precision regulator delivers tighter pressure stability than generic regulators, reducing scrap and rework in tolerance-sensitive processes. Replaceable high-efficiency filter elements and optional stainless wetted parts provide higher contamination control and longer mean time between failures (MTBF) in corrosive or particulate-heavy environments.

• Commercial relevance: Lower lifetime maintenance costs through reduced component wear, fewer unplanned stops, and simplified spare-parts strategy; modular options enable easy field upgrades without full assembly replacement.

Competitive Advantages

• Quality consistency: Factory-assembled and calibrated units with batch traceability and serial-numbered components for QA records.

• Supply reliability: Standardized SKUs in regional distribution centers, with capacity to scale production for OEM projects and recurring MRO contracts.

• Logistics capability: Configurable for LCL, FCL, and palletized air-freight; optimized packing reduces volumetric weight and damage risk in long-haul shipments.

• Price competitiveness: Tiered pricing for volume buys, long-term supply agreements, and OEM channel partnerships that reduce per-unit acquisition cost.

• Sustainability benefits: Durable construction reduces replacement frequency; optional metal bowls and recyclable packaging available to lower lifecycle environmental impact.

• Technical support: Comprehensive documentation (installation guides, dimensional drawings, flow curves), on-demand CAD models, and engineering support for system integration; preventative maintenance schedules and spare-parts kits available.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Calculated per packaging configuration; typical 20-foot container capacity ranges from 9–12 MT depending on packed volume and protective crating; 40-foot container capacity ranges from 20–24 MT. Exact loading plan provided upon order confirmation based on selected packaging and model mix.
