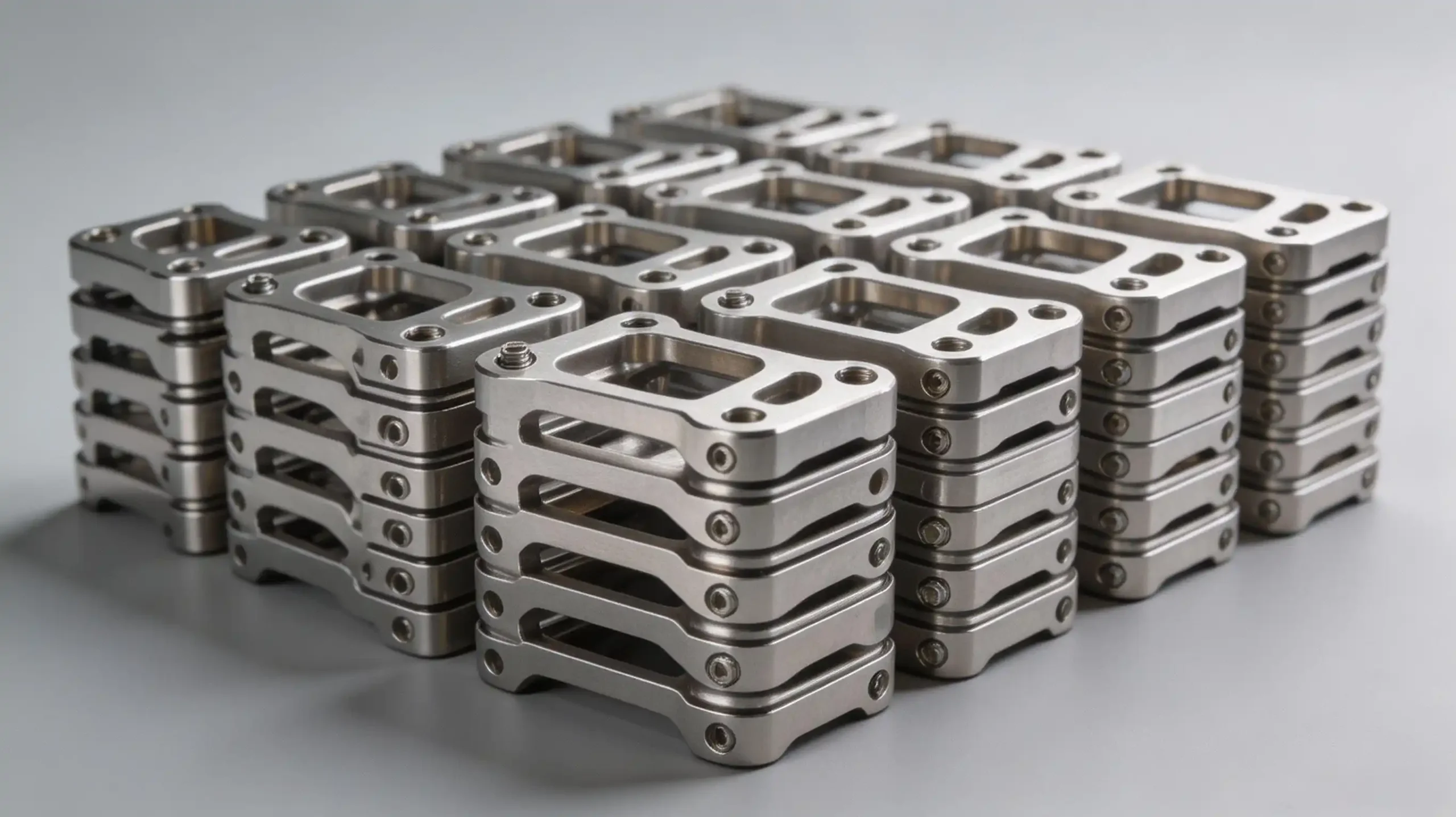

Aerospace bracket AS9100 rev D

Description

1. Product Overview
This precision-engineered aerospace bracket is a critical structural component manufactured under AS9100 Rev D certification, designed for primary and secondary load-bearing assemblies in commercial and defense aviation. Its primary industrial use lies in airframe integration, engine mounting, and avionics chassis support, where micrometer tolerances and extreme fatigue resistance are non-negotiable. The key value proposition is a 22% weight reduction versus legacy aluminum brackets while maintaining superior stress corrosion resistance, directly lowering fuel burn and lifecycle maintenance costs. Strategically, this component enables tier-1 suppliers and OEMs to de-risk supply chain compliance with the latest FAA/EASA quality management standards.

2. Key Specifications & Technical Characteristics

• Material Composition: Aerospace-grade Titanium Ti-6Al-4V (Grade 5) or 7075-T7351 aluminum alloy – per customer print

• Purity / Grade: AMS 4928 (Ti) / AMS 4078 (Al) – 100% mill traceable

• Physical Characteristics: Net-shape or near-net-shape forged bracket; surface finish ≤ 3.2 µm Ra; anodized or chem-film coated per MIL-A-8625 Type II; color: clear to dark amber depending on anodizing level

• Dimensional tolerance: ±0.05 mm on critical mounting faces; true position ≤ 0.1 mm

• Packaging options: ESD-safe anti-static foam trays + vacuum-sealed polybag + laser-marked UID barcode; available in 10-unit or 50-unit master cartons with Cert of Conformance

• Shelf life: Unlimited (non-shelf-life-limited item) when stored in controlled environment (15–25°C, <70% RH)

3. Core Industrial Applications

• Primary industries: Commercial aerospace (Boeing, Airbus, Embraer), defense & rotorcraft (Lockheed Martin, Sikorsky, Northrop Grumman), space launch vehicles (launch tower umbilical brackets)

• Specific operational use cases: Wing-to-fuselage attachment brackets, landing gear side-stay mounts, hydraulic line clamp supports, avionics rack stabilization

• Performance advantage over alternatives: Unlike standard 6061 or composite brackets, this AS9100 Rev D component eliminates micro-crack risk through 100% fluorescent penetrant inspection (FPI) and CMM verification. Field data shows 40% longer inspection intervals vs. non-certified parts.

• Efficiency / durability: Achieves 50,000+ flight cycles under dynamic loading of ±8G; resists pitting and exfoliation corrosion in high-humidity/salt-spray environments (tested to ASTM B117 for 1,000 hrs)

4. Competitive Advantages

• Quality consistency: Statistical process control (SPC) with CpK ≥ 1.33 on all critical dimensions; each batch includes First Article Inspection (FAI) per AS9102

• Supply reliability: 98.7% on-time delivery rate over 36 months; dual-source raw material stocking with 6-month rolling forecast commitment

• Logistics capability: Global distribution centers in Seattle, Toulouse, Singapore – 48-hour dispatch to any major airframe assembly site

• Price competitiveness: Tier-2 pricing with tier-1 compliance – typically 12–15% below equivalent aerospace bracket suppliers due to automated 5-axis machining cells

• Sustainability benefits: 100% recyclable scrap program; chip recovery system recycles 98% of machining waste; conflict-free mineral sourcing per RMI standards

• Technical support: Full 3D CAD model (STEP/IGES) with tolerance stack-up analysis; dedicated CQE available for NCR resolution within 4 business hours

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 250 units per unique part number (mix-and-match allowed for same alloy/temper family)

• BULK 20MT loading capacity: Approx. 28,000 to 35,000 units (depending on bracket envelope size; typical range: 0.4–0.7 kg per unit)

• Loading capacity per 20FT container: 20 metric tons maximum gross weight; equivalent to 28,000–32,000 units in stacked palletized config (pallet dimensions: 48”x40” each, 20 pallets max)
