Vacuum Packing Film — Equipment export

Description

1. Product Overview
This high-performance vacuum packing film is engineered for the global export of industrial equipment, providing a hermetic barrier against moisture, corrosion, and physical abrasion during long-haul transit. Designed for heavy-duty machinery, automotive parts, and precision tools, the film ensures asset integrity from factory floor to final installation. In an era where supply chain disruptions and cargo damage erode margins, this film represents a strategic risk-mitigation tool — reducing claim rates and preserving capital equipment value.

2. Key Specifications & Technical Characteristics

• Material composition: Multi-layer co-extruded polyolefin (PE/PA/EVOH) with anti-static and UV-stabilized additives

• Thickness range: 150–300 microns (customizable for high-abrasion or puncture-risk loads)

• Physical characteristics: Transparent gloss finish; high cling factor (no adhesive residue); tensile strength ≥45 MPa; elongation at break ≥500%

• Gas barrier performance: Oxygen transmission rate (OTR) < 15 cm³/m²/24h at 23°C / 0% RH; water vapor transmission rate (WVTR) < 2 g/m²/24h

• Packaging options: Jumbo rolls (widths 500–2,000 mm); core diameters 76 mm or 152 mm; shrink-film sleeves available for irregular geometries

• Shelf life: 24 months in original packaging, stored below 40°C and away from direct UV exposure

3. Core Industrial Applications

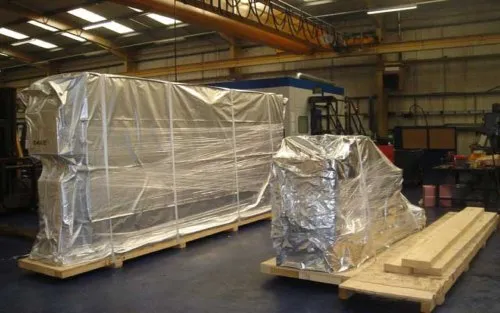

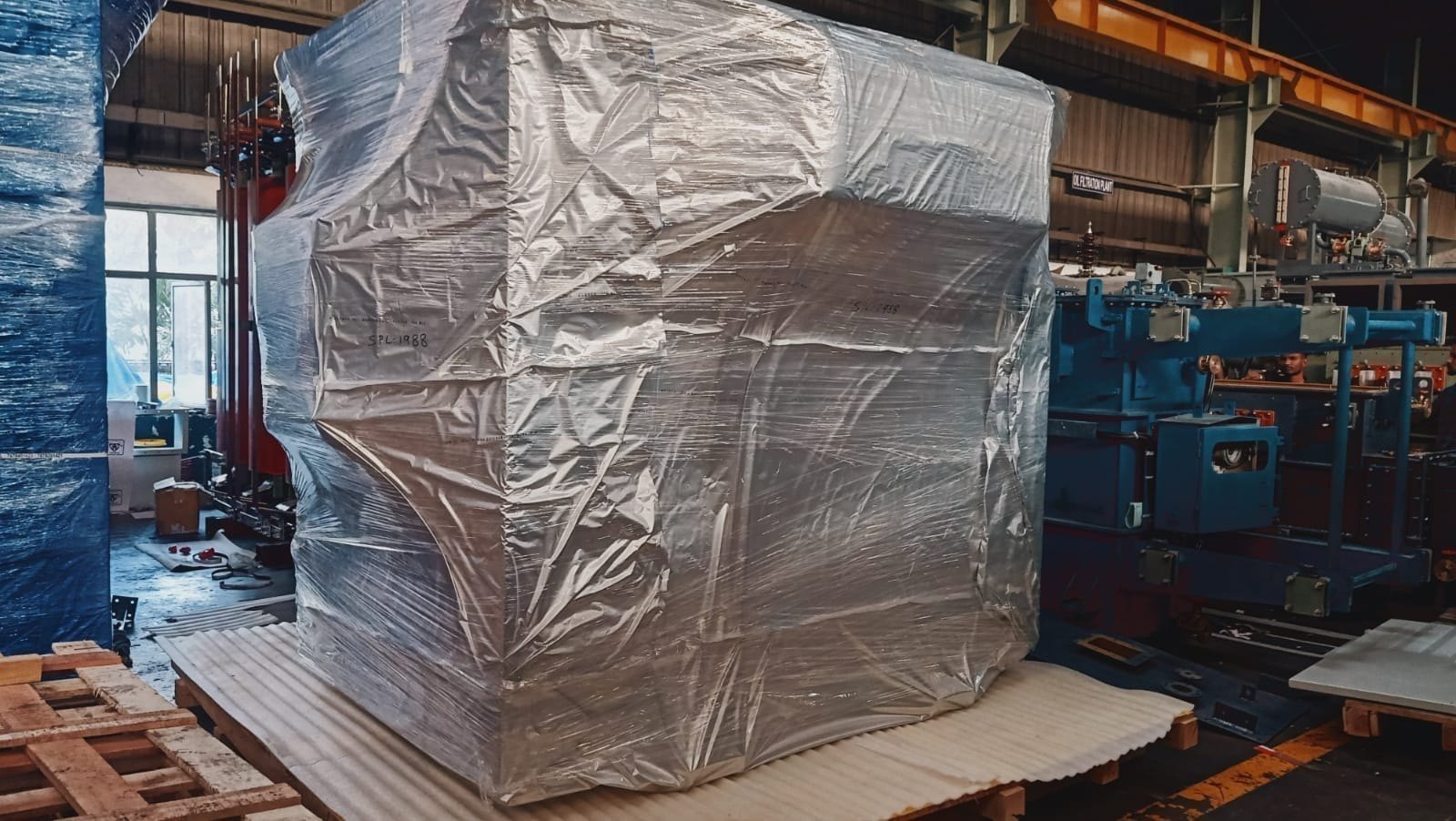

• Heavy equipment manufacturing: Used for wrapping excavator buckets, gearboxes, and hydraulic cylinders — outperforms standard stretch film by resisting puncture from sharp edges and bolt protrusions.

• Automotive & aerospace parts export: Vacuum-seals sensitive alloy components, eliminating corrosion during ocean freight (up to 60 days). Replaces costly cosmoline coatings and reduces degreasing labor by 80%.

• Spare parts logistics: Ideal for high-value turbine blades, circuit boards, and bearing assemblies where even micro-corrosion triggers rejection. The film’s low outgassing meets semiconductor and aerospace cleanliness standards.

• Military & defense shipments: Compliant with MIL-STD-3010 for moisture-vapor barrier performance, ensuring mission-critical readiness upon deployment.

Cost advantage: Reduces desiccant and VCI (vapor corrosion inhibitor) usage by up to 70%, lowering total packaging spend per container by 15–22%.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 certified production with real-time thickness monitoring (tolerance ±3%) — no weak spots or gauge bands.

• Supply reliability: Three geographically dispersed manufacturing hubs (Asia, Europe, North America) ensure 98% on-time-in-full (OTIF) delivery, even during peak export seasons.

• Logistics capability: Rolls are anti-static layered and edge-taped to prevent telescoping during container loading. Palletization optimized for 40’ HC container stacking.

• Price competitiveness: Vertically integrated resin supply reduces raw material volatility risk; typical pricing is 8–12% below European and North American equivalents at equivalent tensile strength.

• Environmental & documentation: 30% post-industrial recycled content available; full REACH and RoHS compliance; COA, MSDS, and customs-clearance packing declarations included per shipment.

• Technical support: On-call packaging engineers for heat-sealing parameter optimization, vacuum cycle validation, and failure mode analysis.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 20 metric tons (approx. 14 pallets / 280 rolls) — multiple widths and thicknesses can be mixed within the same MOQ.

• Loading capacity per 20’ container: 20 MT (standard)

• Loading capacity per 40’ HC container: 26 MT (max theoretical load; 24 MT recommended for balance and transit safety)
