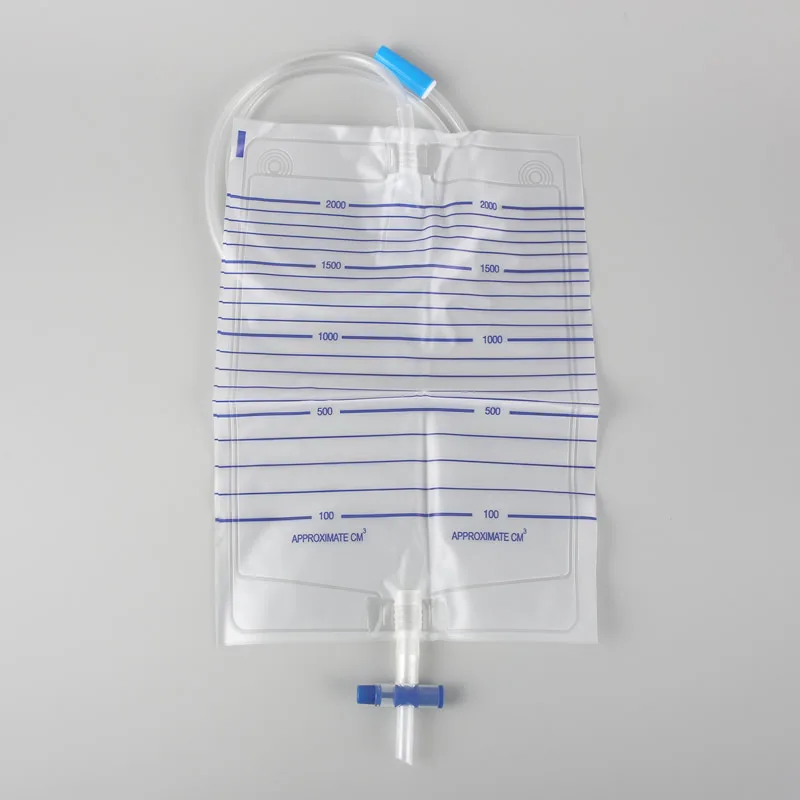

Urine Collection Bag 2000ml T Valve Type

Description

1. Product Overview

The Urine Collection Bag 2000ml T Valve Type is a high-capacity, closed-system medical device engineered for postoperative and long-term urinary drainage in acute care, rehabilitation, and home healthcare settings. Its primary industrial use lies in hospitals, surgical centers, and home health supply chains where infection control, accurate volume measurement, and patient mobility are critical. The key value proposition is the combination of a large 2000ml reservoir with a premium T-valve drainage mechanism—enabling aseptic, one-handed emptying while reducing cross-contamination risk. Strategically, this product addresses the growing global demand for cost-effective, infection-mitigating urinary management solutions, positioning it as an essential SKU for B2B distributors targeting high-volume institutional buyers.

2. Key Specifications & Technical Characteristics

• Material Components: Medical-grade PVC (phthalate-free options available); T-valve: ABS polymer with silicone sealing ring; tubing: flexible PVC (length 90cm ±5cm).

• Purity / Grade: ISO 10993 biocompatibility certified; non-cytotoxic, non-irritant; USP Class VI compliant.

• Physical Characteristics:

  • Clear, graduated bag with anti-reflux valve

  • Capacity: 2000ml (50ml incremental markings)

  • Tubing inner diameter: 5mm, outer: 8mm

  • T-valve outlet: luer-compatible, leak-tested to 30kPa

  • Bag dimensions (flat): 33cm x 23cm

• Packaging Options: Individually sterile pouch (EO gas sterilized); 25 units per inner carton; 8 cartons per master export box.

• Shelf Life: 3 years from date of manufacture in unopened, original packaging (stored below 40°C, away from direct sunlight).

3. Core Industrial Applications

• Primary industries: Acute care hospitals, long-term care facilities, home healthcare distributors, surgical product suppliers, and disaster response medical kits.

• Operational use cases:

  • Postoperative bladder drainage (urology, gynecology, orthopedics)

  • Immobilized patients in ICUs

  • Nocturnal urine collection for diagnostics

  • High-output diuresis management (e.g., cardiac or renal units)

• Performance advantages vs. alternatives:

  • 2000ml capacity reduces bag change frequency by 40% compared to standard 750ml bags → lower nursing labor cost and reduced contamination events.

  • T-valve design prevents backflow and allows drip-free drainage into commode or measuring cylinder, unlike screw caps or slide clamps which require two-handed use and contact with outlet.

  • Anti-reflux valve at inlet eliminates retrograde migration of urine, outperforming gravity-only designs in infection control metrics (CAUTI reduction potential).

4. Competitive Advantages

• Quality consistency: Batch-to-batch dimensional tolerance <2%; 100% leak-tested under pressure; validated ISO 13485 manufacturing with documented lot traceability.

• Supply reliability: Dual-source raw material supply and buffer stock of 500,000 units maintained at regional hubs (Asia, EU, NA). Typical lead time: 15–25 days after order confirmation.

• Logistics capability: Efficient flat-pack design reduces cubic volume by 30% vs. rigid-container alternatives → lower freight cost.

• Price competitiveness: Tiered pricing for annual contracts >100,000 units; transparent B2B pricing with no hidden per-order surcharges.

• Sustainability: Phthalate-free PVC option available; outer packaging uses 80% recycled cardboard; waste reduction via reduced bag change frequency.

• Technical support: Full IFU, sterility validation report, and regulatory registration dossier (CE-MDR, FDA 510(k) pathway data) available upon NDA.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
  (Equivalent to approx. 2,200 master cartons or ~440,000 units, depending on packaging variant)

• Loading Capacity (MT per container):

  • 20FT standard container: 20MT (full container load, one MOQ)

  • 40FT HC container: 26MT maximum (mixed SKU consolidation possible)
