Type 2 surge protection device (SPD) — IEC 61643-11

Description

1. Product Overview

Type 2 Surge Protection Device (SPD) compliant with IEC 61643-11 is an electrical protection component designed to safeguard low-voltage power systems against transient overvoltages caused by switching operations, lightning-induced surges, and grid disturbances. It is widely used in industrial, commercial, renewable energy, and infrastructure electrical installations to protect sensitive equipment and improve system reliability. Engineered for fast response and high discharge capability, this SPD helps reduce equipment downtime, maintenance costs, and premature component failure. As power networks become increasingly digitized and equipment-dependent, reliable surge protection has become a critical requirement for modern electrical infrastructure.

2. Key Specifications & Technical Characteristics

• Product Type: Type 2 Surge Protection Device (SPD) for low-voltage electrical systems
• Applicable Standard: IEC 61643-11 compliant
• Material Components:
  • High-performance metal oxide varistor (MOV) surge protection elements
  • Flame-retardant thermoplastic housing materials
  • Copper alloy terminals and conductive components
  • Thermal disconnection and safety monitoring mechanisms
• Electrical Characteristics:
  • Nominal discharge current (In): Typically 5–20 kA depending on model configuration
  • Maximum discharge current (Imax): Typically 10–40 kA options available
  • Voltage protection level (Up): Optimized for sensitive electrical equipment protection
  • Operating voltage: Available for common low-voltage AC systems (230/400V configurations)
• Product Grade: Industrial and commercial-grade electrical protection equipment
• Physical Characteristics:

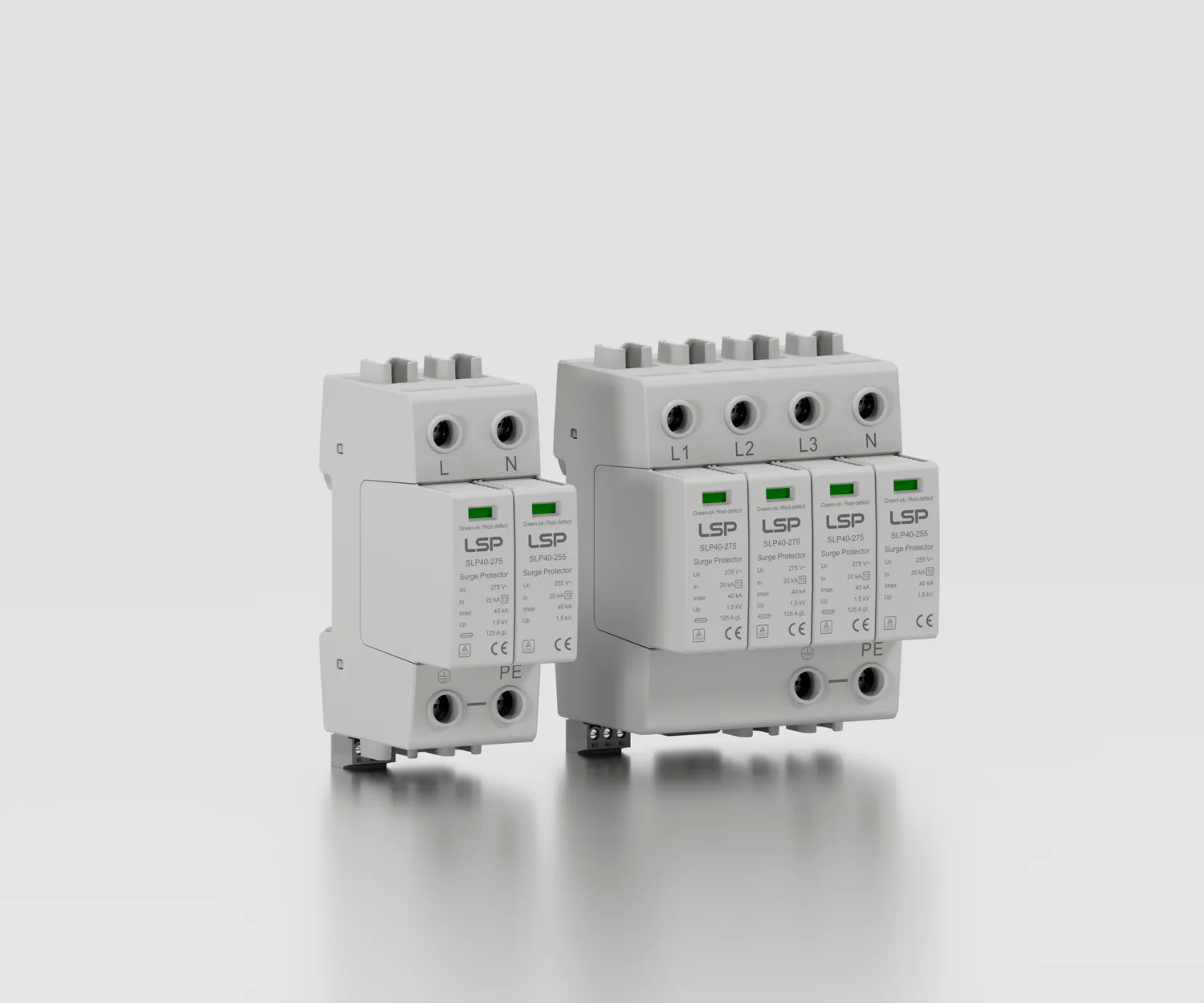

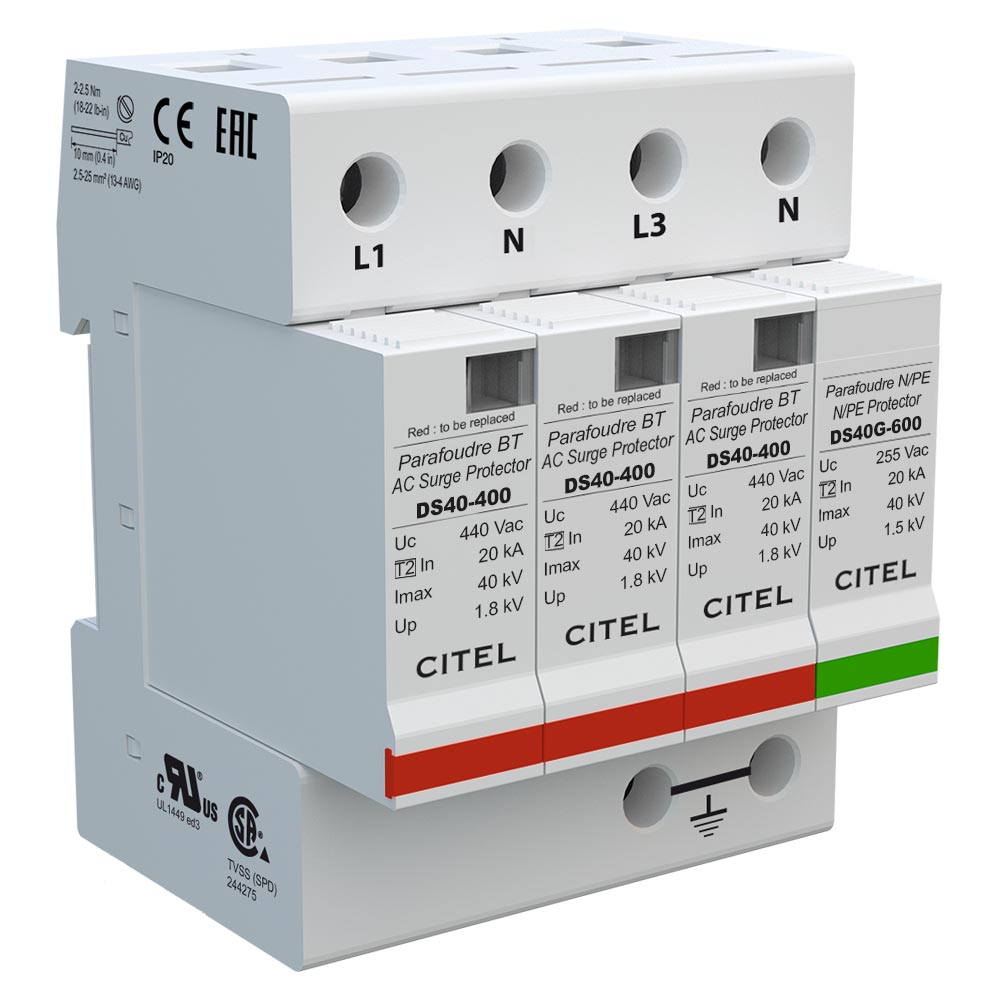

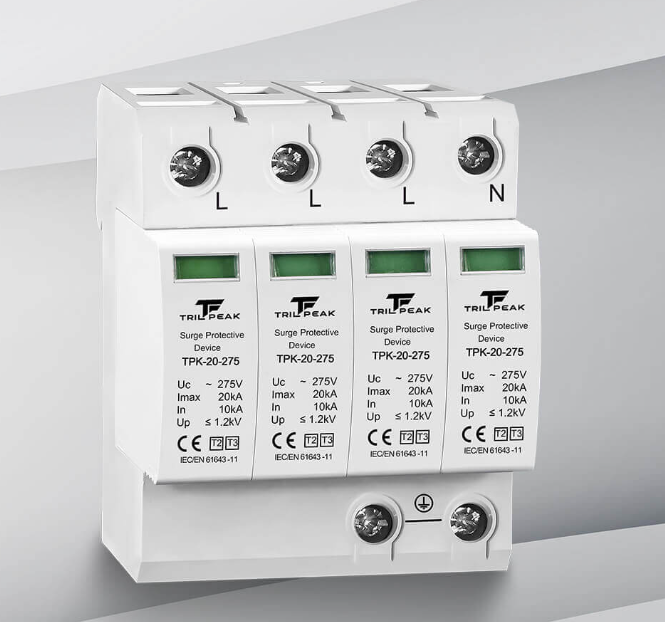

  • Compact DIN rail mounting design
  • Modular construction for easy replacement and maintenance
  • Flame-resistant enclosure with indicator status display
  • Standard colors: Grey, white, or black housing options depending on manufacturer specification
• Packaging Options: Individual cartons, protective industrial packaging, export pallets, and customized bulk packaging
• Shelf Life: Typically 5+ years when stored in dry, temperature-controlled conditions

3. Core Industrial Applications

• Primary Industries:
  • Industrial manufacturing plants
  • Commercial buildings and data centers
  • Renewable energy systems including solar PV installations
  • Telecommunications and networking infrastructure
  • Transportation and utility power systems
• Operational Use Cases:
  • Protection of electrical distribution boards and control panels
  • Safeguarding automation systems, PLCs, HVAC equipment, and industrial electronics
  • Surge protection for solar inverter systems and energy storage installations
  • Improving electrical system uptime in critical infrastructure environments
• Performance Advantages:
  • Provides rapid surge current diversion to protect downstream equipment
  • Reduces equipment damage caused by voltage spikes and electrical disturbances
  • Modular design enables efficient maintenance and lower lifecycle costs
  • Offers higher reliability compared with basic protective components without surge management capability

4. Competitive Advantages

• Quality Consistency: Manufactured under strict quality control processes with IEC 61643-11 compliance to ensure dependable electrical protection performance.
• Supply Reliability: Suitable for large-scale industrial procurement programs with stable production capacity and consistent specifications.
• Logistics Capability: Export-ready packaging designed for international shipping, bulk distribution, and project-based supply requirements.
• Price Competitiveness: Cost-efficient protection solution offering strong value compared with potential equipment replacement costs after surge events.
• Sustainability Benefits: Extends the service life of electrical equipment, reduces electronic waste, and improves energy infrastructure efficiency.
• Technical Support & Documentation: Available with technical datasheets, compliance certificates, installation guidance, and quality documentation for engineering and procurement teams.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 8–12 MT per 20-foot container (depending on packaging configuration and product dimensions)
