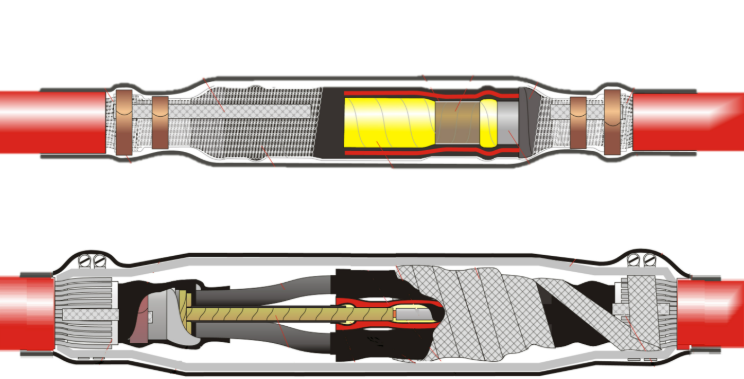

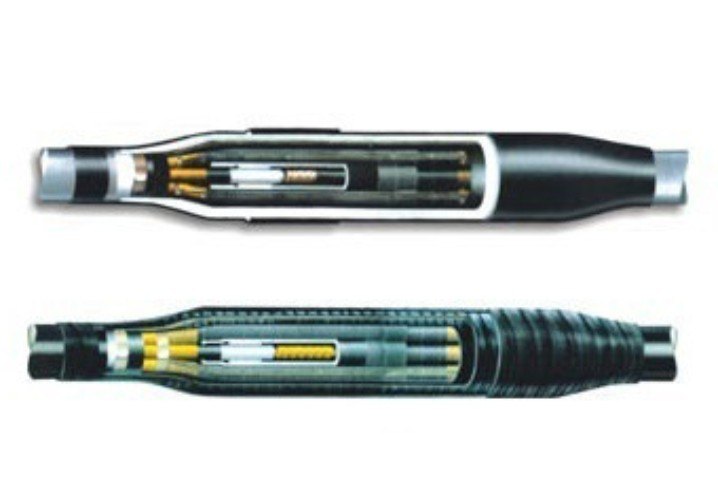

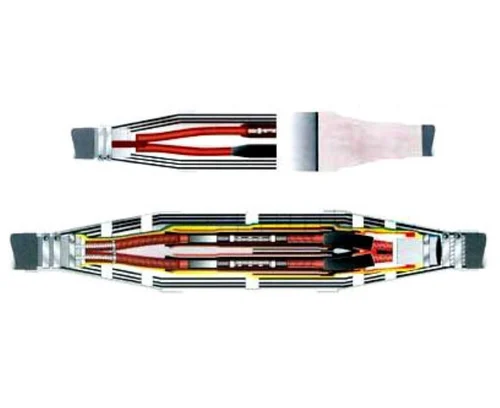

Transition Joint Kit IEC 60502

Description

1. Product Overview

Transition Joint Kit IEC 60502 is a specialized cable accessory designed for reliable connection between different cable types, typically joining XLPE insulated power cables with other cable systems while maintaining electrical integrity and mechanical protection. It is widely used in medium and high-voltage power distribution networks, renewable energy projects, industrial facilities, and utility infrastructure. Engineered according to IEC 60502 standards, the kit provides excellent insulation performance, moisture resistance, and long-term operational reliability. Its strategic importance lies in enabling safe, durable, and efficient cable network expansion, repair, and modernization worldwide.

2. Key Specifications & Technical Characteristics

• Material Components:
  • High-performance cross-linked polyethylene (XLPE) insulation components
  • Semi-conductive stress control layers
  • Silicone rubber or EPDM insulation materials
  • Copper/aluminum conductor connectors and shielding components
  • Waterproof sealing compounds and protective outer layers
• Grade / Standard Compliance:
  • Designed according to IEC 60502 cable accessory requirements
  • Suitable for medium-voltage and distribution cable systems
  • Available for different voltage classes including 6kV, 10kV, 20kV, 33kV, and above depending on configuration
• Physical Characteristics:
  • Form: Pre-engineered cable jointing assembly kit
  • Color: Typically black or application-specific insulation colors
  • Design: Compact, heat-shrink, cold-shrink, or hybrid transition joint configurations
  • Operating Temperature: Suitable for continuous underground and outdoor power applications
  • Environmental Resistance: High resistance to moisture, UV exposure, chemicals, and mechanical stress
• Packaging Options:
  • Individual protective cartons or industrial-grade wooden cases
  • Moisture-resistant packaging for international transportation
  • Customized labeling and documentation available for bulk orders
• Shelf Life:
  • Typically 24–36 months when stored under recommended dry and controlled conditions

3. Core Industrial Applications

• Power Transmission and Distribution: Used for joining and transitioning underground and overhead cable systems in utility networks.
• Renewable Energy Infrastructure: Applied in solar farms, wind power installations, and energy storage systems requiring reliable cable connections.
• Industrial Facilities: Supports electrical networks in factories, mining operations, petrochemical plants, and large commercial developments.
• Infrastructure Projects: Used in transportation systems, urban power grids, and large-scale electrical installations.

Transition Joint Kits provide superior performance compared with conventional cable joining methods by offering controlled insulation stress management, improved sealing reliability, faster installation, and reduced maintenance requirements. Their engineered design minimizes cable failures, enhances network safety, and extends service life under demanding operating conditions.

4. Competitive Advantages

• Quality Consistency: Manufactured with controlled material selection and strict quality testing to ensure dependable electrical performance.
• Supply Reliability: Stable production capacity supports utility projects, contractors, and global infrastructure suppliers.
• Logistics Capability: Export-ready packaging with technical documentation suitable for international bulk shipments.
• Price Competitiveness: Optimized manufacturing processes provide cost-effective solutions without compromising reliability.
• Sustainability Benefits: Long service life reduces replacement frequency, material waste, and lifecycle maintenance costs.
• Technical Support: Available with installation guidance, product specifications, compliance certificates, and engineering documentation.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity (MT per Container): Approximately 18–22 MT per 20-foot container depending on packaging configuration and product dimensions.
