Synthetic Lifting Sling — Lifting operations

Description

1. Product Overview

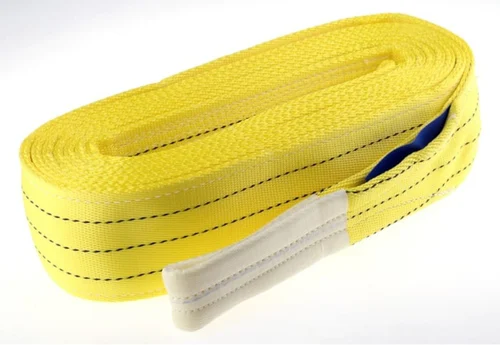

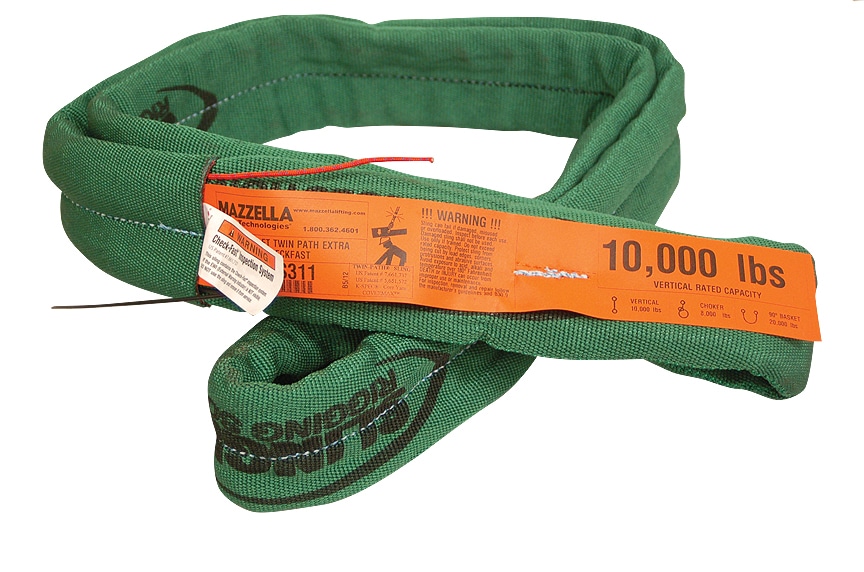

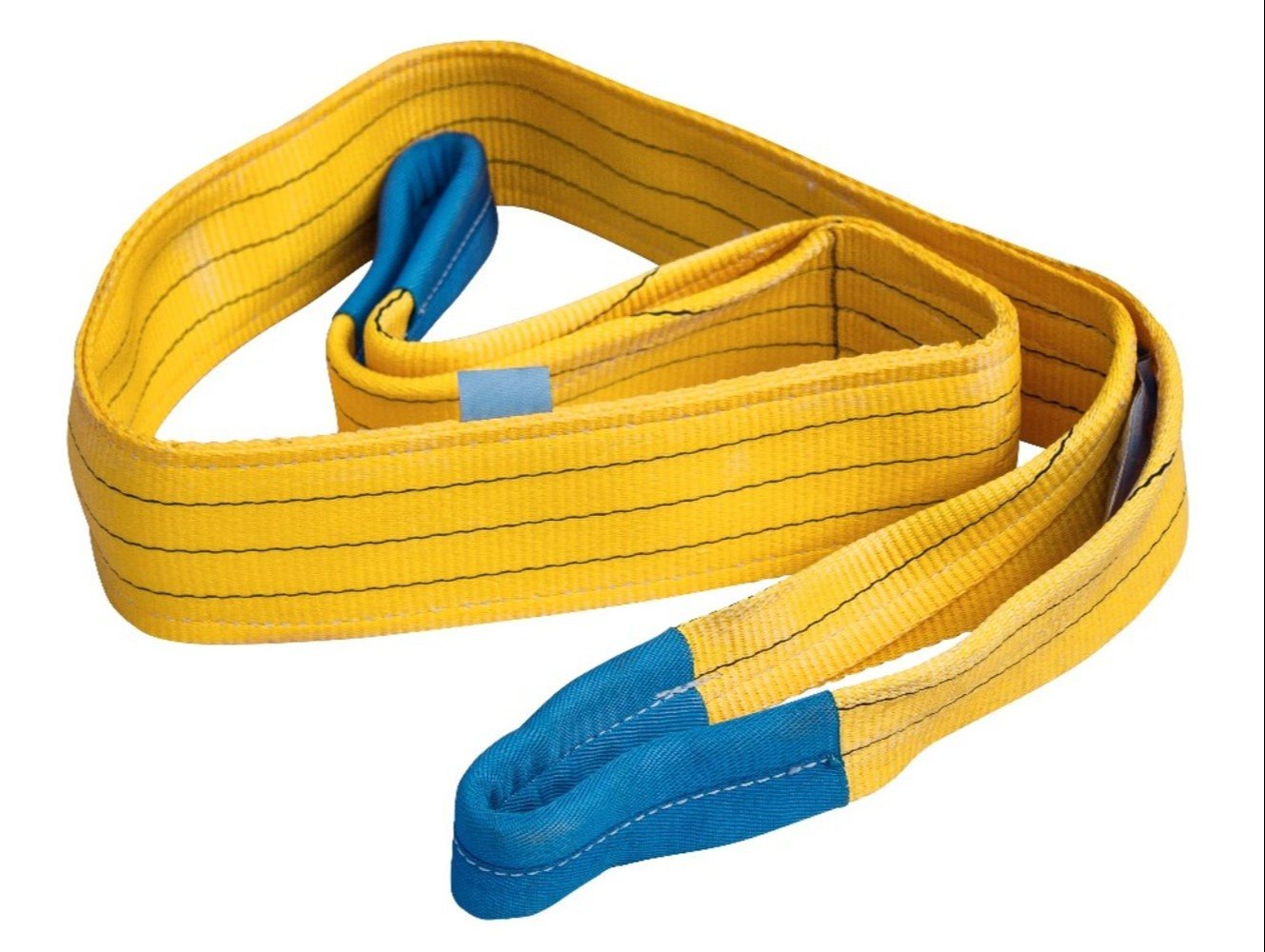

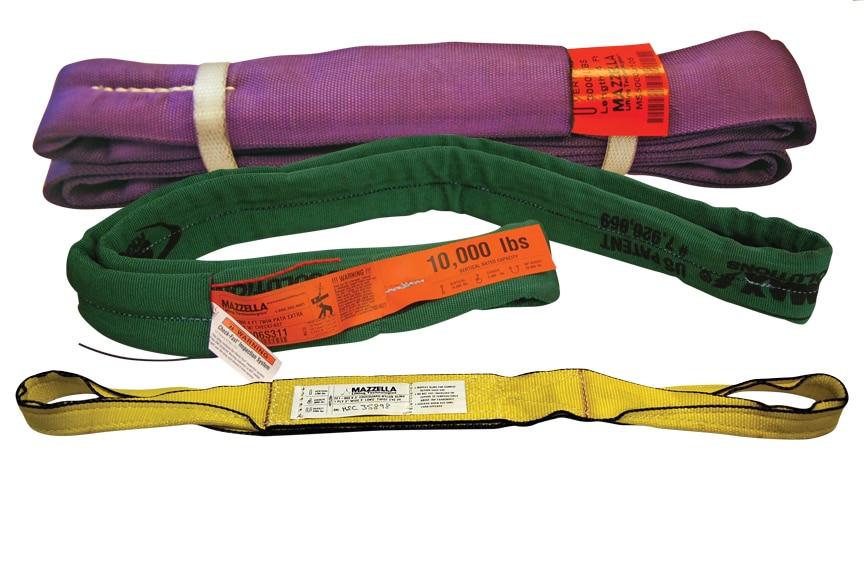

This synthetic roundsling and flat-webbing sling is manufactured from virgin polyester and nylon yarns, rated for overhead lifting, towing, and securement. Its primary industrial use is crane and hoist-based lifting of pre-cast concrete, steel coils, pipes, machinery, and containers. The key value proposition is exceptional strength-to-weight ratio (up to 5:1 safety factor) combined with non-marring, load-protecting flexibility. Strategically, it mitigates workplace injury risk and asset damage, directly addressing global demand for safer, lighter rigging equipment in automated and manual lifting environments.

2. Key Specifications & Technical Characteristics

• Material composition: 100% virgin high-tenacity polyester (PES) or Type 6.6 nylon webbing; abrasion-resistant outer cover (optional polypropylene or polyester sleeve)

• Grade / standard: Conforms to ASME B30.9, EN 1492-1, and ISO 4878; color-coded by rated capacity

• Physical characteristics: Flat webbing (25mm–300mm width) or roundsling tubular construction; typical colors red, purple, green, yellow, blue, brown, orange, gray per WSTDA standard; particle size N/A; linear density per length (kg/m)

• Packaging options: Coiled and banded on pallets; individual polybag with sewn-in tag; heat-shrunk sleeve for weather protection

• Shelf life: 5 years from manufacture in indoor, non-UV exposed storage (12 months maximum under continuous outdoor use)

3. Core Industrial Applications

• Primary industries: General construction, precast concrete, steel service centers, oil & gas, wind energy, shipbuilding, container ports, heavy machinery manufacturing

• Specific use cases: Lifting rebar bundles, concrete panels, turbine blades, ship propellers, stamped auto parts, and temperature-sensitive finished goods (painted, polished, chrome-plated)

• Performance advantage: Up to 70% lighter than equivalent chain slings, enabling faster manual hooking and reduced crane wear; polyester’s low stretch (<3% at rated load) ensures precise load positioning

• Efficiency/durability: Abrasion-resistant sleeve extends service life by 3x versus unsleeved slings; can be visually inspected without special tools — reduces downtime for compliance checks

4. Competitive Advantages

• Quality consistency: 100% tensile-tested per batch; third-party certification available (BV, SGS, TÜV) with traceable lot codes

• Supply reliability: Stocked in 20+ global warehouses; lead time 7 days for standard capacities (1T–50T)

• Logistics capability: Flat-packed or rolled for dense container loading — 30% more units per TEU compared to rigid slings

• Price competitiveness: Vertically integrated webbing production removes 15–20% distributor markups at MOQ volumes

• Sustainability: Polyester yarns contain up to 30% post-industrial recycled content upon request; packaging uses recycled cardboard and biodegradable strapping

• Technical support: Free load-chart calculator, inspection training PDF, and RFID tag option for asset tracking

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT (approx. 6,000–8,000 units depending on size mix)

• Loading capacity per container: 20’ dry container — 22 MT net; 40’ HC container — 26 MT net (flat webbing stacks efficiently to 28 MT upon request)
