Synthetic Graphite (battery anode grade)

Description

1. Product Overview

This product is a highly crystalline, battery-grade synthetic graphite manufactured through precision graphitization of carbon precursors. It is primarily used as the active anode material in lithium-ion batteries for electric vehicles (EVs) and grid-scale energy storage systems (ESS). The key value proposition is its consistent electrochemical performance, high tap density, and low impurity profile, which directly enhance battery energy density and lifespan. Strategically, it mitigates supply chain risks associated with natural graphite refining, offering a scalable, Western-friendly source of anode material critical for the global energy transition.

2. Key Specifications & Technical Characteristics

• Chemical composition: >99.95% total carbon content; ash ≤0.02%; Fe ≤20 ppm; magnetic particles ≤5 ppb

• Purity level: Battery anode grade (Grade SG-BA99.95)

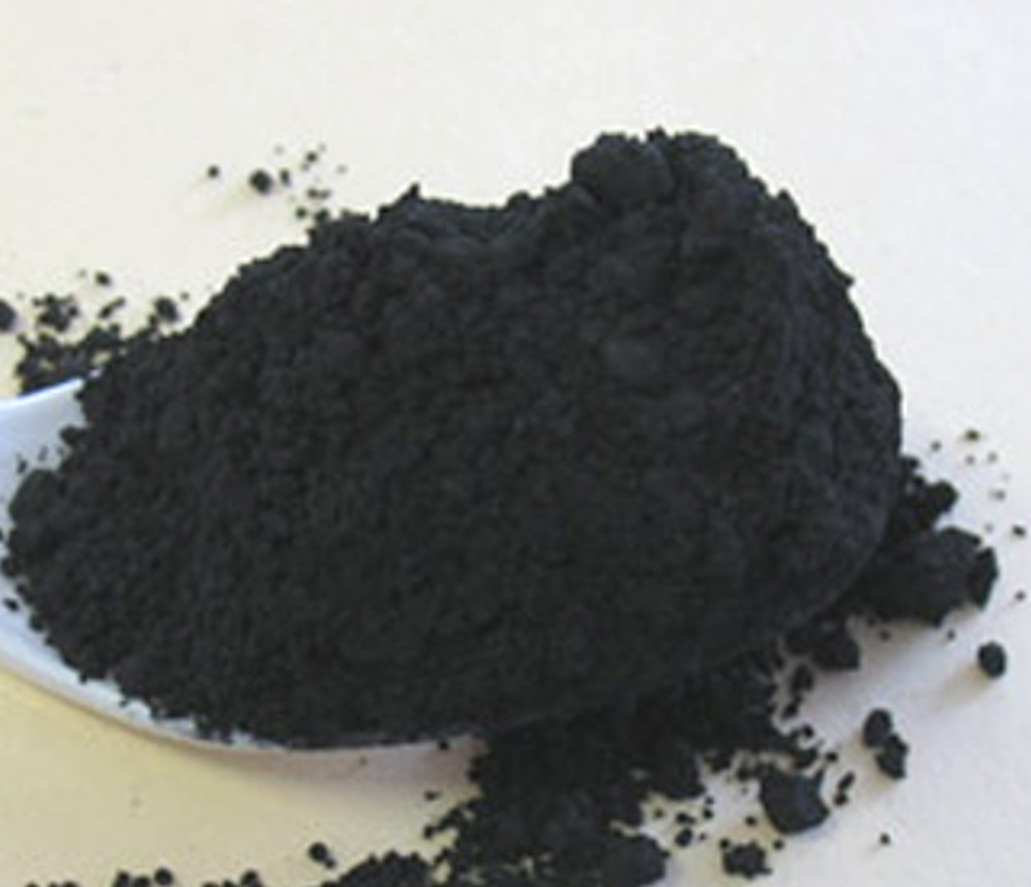

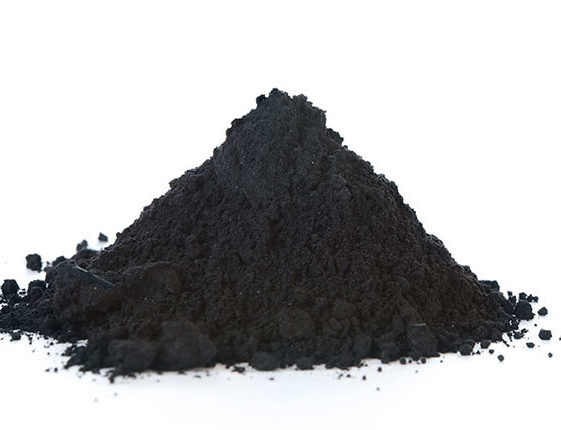

• Physical characteristics: Black, odorless powder; D50 = 14–18 µm; tap density = 0.9–1.1 g/cm³; BET surface area = 1.5–3.0 m²/g; specific capacity = 350–365 mAh/g

• Packaging options: 500 kg Jumbo bags (with inner PE liner) or 25 kg sealed paper bags; bulk pneumatic tanker available upon request

• Shelf life: 24 months in original sealed packaging stored at <50% relative humidity, 5–35°C

3. Core Industrial Applications

• Electric vehicle (EV) battery manufacturing: Serves as the premium anode active material for high-energy 2170, 4680, and pouch cells. Outperforms natural graphite in fast-charging (≤15 min to 80% SOC) and cycle life (>2,000 cycles to 80% capacity retention).

• Grid-scale energy storage systems (ESS): Enables long-duration batteries requiring minimal self-discharge and superior thermal stability. Reduces cell formation costs due to lower irreversible capacity loss (≤6%).

• Consumer electronics batteries: Provides consistent intercalation behavior for thin prismatic cells, eliminating lithium plating risks seen with lower-grade synthetic or natural blends.

4. Competitive Advantages

• Quality consistency: Lot-to-lot uniformity assured via ISO 9001:2025 certified SPC with full traceability from coke to final graphitization.

• Supply reliability: Dedicated graphitization lines with 36,000 MT annual capacity; no reliance on China-only natural flake sources.

• Logistics capability: EXW, FOB (Shanghai/Hamburg/Houston), or CIF delivered to battery gigafactories worldwide; 2-week standard lead time.

• Sustainability: 42% lower CO₂ footprint vs. industry average via hydro-powered graphitization and closed-loop acid purification.

• Technical support: Full Material Safety Data Sheet (MSDS), electrochemical validation report (half-cell data), and on-site application engineering available.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 20 metric tons (bulk order)

• Bulk loading capacity: 20–22 MT per standard 20-ft dry container; up to 26 MT in high-cube 40-ft container (Jumbo bag configuration)
