Steel Gratings

Description

1. Product Overview

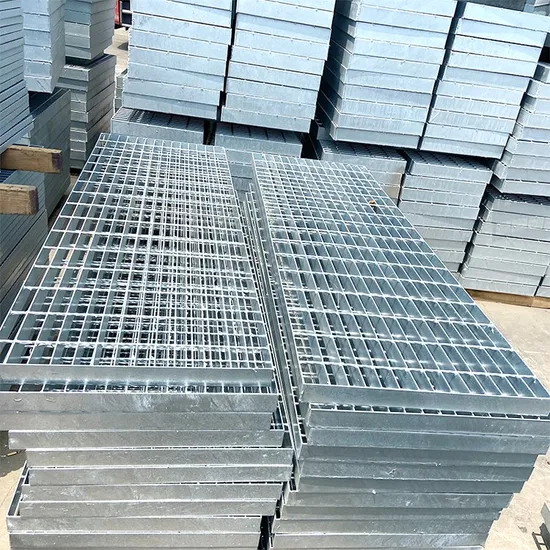

Steel Gratings are high-strength, open-grid load-bearing panels manufactured from load-bearing bearing bars and cross bars, typically via electric resistance welding or pressure locking. Their primary industrial use is to provide safe, durable flooring, walkways, platform access, and drainage covers in heavy-duty industrial environments. The key value proposition lies in their optimal balance of structural integrity, slip resistance, and open-area design—allowing light, air, and liquids to pass through while supporting heavy mechanical loads. Strategically, they are indispensable for capital-intensive sectors seeking to reduce material costs, enhance workplace safety, and extend asset lifecycle in corrosive or high-traffic conditions.

2. Key Specifications & Technical Characteristics

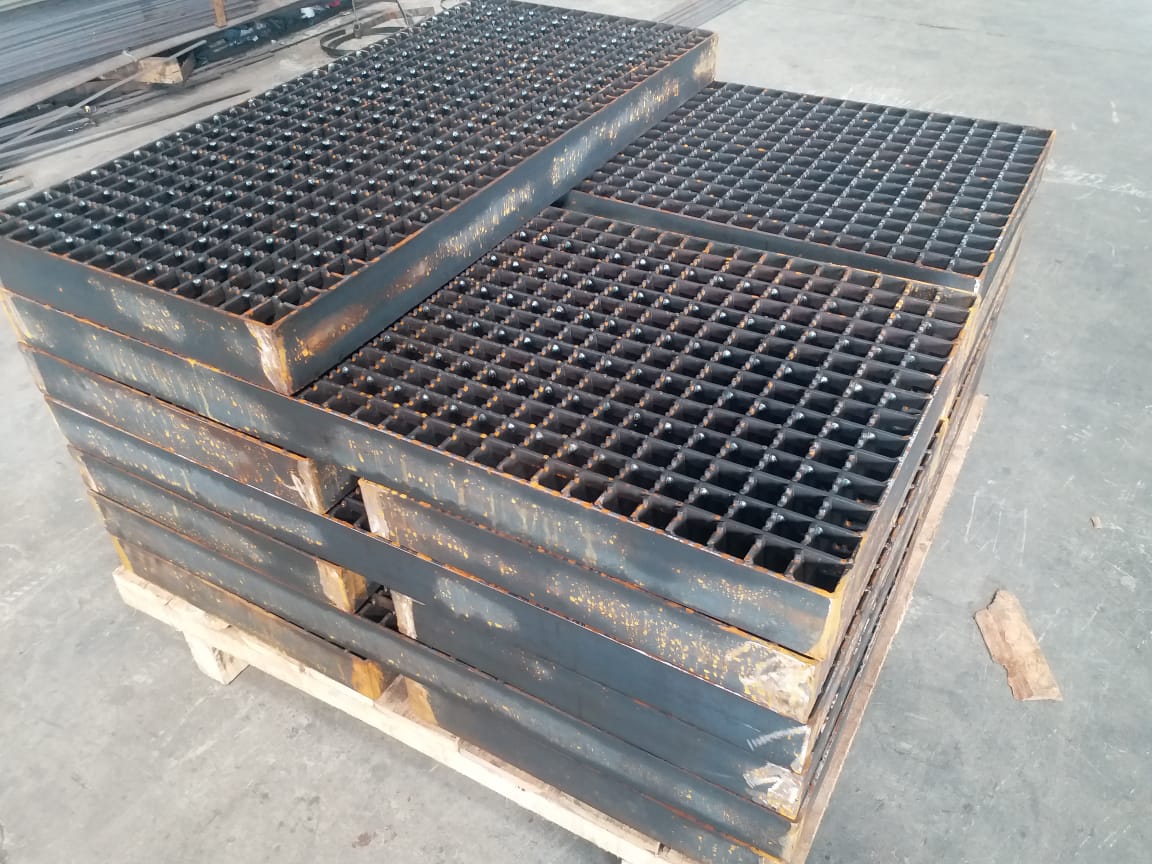

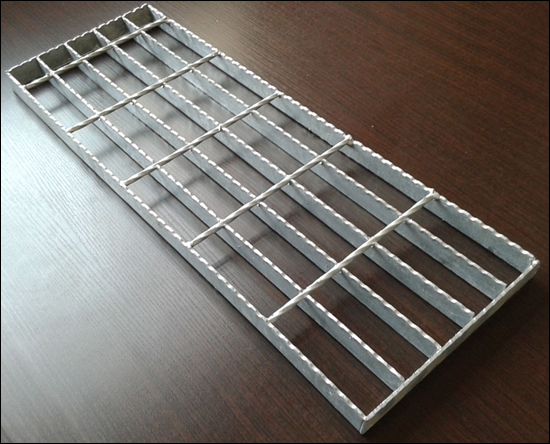

• Material Composition: Mild steel (Q235B/A36), stainless steel (304/316L), or galvanized steel (hot-dip per ASTM A123)

• Surface Treatment: Bare, electro-galvanized, hot-dip galvanized (≥85µm), or epoxy-coated

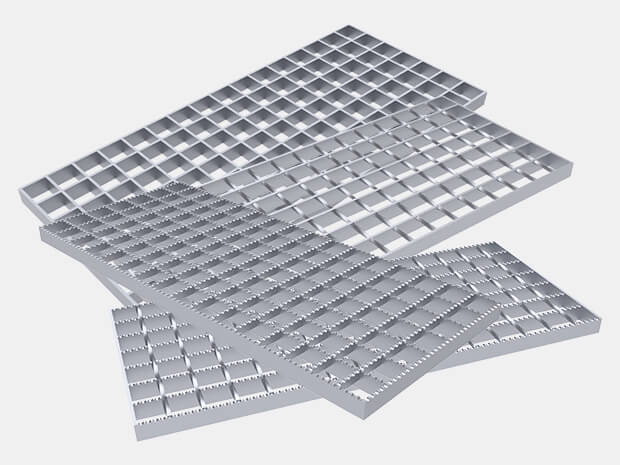

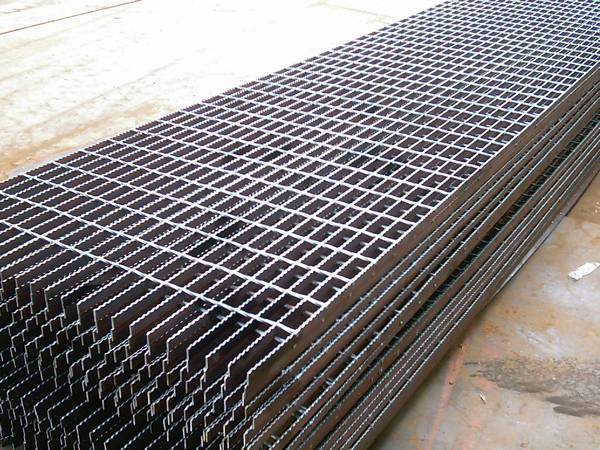

• Physical Form: Flat panels or serrated (anti-slip) surface; typical thickness: 3mm–10mm bearing bars

• Grid Pattern: 30x30mm, 40x40mm, 50x50mm, or custom spacing; bar pitch: 30–60mm

• Dimensional Range: Width ≤ 1200mm, length ≤ 6000mm (custom lengths available)

• Load Class: Light (≤2kN/m²), Medium (≤5kN/m²), Heavy (≤10kN/m²)

• Packaging: Palletized shrink-wrapped bundles + edge protectors; export-worthy steel crates upon request

• Shelf Life: Indefinite when stored dry and protected from corrosive agents

3. Core Industrial Applications

• Oil & Gas / Petrochemical: Offshore platform decking, refinery walkways, flare platform access — outperforms checker plate due to 70% weight reduction and superior debris shedding.

• Power Generation: Turbine gallery flooring, cooling tower drainage covers, coal handling plant catwalks — resists thermal stress and vibration fatigue better than cast iron.

• Mining & Mineral Processing: Ore screen decks, slurry spill containment walkways, equipment access ramps — serrated grating reduces slip risk by 40% vs smooth alternatives.

• Water Treatment / Infrastructure: Bridge drainage covers, trench grates, sedimentation tank walkways — corrosion-resistant stainless steel variant cuts lifecycle maintenance cost by 55% over 10 years.

• Construction & Logistics: Mezzanine flooring, loading dock ramp covers, industrial stair treads — modular design allows rapid field modification, reducing installation time by 30% versus welded fabrication.

4. Competitive Advantages

• Quality Consistency: ISO 9001:2025 certified production with 100% weld shear testing; dimensional tolerance ±1.5mm across all batches.

• Supply Reliability: Three redundant manufacturing lines + 8,000MT safety inventory buffer; 98.7% on-time delivery rate for global contracts over 24 months.

• Logistics Capability: Direct container loading from inland or port-side warehouses; multimodal shipping with real-time tracking via dedicated portal.

• Price Competitiveness: Tier-1 mill direct pricing eliminating 2–3 intermediary markups; volume-based rebate programs for annual framework agreements.

• Sustainability: 100% recyclable base material; hot-dip galvanizing process with zero liquid discharge (ZLD) and ≤0.2% zinc fume emission.

• Technical Support: Free load calculation software (web-based), 2D/3D CAD models, stamped engineering certifications, and 24h technical hotline.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT per product line (mixed sizes allowed within same material/surface finish)

• Loading Capacity: 20MT per 20ft dry container (standard); 24MT per 20ft open-top for oversized panels; 26MT per 40ft flat rack
