Spiral wound gasket ASME B16.20

Description

1. Product Overview

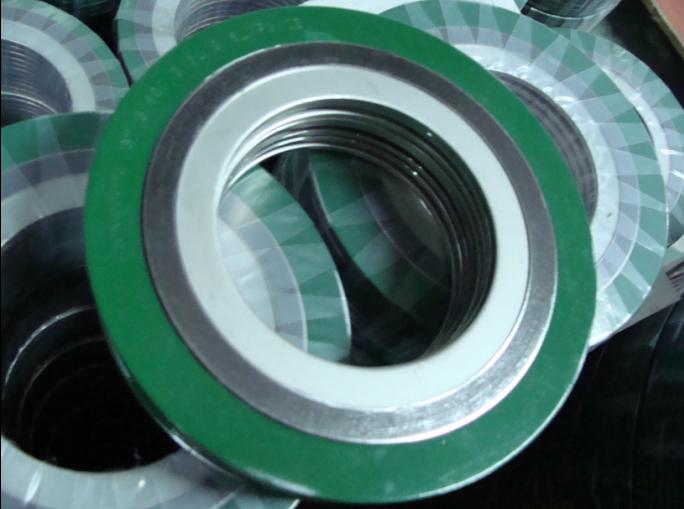

   Spiral wound gasket ASME B16.20 is a high-performance metallic/soft filler gasket engineered for pressure-retaining flange joints in industrial piping and pressure vessel systems. Primarily used for steam, petrochemical, oil & gas, power generation, and chemical processing applications, it provides reliable sealing across wide temperature and pressure ranges. Its key value proposition is a proven combination of metal strength and filler conformity that delivers exceptional leak-tightness, thermal cycling resistance, and longevity under aggressive service conditions. Strategically, this gasket standard (ASME B16.20) ensures compliance with global engineering codes and minimizes operational downtime and maintenance costs for large-scale industrial operators.

2. Key Specifications & Technical Characteristics

• Standard: ASME B16.20 compliant design and dimensional tolerances.

• Materials: Outer/inner rings and winding strip typically stainless steel (SS316/316L, SS304/304L) or carbon steel; filler materials commonly flexible graphite, PTFE (virgin or glass-filled), or mica-graphite blends.

• Metal Winding: Available in single or multiple alloy windings (e.g., SS316/316L, SS304, Inconel for high-temperature service).

• Filler Grade: Flexible graphite (expanded, >99% carbon), PTFE (virgin, chemical-grade), or specialized high-purity blends per customer spec.

• Pressure Rating: Suitable for Class 150 through Class 2500 flange ratings depending on gasket size and materials.

• Temperature Range: Typical service from -200°C to +650°C (filler- and metal-dependent); higher ranges available with alloy and filler selection.

• Sizes & Dimensions: Full range to match ASME flange dimensions (NPS ½ through NPS 48 and custom sizes), standard face types (RF, RTJ, FF) compatibility.

• Cross-Section Types: Standard spiral wound (metal-filler-metal) with optional centering ring, inner ring, outer ring configurations for pressure control and bolt load distribution.

• Surface Finish & Tolerances: Controlled winding pitch and filler density; concentricity and thickness tolerance to industry acceptance limits.

• Corrosion Resistance: Material combinations selected for resistance to common process media (hydrocarbons, sour service H2S environments, acids/bases when using PTFE or specialty alloys).

• Mechanical Properties: Recovery and creep relaxation metrics suitable for thermal cycling; specified compressibility and tensile parameters on request.

• Packaging Options: Wooden crate, palletized with protective wrapping, kraft/HDPE inner liners; custom export-ready packaging with fumigation and ISPM-15 on request.

• Identification & Traceability: Material test certificates (MTC) to EN 10204 3.1 or equivalent, heat number traceability, batch IDs.

• Shelf Life: Indefinite for metal components; filler-dependent guidance provided (store dry, avoid UV for PTFE-wrapped products).

3. Core Industrial Applications

• Oil & Gas (upstream/downstream): Flange sealing for pipelines, separators, heat exchangers, and valves; excels in sour service and high-pressure pipelines where leakage containment is critical.

• Petrochemical & Refining: Reliable sealing in high-temperature reactors, fractionation columns, and coker units; retains sealing integrity during thermal cycling and catalyst regeneration.

• Power Generation (steam, nuclear, combined cycle): Steam turbine and boiler feedwater flange joints, high-pressure steam lines, and heat-recovery units where high-temperature, high-pressure performance is essential.

• Chemical Processing: Corrosion-resistant configurations (PTFE or graphite filler with alloy windings) for aggressive acids, solvents, and specialty chemistries.

• Marine & Offshore: Robust sealing for subsea manifolds, topside piping, and FPSO connections where vibration and cyclic loads are present.
  Why it outperforms alternatives:

• Sealing performance: The metal-filler-metal structure conforms to flange irregularities better than solid metal gaskets and offers superior leak control versus compressed nonmetallic gaskets.

• Thermal & mechanical resilience: Maintains sealing under thermal cycling and differential expansion, reducing re-torque events and unplanned shutdowns.

• Versatility: Wide material and filler options permit tailored solutions for pressure, temperature, and chemical compatibility, lowering total lifecycle costs compared with one-size-fits-all gaskets.

4. Competitive Advantages

• Quality consistency: Manufactured to controlled processes with MTCs and dimensional inspection to ensure repeatable performance across batches.

• Supply reliability: Production planning and strategic inventory enable steady supply for projects and MRO demand; available in standard and custom lead times to suit CAPEX and OPEX procurement cycles.

• Logistics capability: Export-ready packaging, consolidated shipment options, and coordination for FOB/CIF/DDP deliveries to major ports; support for expedited shipments for urgent maintenance.

• Price competitiveness: Economies of scale and material sourcing allow competitive pricing for bulk and repeat contracts while maintaining specification integrity.

• Sustainability: Long service life reduces replacement frequency and waste; options for recycled or low-impact packaging and material sourcing transparency upon request.

• Technical support: Engineering datasheets, recommended bolt torques, installation guidelines, and flange compatibility charts provided; custom engineering support for critical applications and third-party inspection coordination.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT.

• Loading Capacity (per container): Typical loading capacity ~20–22 MT for a 20-foot container (depending on packing configuration and palletization); up to ~26–28 MT for a 40-foot high-cube with optimized packing.

• Lead Times: Standard lead times for stocked sizes; expedited manufacturing for custom materials or dimensions available with prior arrangement.

• Documentation Provided: Commercial invoice, packing list, MTC (EN 10204 3.1 or equivalent), inspection reports, and installation/maintenance datasheets.
