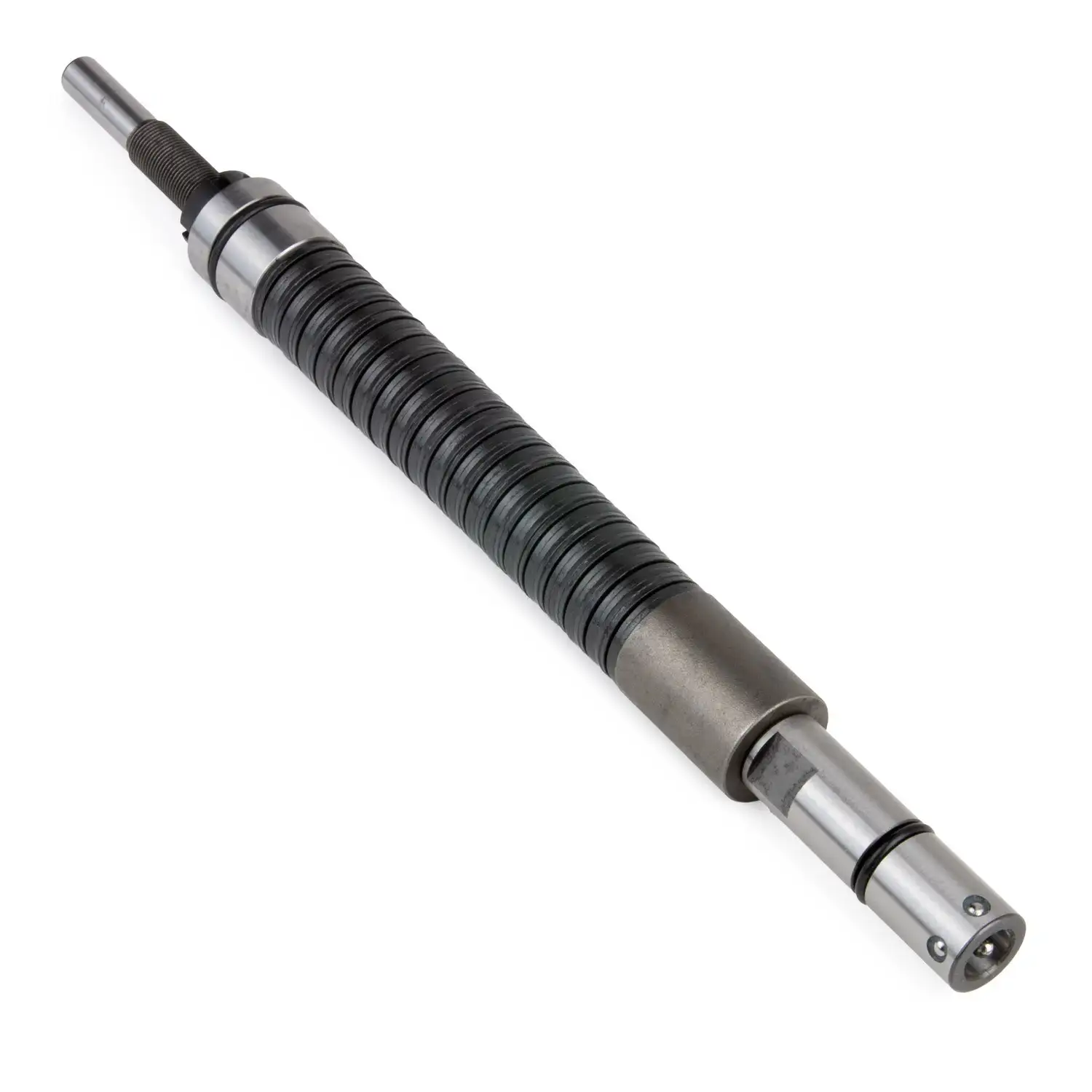

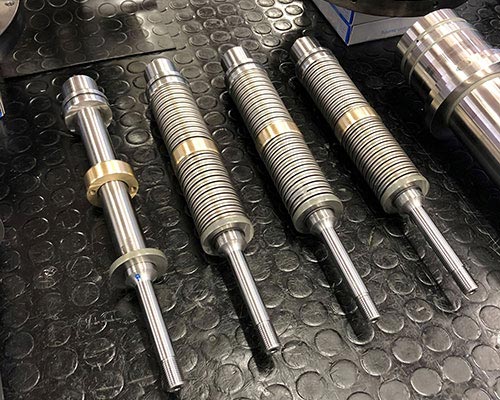

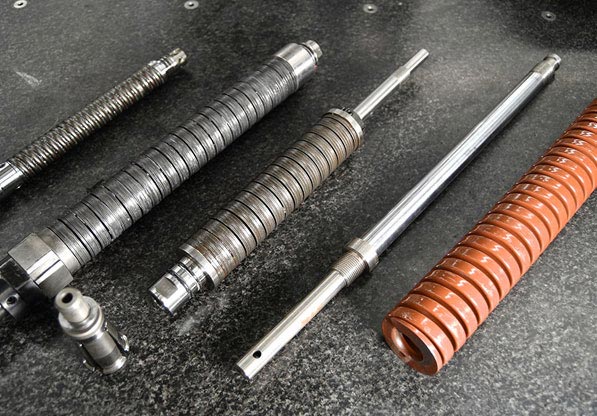

Spindle drawbar spring assemblies

Description

1. Product Overview

Spindle drawbar spring assemblies are precision-engineered spring components designed for CNC machine-tool spindles, providing the controlled force required for reliable tool retention and drawbar operation. Manufactured from high-strength spring steel and engineered to withstand repeated compression cycles, they support consistent clamping performance under demanding machining conditions. Their dimensional accuracy, fatigue resistance, and dependable force characteristics help minimize tool-release issues, machine downtime, and maintenance costs. As a critical spindle component, these assemblies are strategically important for maintaining CNC productivity, machining accuracy, and equipment reliability.

2. Key Specifications & Technical Characteristics

• Material: High-carbon or alloy spring steel, selected for high fatigue strength and resilience
• Material Grade: Industrial-grade, heat-treated spring material; specification available according to spindle OEM requirements
• Assembly Type: Multi-spring drawbar assembly configured for CNC spindle applications
• Physical Characteristics: Precision-formed compression springs; typically metallic finish; dimensions and spring force engineered to application requirements
• Spring Performance: High cyclic durability, consistent load characteristics, and resistance to permanent deformation
• Dimensional Accuracy: Manufactured to specified spindle drawbar dimensions and OEM-compatible tolerances
• Surface Treatment: Protective finishing or coating available according to application and corrosion-resistance requirements
• Compatibility: Suitable for CNC machining centers, automatic tool changers, and compatible spindle systems
• Packaging: Individual protective packaging, cartons, or bulk industrial packaging
• Shelf Life: Long-term storage when kept clean, dry, and protected from corrosive environments

3. Core Industrial Applications

• CNC Machining Centers: Provides reliable drawbar force for automatic and manual tool retention systems.
• Metalworking & Precision Machining: Supports stable tool clamping during milling, drilling, tapping, and high-speed machining.
• Machine-Tool Manufacturing: Used as an OEM or replacement spindle component for new equipment and maintenance programs.
• Industrial Maintenance & MRO: Enables cost-effective replacement of worn or fatigued spindle spring assemblies without replacing complete spindle systems.
• Automotive & Aerospace Manufacturing: Supports repeatable tool retention in high-utilization machining environments where uptime and dimensional consistency are critical.
• Performance Advantage: Precision spring characteristics and fatigue-resistant materials help deliver consistent clamping force, longer service intervals, and reduced risk of premature spring failure.

4. Competitive Advantages

• Quality Consistency: Controlled material selection, heat treatment, spring-force characteristics, and dimensional tolerances support repeatable performance.
• Supply Reliability: Suitable for OEM, aftermarket, and recurring industrial replacement requirements with scalable production capability.
• Logistics Capability: Available in protective industrial packaging suitable for international shipment and bulk procurement.
• Price Competitiveness: Efficient manufacturing and volume sourcing can provide competitive total acquisition costs compared with complete spindle-component replacement.
• Durability: High fatigue resistance and controlled spring performance support extended service life under repetitive spindle cycling.
• Sustainability: Replacing individual spring assemblies instead of complete spindle components can reduce material consumption and maintenance-related waste.
• Technical Documentation: Dimensional drawings, material specifications, spring-force data, inspection documentation, and OEM compatibility information can be supplied according to buyer requirements.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity: Approx. 20 MT per container, subject to packaging configuration, container type, and applicable shipping regulations
