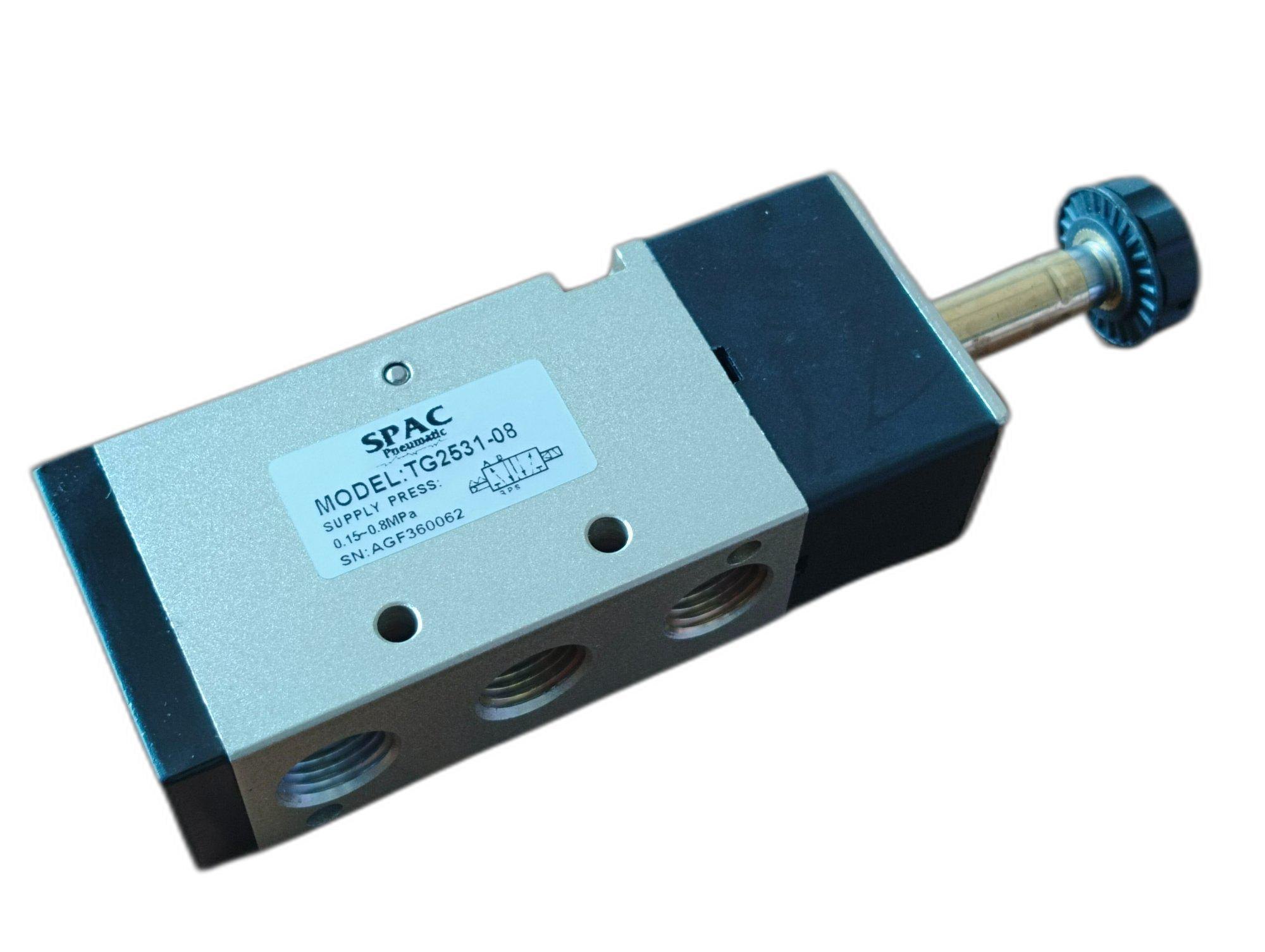

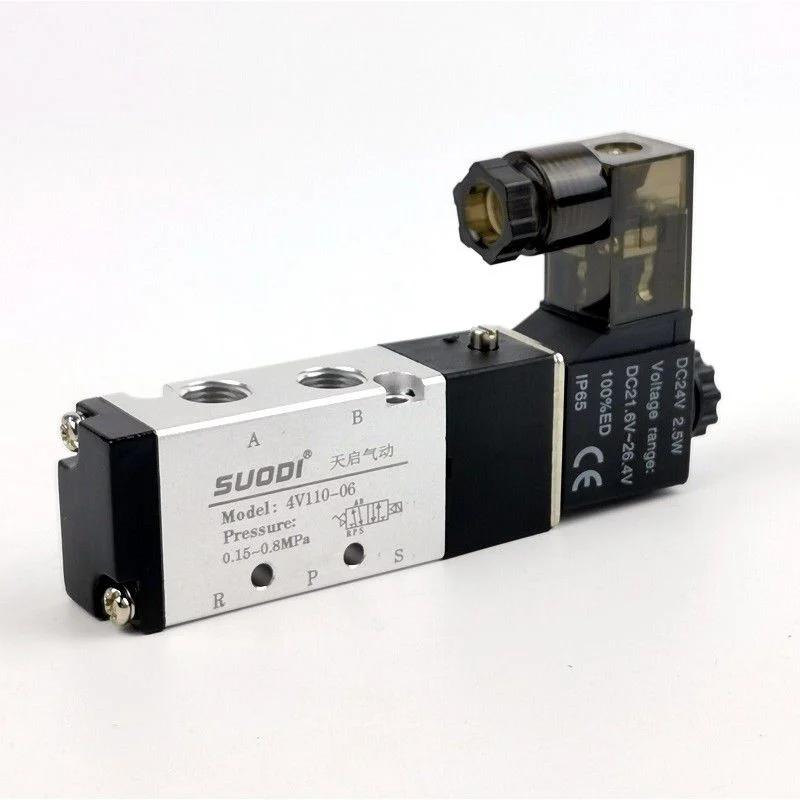

Solenoid Valve 5/2 Way Pneumatic

Description

1. Product Overview

The Solenoid Valve 5/2 Way Pneumatic is a precision-engineered directional control valve that switches pneumatic airflow across five ports and two positions for reliable actuation of double-acting cylinders and pneumatic systems. Primarily used in industrial automation, material handling, packaging, and process control, it enables fast, repeatable motion control under varying load and duty-cycle conditions. Its key value proposition is consistent, high-speed switching with low leak rates and long mechanical life, reducing downtime and improving cycle throughput. Strategically, this component is a foundational element in automated systems—selecting a robust 5/2 solenoid valve reduces system-level risk, simplifies maintenance, and delivers measurable productivity gains across production lines.

2. Key Specifications & Technical Characteristics

• Valve type: 5/2-way solenoid-operated directional control valve, spring return / detented options available.

• Body material: High-strength aluminum alloy (standard); stainless steel and engineered polymer options for corrosive environments.

• Internal components: Stainless steel spools and springs; nitrile (NBR) seals standard; FKM (Viton) and EPDM available on request.

• Port size: Common options: 1/8″, 1/4″, 3/8″, 1/2″ (BSPP / NPT threads configurable).

• Operating pressure range: 0.15–1.0 MPa (1.5–10 bar) standard; versions rated to 1.6 MPa available.

• Flow capacity (Cv / Kv): Typical Kv 0.25–1.2 (model dependent); optimized for low pressure drop.

• Response time: Electrically driven actuation < 20 ms typical; total switching cycle time dependent on system.

• Voltage and electrical: 12/24 VDC and 110/230 VAC solenoid coils available; protective classes up to IP65 (optional IP67).

• Temperature range: -20 °C to +80 °C standard; extended temperature seals for -40 °C to +120 °C.

• Leak rate: Low internal leakage design to OEM-grade tolerances (specified per model).

• Mounting: Sub-base, manifold, or inline configurations; modular manifold stacking supported.

• Certifications: CE; RoHS compliant; ATEX-rated versions on request.

• Packaging: Industrial bulk crates for palletized shipment; protective caps on ports; anti-corrosion wrapping for sea freight.

• Shelf life / storage: Indefinite if stored dry and protected from UV and extreme temperatures; recommended storage 0–40 °C, <70% RH.

3. Core Industrial Applications

• Automotive manufacturing: Controls double-acting cylinders for stamping, welding fixtures, and conveyor actuation; offers high cycle endurance for continuous production lines.

• Packaging and bottling: Drives rapid, repeatable motion in filling, capping, and sorting stations where fast response and low leak are critical to throughput.

• Material handling and robotics: Interfaces with pneumatic actuators in picking, placement, and gripper modules; compact footprint simplifies integration into end-of-arm tooling.

• Process and utilities: Valve islands and distributed manifolds for compressed-air distribution in food & beverage, pharmaceuticals, and chemical plants where contamination resistance options (stainless, FKM) are required.

• Heavy industry and OEM equipment: Ruggedized models endure shock, vibration, and harsh environments, reducing replacement frequency versus low-grade alternatives.

Why it outperforms alternatives

• Precision spool tolerance and optimized flow paths yield lower pressure drop and higher effective force at actuators, improving energy efficiency.

• Modular coil and seal options allow tailoring for temperature, chemical exposure, or intrinsic safety—reducing system retrofit costs.

• Robust materials and manufacturing controls deliver longer mean time between failures (MTBF), decreasing lifecycle cost compared with commodity valves.

4. Competitive Advantages

• Quality consistency: Manufactured under ISO-aligned processes with traceable component lot control to ensure repeatable performance across production batches.

• Supply reliability: Strategic stock locations and safety inventory calibrated for industrial lead-time requirements; scalable production to support high-volume OEM contracts.

• Logistics capability: Palletized bulk packaging, export documentation support, and freight consolidation options (LCL/FCL) for global distribution.

• Price competitiveness: Tiered pricing for volume purchases and contract terms; total-cost-of-ownership (TCO) advantage from lower maintenance and energy losses.

• Sustainability: Long service life reduces replacement waste; options for halogen-free polymers and recyclable aluminum bodies support circular procurement goals.

• Technical support: Comprehensive datasheets, CAD models, pneumatic circuit examples, troubleshooting guides, and application engineering support from product specialists.

• After-sales: Spare parts kits (seals, springs, coils) available; warranty and field-repair guidance to expedite mean-time-to-repair.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity (MT per container): Approximately 20 MT per 20-foot container when packaged and palletized according to standard export palletization rules (actual capacity depends on final packaging dimensions and accessory inclusion).
