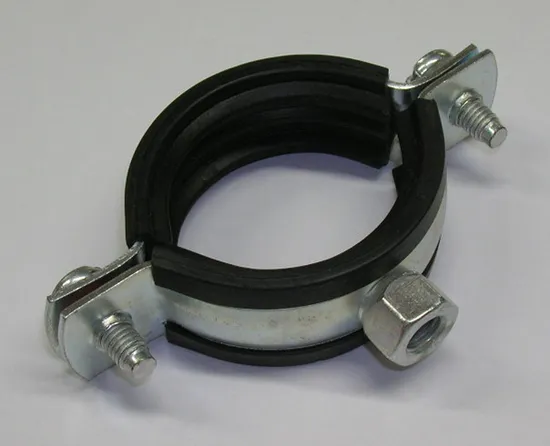

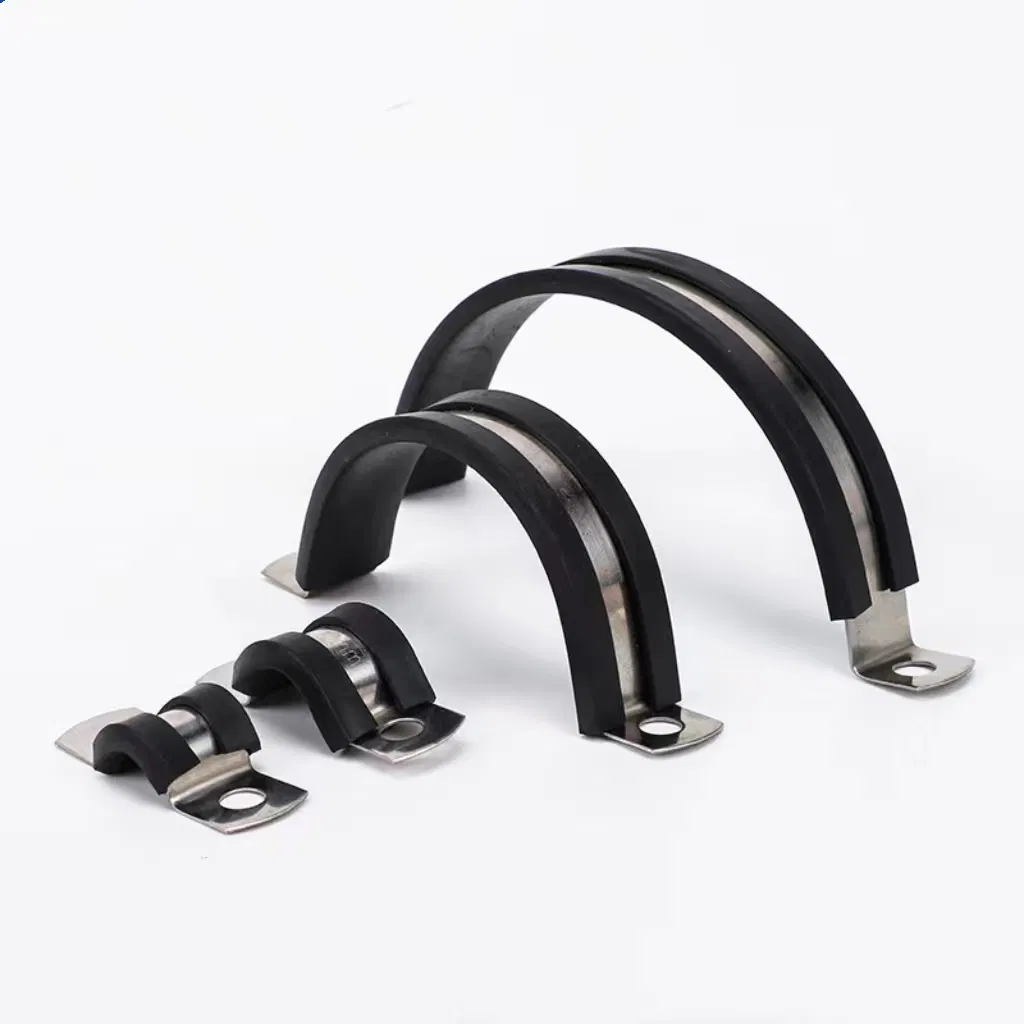

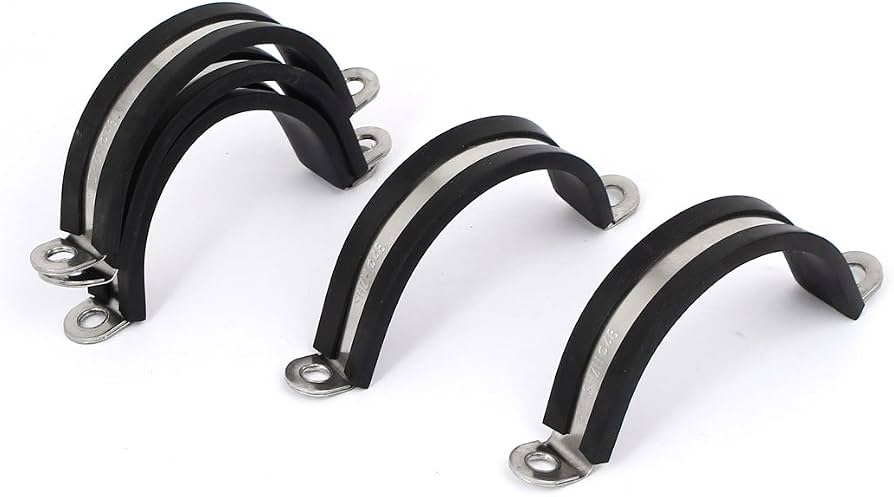

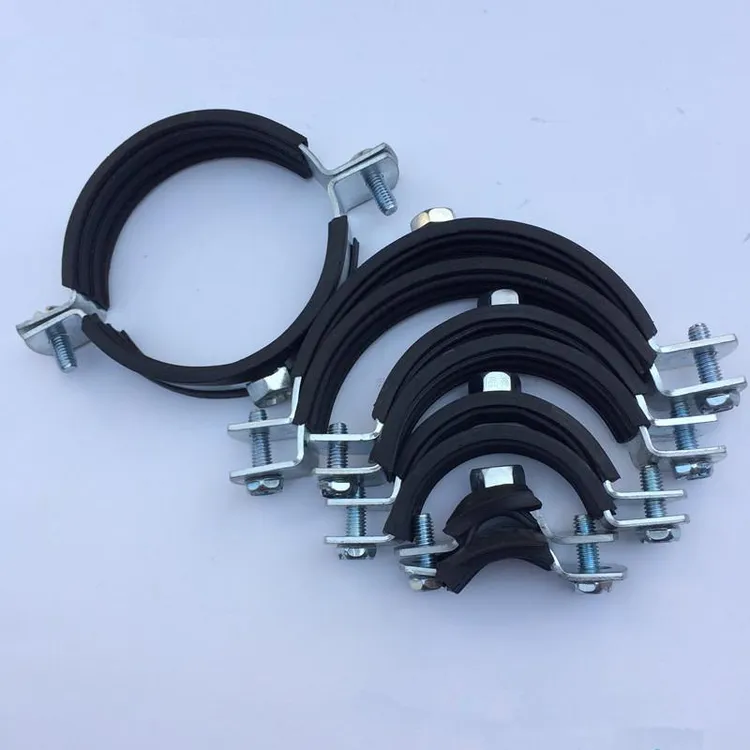

Rubber Lined Pipe Saddle Clamp

Description

1. Product Overview

Rubber Lined Pipe Saddle Clamp is a heavy-duty pipe support and securing component featuring a protective rubber lining between the clamp and pipe surface. It is primarily used to secure, suspend, and stabilize piping systems while minimizing vibration, noise, surface damage, and corrosion caused by direct metal-to-metal contact. The rubber-lined design provides reliable mechanical support while accommodating minor movement and thermal expansion. It is a strategically valuable component for industrial piping projects where long-term system integrity, installation efficiency, and protection of pipe coatings are critical.

2. Key Specifications & Technical Characteristics

• Product Type: Rubber Lined Pipe Saddle Clamp
• Primary Material: Carbon steel, galvanized steel, stainless steel, or other specified metal grades
• Lining Material: EPDM, NBR, neoprene, or other application-specific rubber compounds
• Metal Surface Finish: Galvanized, zinc-plated, stainless steel finish, or customized coating
• Construction: Rigid saddle clamp with integrated protective rubber lining
• Pipe Compatibility: Available for multiple pipe diameters and nominal pipe sizes
• Rubber Lining Function: Vibration isolation, noise reduction, surface protection, and enhanced grip
• Physical Characteristics: Formed metal clamp with continuous or bonded rubber lining; dimensions and thickness configurable to application requirements
• Temperature Resistance: Dependent on selected rubber compound and operating environment
• Corrosion Resistance: Enhanced through galvanized, coated, or stainless-steel construction
• Packaging Options: Bulk cartons, woven bags, pallets, export-grade packaging, or customized packaging
• Customization: Diameter, dimensions, material grade, rubber compound, coating, and packaging can be supplied according to buyer specifications
• Shelf Life: Not generally applicable under normal dry storage conditions; rubber-lined components should be protected from prolonged exposure to direct sunlight, ozone, excessive heat, and chemicals

3. Core Industrial Applications

• Oil & Gas: Securing process, utility, fuel, and pipeline systems while protecting pipe surfaces from mechanical wear.
• Petrochemical & Chemical Processing: Supporting process piping where vibration isolation and resistance to aggressive operating environments are required.
• Water & Wastewater: Used for water supply, treatment, drainage, and industrial utility piping installations.
• HVAC & Building Services: Supporting chilled-water, cooling, heating, and mechanical-service pipework while reducing vibration and transmitted noise.
• Power Generation: Suitable for auxiliary, cooling, compressed-air, and utility piping systems.
• Industrial Manufacturing: Used on production lines, compressed-air networks, hydraulic systems, and general plant piping.
• Mining & Infrastructure: Provides durable pipe restraint and protection in demanding industrial and infrastructure installations.

The integrated rubber lining offers advantages over unlined metal clamps by reducing abrasion, vibration transmission, and potential damage to painted, coated, or insulated pipe surfaces. Its standardized configuration supports faster installation, dependable pipe positioning, and reduced maintenance requirements.

4. Competitive Advantages

• Quality Consistency: Controlled material selection, dimensional accuracy, rubber lining quality, and finishing support reliable batch-to-batch performance.
• Supply Reliability: Suitable for project-based procurement, OEM requirements, maintenance programs, and large-scale industrial orders.
• Logistics Capability: Export-oriented packaging and bulk shipment options facilitate efficient international distribution and containerized procurement.
• Price Competitiveness: Optimized material configurations and scalable production support competitive pricing for high-volume industrial purchasing.
• Durability: Robust metal construction combined with a resilient rubber interface provides dependable performance under vibration and mechanical loading.
• Surface Protection: Rubber lining helps minimize pipe scratching, abrasion, noise, and galvanic contact between dissimilar metals.
• Sustainability: Durable components can extend maintenance intervals and reduce replacement frequency, supporting more resource-efficient piping systems.
• Technical Support & Documentation: Material specifications, dimensional drawings, inspection documentation, coating details, and customized technical requirements can be provided according to project needs.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity: Typically approximately 18–24 MT per 20-foot container, depending on clamp dimensions, unit weight, packaging configuration, and applicable shipping restrictions
• Packaging: Export-grade cartons, pallets, woven bags, or customized bulk packaging
• Supply Format: Bulk industrial supply for distributors, contractors, OEMs, infrastructure projects, and international procurement programs
