Description
1. Product Overview

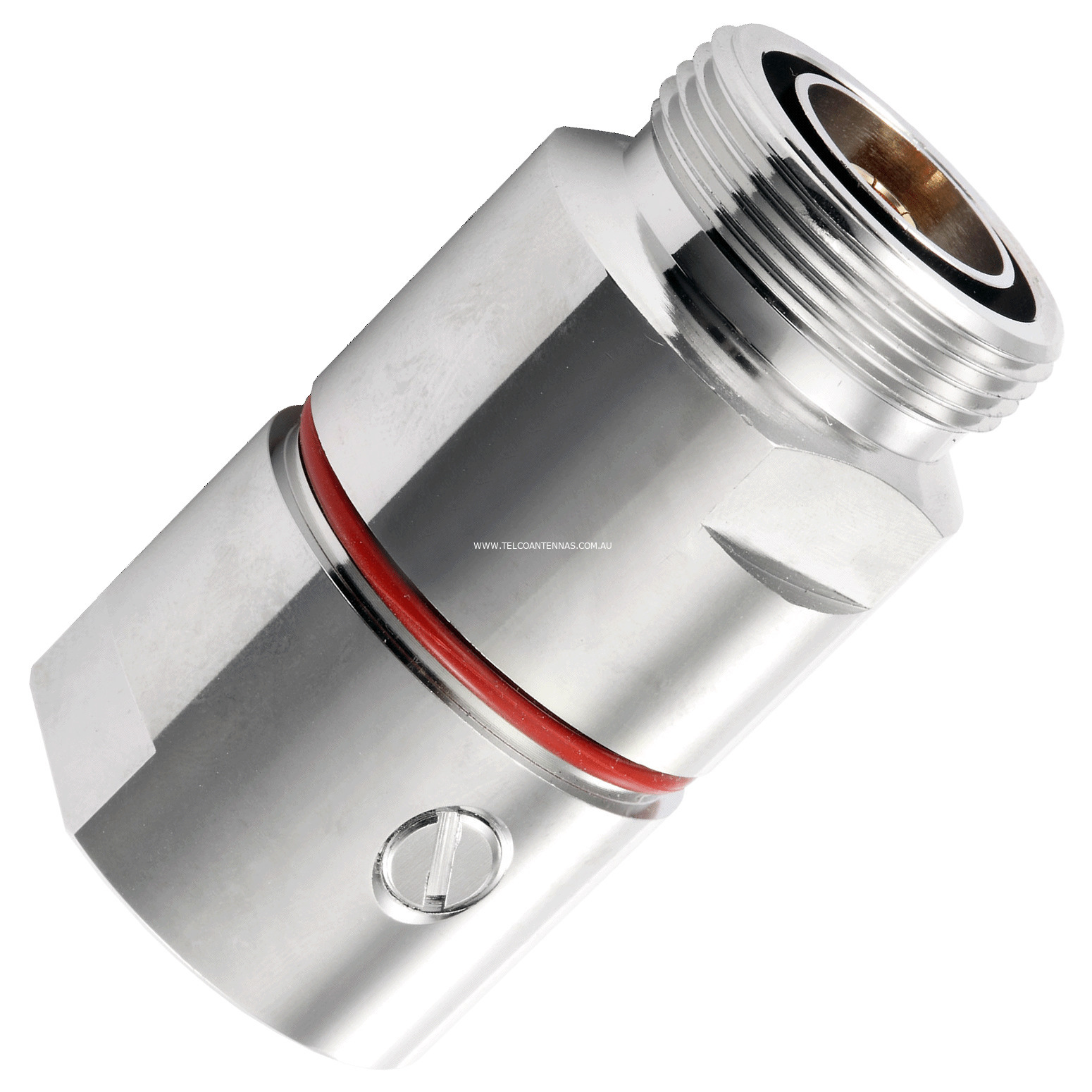

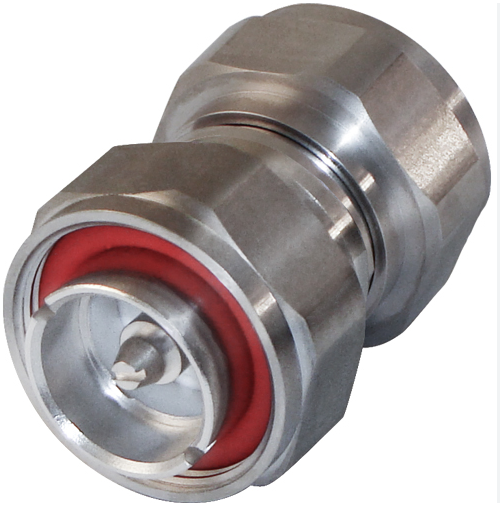

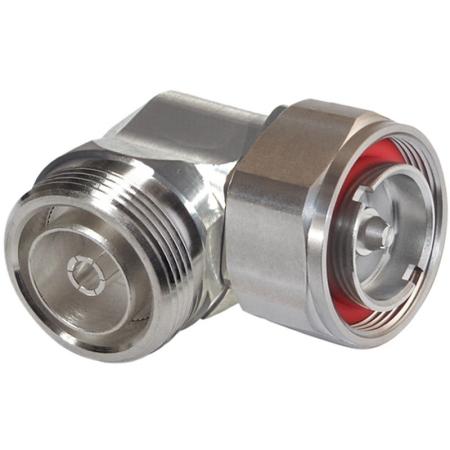

The RF Connector 7/16 DIN is a high-performance coaxial RF connector engineered for demanding telecommunications, broadcasting, and industrial wireless communication systems requiring exceptional power handling and low passive intermodulation (PIM). Designed for reliable signal transmission under high-power and outdoor operating conditions, it delivers superior electrical performance, mechanical stability, and long-term durability. Manufactured with precision-machined conductive materials and corrosion-resistant finishes, it ensures dependable connectivity in mission-critical RF infrastructure. As global wireless networks continue to expand, the 7/16 DIN connector remains a strategic component for high-frequency, high-reliability communication systems.
2. Key Specifications & Technical Characteristics
- Material Composition: Precision-machined brass body with silver or tri-metal plating; copper alloy contacts; PTFE dielectric insulator; silicone or EPDM weather sealing gasket
- Grade: Industrial and telecommunications-grade RF connector
- Connector Type: 7/16 DIN male or female configurations
- Impedance: 50 Ohms
- Frequency Range: DC to approximately 7.5 GHz (model dependent)
- Power Handling: High-power RF transmission capability
- VSWR: Low Voltage Standing Wave Ratio for minimal signal loss
- PIM Performance: Low Passive Intermodulation suitable for cellular base stations
- Physical Characteristics: Metallic silver finish; precision-threaded coupling; weatherproof construction; corrosion-resistant
- Operating Temperature: Typically -40°C to +85°C or higher depending on specification
- Packaging Options: Individual protective packaging, bulk cartons, export cartons, OEM packaging
- Shelf Life: Not applicable under proper storage conditions
3. Core Industrial Applications
- Mobile telecommunications base stations (2G, 3G, 4G LTE, and 5G infrastructure)
- Broadcast transmission systems
- Distributed Antenna Systems (DAS)
- RF communication networks
- Microwave communication equipment
- Military and defense communication systems
- Industrial wireless communication infrastructure
- Test and measurement laboratories
- Antenna feeder systems
- High-power RF transmission installations
The RF Connector 7/16 DIN provides superior power handling, excellent shielding effectiveness, and exceptionally low PIM compared with conventional RF connector designs. Its rugged mechanical construction minimizes connection losses while maintaining reliable electrical performance under vibration, harsh weather, and continuous outdoor exposure. These characteristics reduce maintenance requirements, improve network uptime, and lower total operating costs.
4. Competitive Advantages
- Precision manufacturing ensures consistent electrical and mechanical performance
- Stable production capacity supports long-term global procurement programs
- Reliable worldwide logistics with export-ready packaging
- Competitive pricing for both OEM and wholesale industrial buyers
- Corrosion-resistant materials extend operational service life and reduce replacement frequency
- Weatherproof design supports sustainable long-term outdoor deployment
- Available with comprehensive technical documentation, specifications, and quality certification
- Supports customized connector configurations and OEM manufacturing requirements
- An ideal strategic sourcing solution for telecommunications, broadcasting, and industrial RF infrastructure projects
5. Commercial & Supply Information
- Minimum Order Quantity (MOQ): Bulk 20 MT
- Loading Capacity: Approximately 20–24 MT per 20-foot container and 25–28 MT per 40-foot container, depending on packaging configuration and connector specifications.
