Reverse Dutch Weave Mesh

Description

Unveiling the Strength and Beauty of Reverse Dutch Weave Mesh

In the world of woven wire mesh, innovation and adaptation are key to meeting diverse industrial and artistic needs. While the familiar Dutch weave mesh offers exceptional filtration capabilities, a unique variation known as Reverse Dutch Weave Mesh flips the script, providing different, yet equally valuable, properties. This article delves into the characteristics, benefits, and applications of this intriguing material.

Understanding the Basics: Dutch Weave and its Reversal

Before exploring the reverse version, let’s briefly recap traditional Dutch weave. In this method, the warp wires (running lengthwise) are thicker and tightly packed, while the weft wires (running crosswise) are thinner and woven very close together. This creates a dense, strong mesh ideal for filtration, where the tight weave effectively prevents particles from passing through.

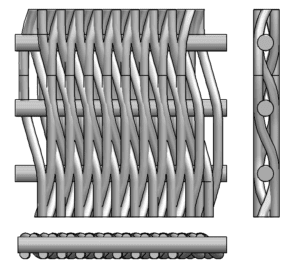

Reverse Dutch weave, as the name suggests, inverts this principle. The warp wires become thinner and the weft wires thicker. This seemingly simple change has a profound impact on the mesh’s performance and characteristics.

Key Characteristics and Benefits of Reverse Dutch Weave Mesh:

• Enhanced Surface Smoothness: The thicker weft wires, which are prominent on the exposed surface, contribute to a significantly smoother and more even surface compared to traditional Dutch weave. This is particularly advantageous in applications where friction or abrasion is a concern.
• Improved Abrasion Resistance: The robust weft wires are better equipped to withstand wear and tear, making reverse Dutch weave mesh a durable choice for abrasive environments.
• Increased Structural Integrity: While not primarily designed for filtration, the interlocking of thinner warp wires with robust weft wires provides excellent structural integrity and stability, especially under tension.
• Versatile Applications: While less effective for fine filtration than standard Dutch weave, reverse Dutch weave finds use in a broader range of applications due to its strength and surface characteristics.
• Alternative to Standard Dutch Weave: In situations where absolute filtration precision is not the primary concern, reverse Dutch weave can offer a more robust and cost-effective solution.

Applications of Reverse Dutch Weave Mesh:

The unique properties of reverse Dutch weave mesh make it suitable for a variety of applications, including:

• Architecture and Design: The smooth surface and aesthetic appeal make it a popular choice for architectural cladding, decorative panels, and interior design elements.
• Industrial Conveying: Its durability and smooth surface are ideal for conveyor belts, especially in industries handling abrasive materials.
• Screening and Sizing: While not as precise as filtration, it’s suitable for coarser screening and sizing applications where a strong and durable mesh is required.
• Support Structures: Its robust construction allows it to be used as a support structure in various industrial applications.
• Safety Barriers and Guards: The strong weave and smooth surface can contribute to the safety features of machine guards and barriers.

Material Considerations:

Reverse Dutch weave mesh can be manufactured from a variety of materials, the most common being:

• Stainless Steel: Provides excellent corrosion resistance, durability, and hygienic qualities.
• Carbon Steel: Offers good strength and is a more cost-effective option.
• Other Alloys: Depending on specific requirements, other alloys like aluminum, copper, and nickel alloys can be used.

Conclusion:

Reverse Dutch weave mesh is a testament to the versatility of woven wire mesh. By inverting the traditional Dutch weave structure, it offers a unique combination of strength, abrasion resistance, and surface smoothness. While not ideal for fine filtration, its distinct properties make it a valuable material for a wide range of applications, from architectural design to industrial conveying. As industries continue to seek innovative and durable solutions, reverse Dutch weave mesh is poised to play an increasingly important role.
