PTFE rod cut blanks

Description

1. Product Overview

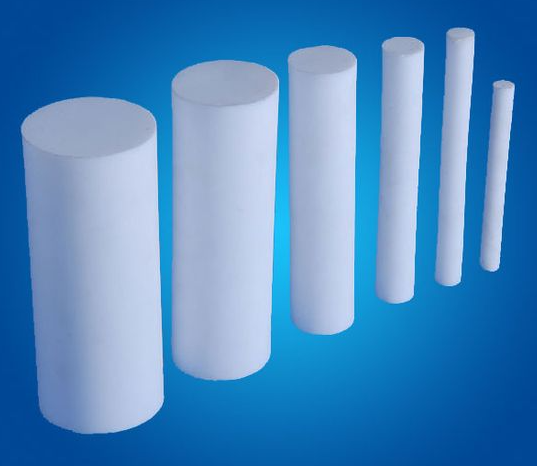

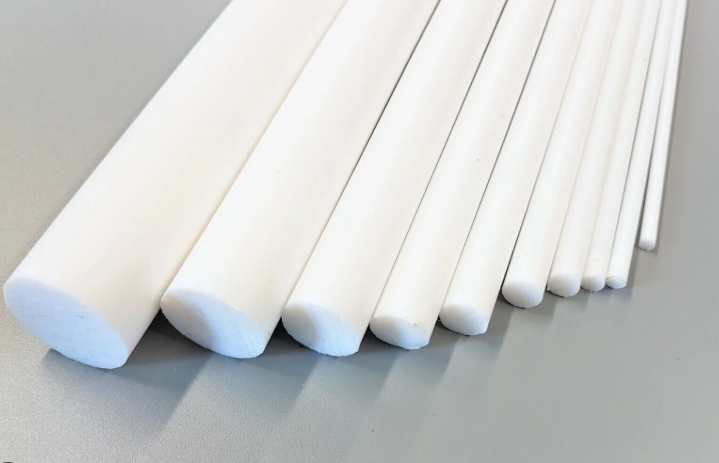

PTFE Rod Cut Blanks are precision-cut sections of polytetrafluoroethylene (PTFE) rod material designed for machining into custom-engineered components requiring exceptional chemical resistance, low friction, and long-term performance. These blanks are widely used by manufacturers producing seals, bearings, bushings, insulators, valve components, and specialized mechanical parts across demanding industrial environments. Their superior dimensional stability, non-stick properties, and resistance to extreme temperatures make them a strategic material choice for high-performance applications. As industries increasingly prioritize durable, corrosion-resistant engineering materials, PTFE rod cut blanks provide reliable solutions for advanced manufacturing and maintenance operations.

2. Key Specifications & Technical Characteristics

• Material Composition: 100% Polytetrafluoroethylene (PTFE) fluoropolymer resin
• Chemical Structure: Carbon-fluorine polymer chain providing outstanding chemical inertness and thermal stability
• Grade Options: Virgin PTFE, modified PTFE, filled PTFE grades (glass fiber, carbon, graphite, bronze filled options available)
• Purity Level: High-purity industrial grade; virgin grades available for applications requiring minimal contamination
• Physical Form: Precision-cut cylindrical rod blanks suitable for CNC machining and fabrication
• Color: Standard natural white; custom colors available depending on grade and application requirements
• Density: Approximately 2.10–2.30 g/cm³ depending on formulation and filler content
• Operating Temperature Range: Approximately -200°C to +260°C continuous service capability
• Surface Characteristics: Low-friction, non-stick surface with excellent wear and chemical resistance
• Electrical Properties: High dielectric strength and excellent insulation performance
• Dimensional Accuracy: Manufactured with controlled tolerances for precision machining applications
• Packaging Options: Export-grade cartons, wooden cases, pallets, or customized industrial packaging
• Shelf Life: Long service life when stored in clean, dry conditions away from direct sunlight and contamination

3. Core Industrial Applications

• Chemical Processing Industry: Used for manufacturing corrosion-resistant seals, valve seats, pump components, and lining parts exposed to aggressive chemicals and solvents.
• Oil & Gas Sector: Applied in high-performance sealing systems, gaskets, wear rings, and components requiring chemical and temperature resistance.
• Automotive & Transportation: Machined into bushings, bearings, washers, and low-friction components for improved durability and reduced maintenance.
• Electrical & Electronics Manufacturing: Used for insulation components, connectors, spacers, and precision electrical parts due to excellent dielectric properties.
• Food & Pharmaceutical Equipment: Virgin PTFE grades support hygienic applications requiring non-contamination and chemical resistance.
• Industrial Machinery: Provides reliable replacement parts for sliding surfaces, guides, and wear components where reduced friction improves equipment efficiency.

Performance Advantages Over Alternatives:
PTFE rod cut blanks outperform many conventional plastics and metals in chemically aggressive environments due to their exceptional corrosion resistance, low friction coefficient, wide temperature operating range, and extended service life. They reduce maintenance frequency, minimize component wear, and improve operational reliability in critical equipment.

4. Competitive Advantages

• Quality Consistency: Produced from controlled PTFE raw materials with stable mechanical properties and reliable machining performance.
• Supply Reliability: Supported by scalable manufacturing capacity to meet both standard and customized industrial requirements.
• Logistics Capability: Available in export-ready packaging with flexible shipment options for global industrial buyers.
• Price Competitiveness: Offers cost-efficient performance compared with specialized metal alloys and high-performance engineering plastics.
• Customization Capability: Available in various diameters, lengths, tolerances, and filled formulations to match specific engineering needs.
• Sustainability Benefits: Long service life reduces replacement frequency, material waste, and overall lifecycle costs.
• Technical Support & Documentation: Material specifications, quality certificates, dimensional reports, and technical documentation available upon request.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity: Approximately 20 MT per 20-foot container (subject to product dimensions and packaging configuration)
