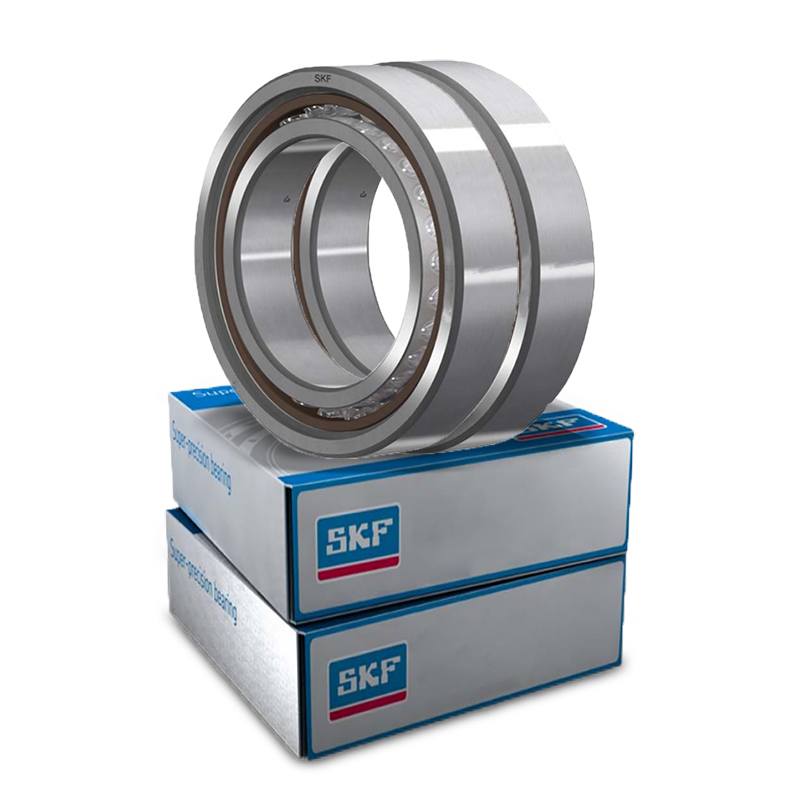

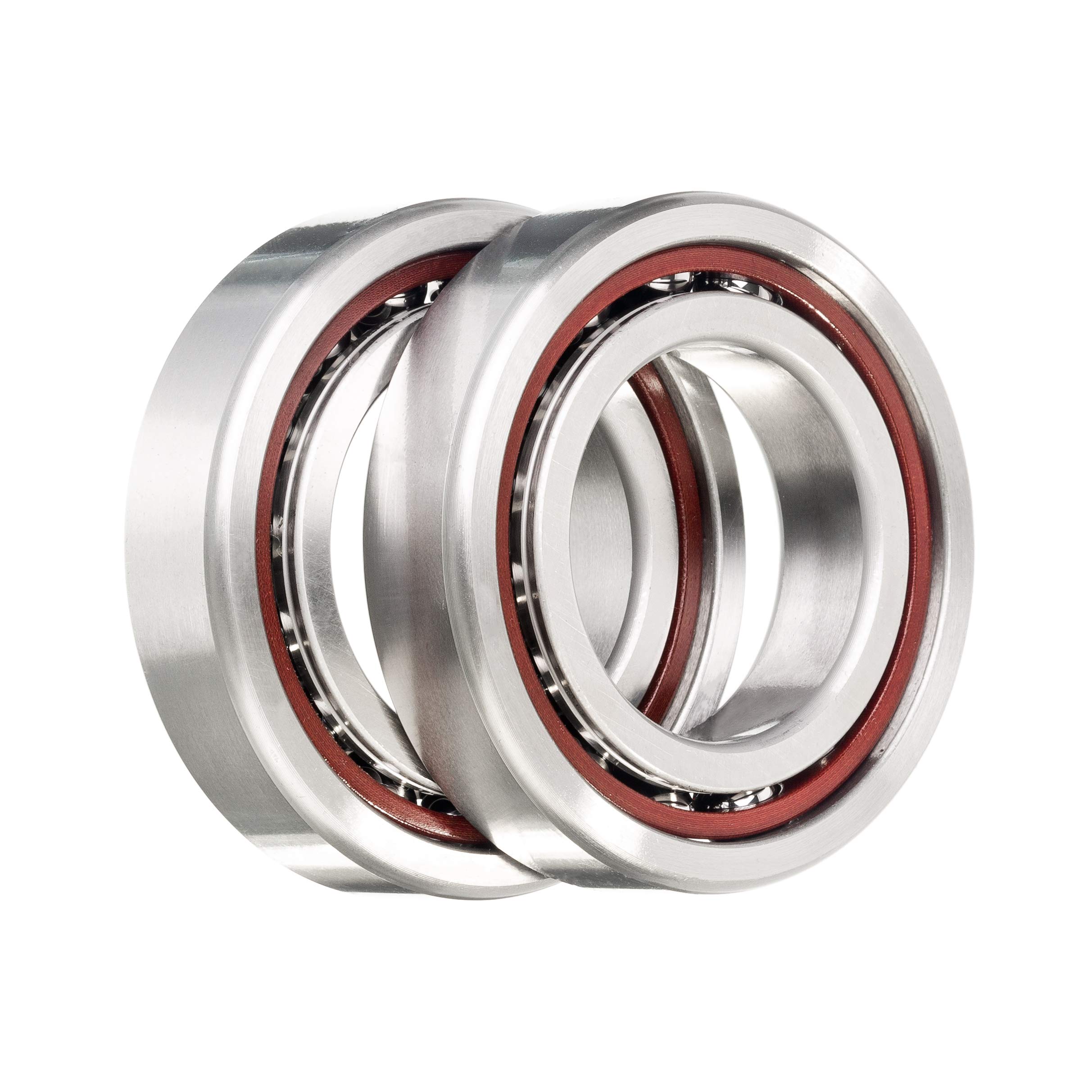

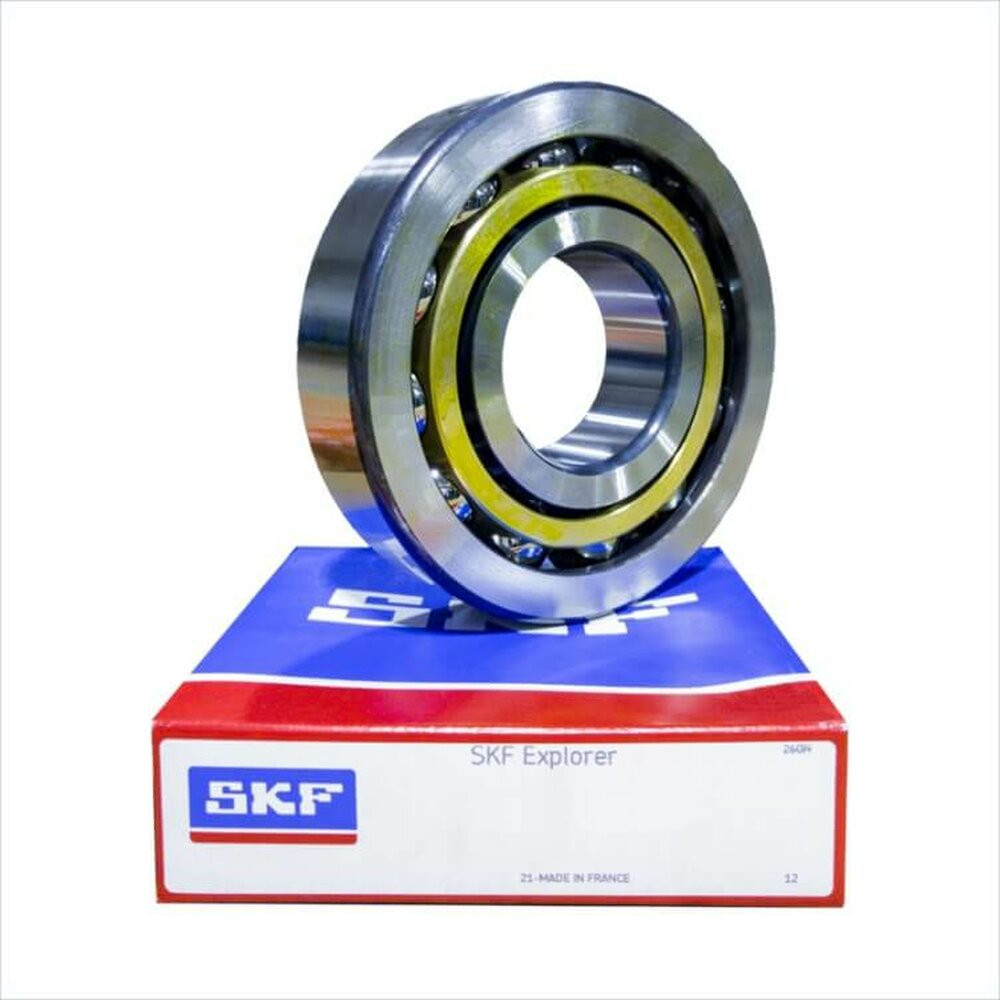

Precision Spindle Bearings (SKF 70 SERIES)

Description

1. Product Overview

The SKF 70 Series Precision Spindle Bearings are ultra-high-precision angular contact ball bearings engineered for machine tool spindles requiring exceptional rotational speed, rigidity, and positional accuracy. Primary industrial use centers on CNC machining centers, grinding spindles, and high-frequency motor spindles where micron-level runout and thermal stability are non-negotiable. The key value proposition lies in their ability to sustain prolonged high-speed operation with minimal friction and heat generation, directly translating to superior surface finish, longer tool life, and reduced unplanned downtime. Strategically, these bearings are critical enablers for manufacturers transitioning to Industry 4.0—enabling faster cycle times and tighter tolerances in aerospace, automotive, and precision components production.

2. Key Specifications & Technical Characteristics

• Material Composition: High-purity through-hardened chromium steel (100Cr6 / AISI 52100) with controlled retained austenite content; ceramic rolling elements (Si3N4 – Grade 5) in hybrid variants

• Purity / Grade: ABEC 7 (ISO P4) as baseline; ABEC 9 (ISO P2) available for ultra-high precision applications

• Physical Characteristics:

  • Form: Single-row angular contact, 15° or 25° contact angle (70 BEP / 70 ACE / 70 CD series)

  • Inner diameter range: 10 mm – 200 mm

  • Raceway surface finish: Ra ≤ 0.025 µm

  • Cage: Phenolic resin (standard), PEEK or brass for chemical/speed variants

• Dimensional & Running Accuracy:

  • Radial runout (Kia): ≤ 2.0 µm (P4) / ≤ 1.0 µm (P2)

  • Axial runout (Sia): ≤ 2.0 µm (P4) / ≤ 1.5 µm (P2)

• Packaging Options: Single vacuum-sealed anti-corrosion polywrap + individual plastic cartridge + 10-piece sealed bulk box; export wooden case with desiccant and shock indicator

• Shelf Life: 5 years in unopened, climate-controlled storage (RH < 60%, 15–25°C)

3. Core Industrial Applications

• Primary Industries: Aerospace engine components, automotive transmission machining, precision mold & die, medical implant manufacturing, semiconductor equipment spindles

• Specific Operational Use Cases:

  • High-speed milling (30,000–60,000 rpm) – hybrid Si3N4 rolling elements reduce centrifugal force

  • Grinding spindles for bearing raceways – P2-grade runout delivers sub-micron roundness

  • High-rigidity turning centers – 25° contact angle provides increased axial load capacity

• Performance Advantage vs. Alternatives:

  • Lower heat generation (∆T reduction of 8–12°C vs. standard C0 clearance bearings) → less spindle growth

  • Universal matching design (SU, DU, BE, CE suffixes) reduces inventory SKUs and enables duplex/triplex arrangement without custom ordering

  • 3x longer L10 fatigue life under mixed lubrication conditions compared to generic P5 bearings

• Efficiency / Cost Advantage: Reduces spindle rebuild frequency by ~40% in high-duty cycles; lowers energy consumption by up to 6% due to reduced viscous drag

4. Competitive Advantages

• Quality Consistency: Every bearing 100% vibration-tested (S2‑S4 noise levels per ISO 15242) and torque-tested before packaging; batch traceability to heat lot

• Supply Reliability: Global inventory hubs (Americas, EMEA, APAC) with 98% line-item fill rate; 48‑hour emergency dispatch for AOG/critical breakdowns

• Logistics Capability: Export crating certified for ISTA 3E (vibration/drop/compression); optional bonded warehouse delivery for duty-deferred markets

• Price Competitiveness: Tier-1 OEM direct contracting eliminates distributor markups on volumes ≥ 100 units; hybrid ceramic variants priced at 65% of equivalent German premium brands

• Sustainability: Lead-free grease (NSF H1), 100% recyclable steel and packaging; manufacturing facility ISO 50001 (energy management) certified

• Technical Support: Full 3D CAD models (STEP/IGES) + mounting torque specs + FEA-based preload calculator; field application engineers accessible within 24 hours

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ):

  • Standard steel (P4): 10 pieces per SKU

  • Hybrid ceramic (P4 / P2): 25 pieces per SKU

  • Mixed assortment (different bore sizes): 50 pieces total

• Bulk Loading Capacity:

  • 20 MT per 20-ft dry container (approx. 38,000 units of 70 mm bore bearings, or equivalent mix)

  • Palletized configuration: 24 export pallets per container (1,200 mm x 1,000 mm each)

• Lead Time: 14–21 days ex-warehouse (stocked SKUs); 8–12 weeks for factory-made P2 / special contact angle
