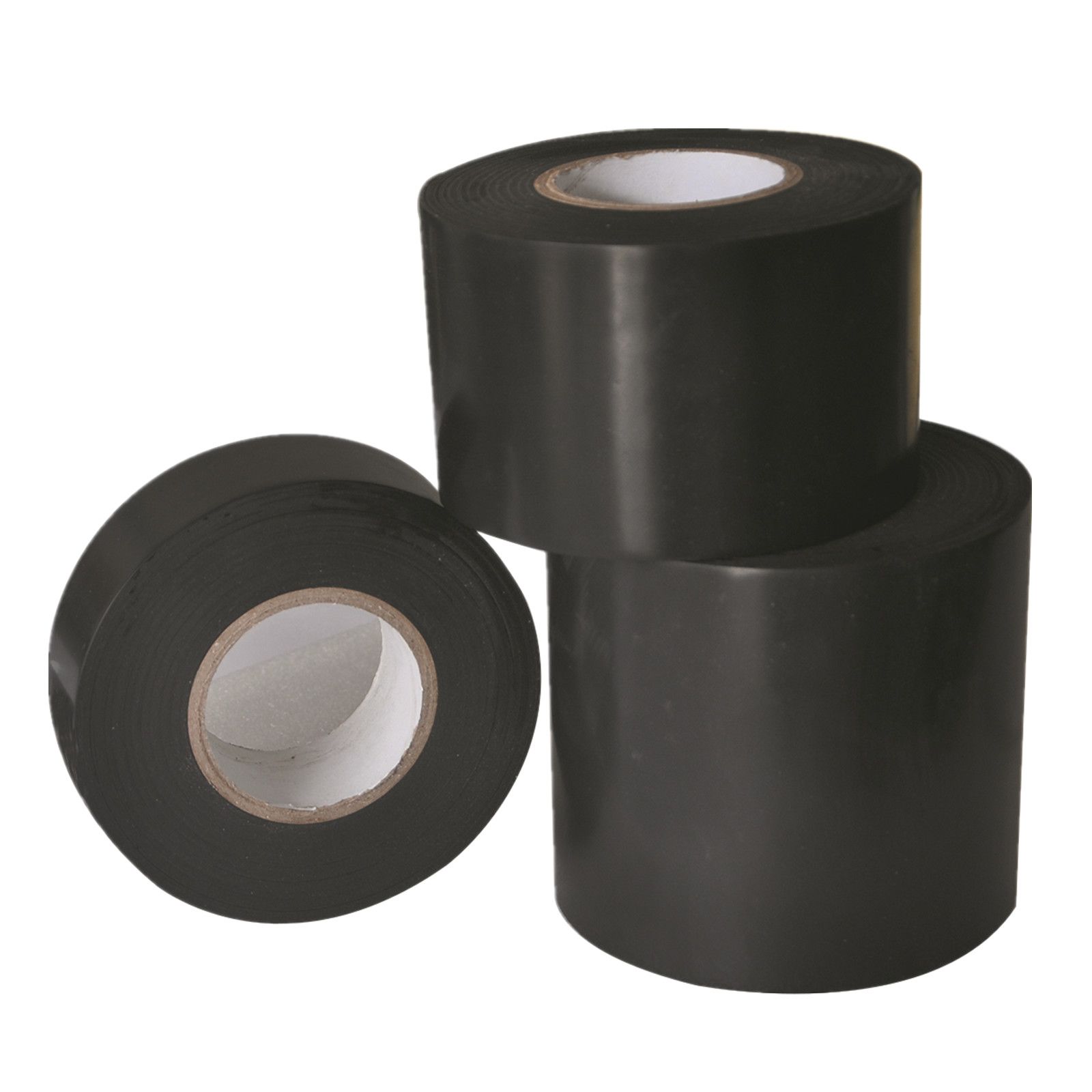

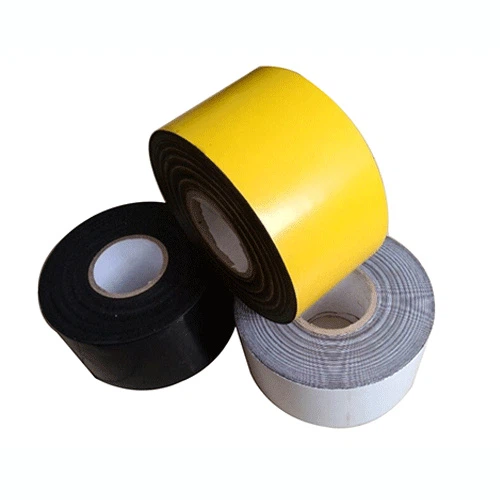

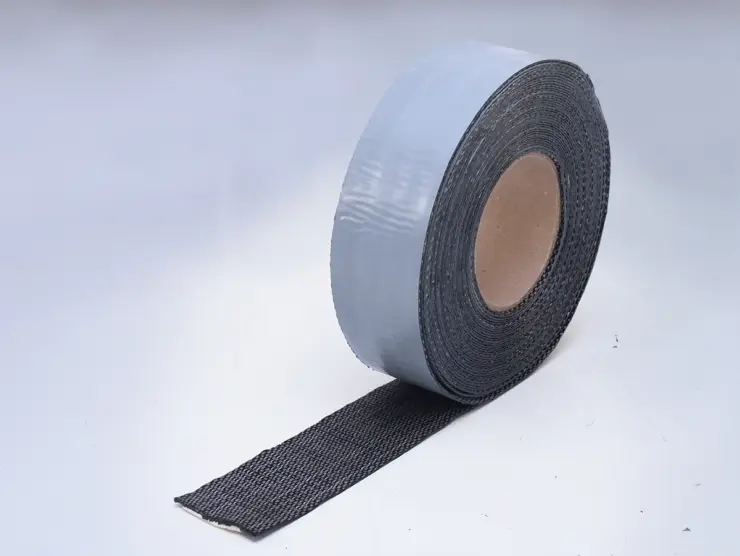

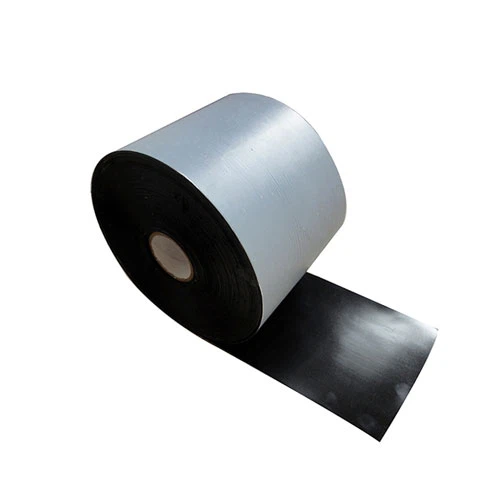

Pipeline Coating Tape — Corrosion protection

Description

Product Overview
This is a high-performance, cold-applied pipeline coating tape engineered to provide long-term corrosion protection for oil, gas, water, and petrochemical pipelines. Its primary use is as a anti-corrosion wrap for field-joint coatings, pipe rehabilitation, and buried or submerged pipelines. The key value proposition is superior adhesion, dielectric strength, and resistance to cathodic disbondment, reducing lifecycle maintenance costs. Strategically, it enables asset owners to extend pipeline integrity in harsh environments, directly impacting operational uptime and regulatory compliance.

Competitive Advantage Spotlight
Superior cathodic disbondment resistance and conformability to irregular pipe surfaces, ensuring no void formation; backed by full traceability and third-party testing to ISO 21809-3 and DIN 30672 standards.

1. Key Specifications & Technical Characteristics

• Chemical composition: Multi-layer laminate of polyethylene or polypropylene backing with a butyl rubber or bitumen-based adhesive compound

• Purity/grade: Industrial grade; meets ISO 21809-3, DIN 30672, NACE SP0169

• Physical characteristics:

  • Thickness: 0.5 mm – 1.2 mm (backing + adhesive)

  • Color: Black, grey, or blue

  • Width: 50 mm – 300 mm

  • Density: 0.92 – 0.97 g/cm³ (backing)

• Packaging options: Non-overlapping plastic cores; shrink-wrapped roll packs, cartons, or palletized industrial reels

• Shelf life: 36 months in original packaging, stored at 5°C–35°C away from UV and humidity

2. Core Industrial Applications

• Primary industries: Oil & gas transmission, water/wastewater utilities, chemical processing, mining slurry lines, offshore platforms

• Specific use cases: Field-joint coating for FBE or 3LPE pipelines; rehabilitation of aged or damaged pipe coatings; repair of girth welds and fittings

• Performance advantage: Cold application eliminates hot work hazards; self-healing adhesive layer seals minor mechanical damage; outperforms shrink sleeves in irregular geometries and low-temperature installation

• Efficiency gains: Reduces application time by 40% compared to heat-shrink systems; no primers needed on properly prepared steel (specific variants); cost advantage of up to 25% in total installed cost vs. liquid epoxies

3. Competitive Advantages

• Quality consistency: Batch-to-batch adhesion peel strength variation <5%; factory-tested dielectric strength (35kV+)

• Supply reliability: Available ex-stock from regional hubs (Americas, Europe, MENA, SE Asia); 48-hour emergency dispatch

• Logistics capability: 20 MT per 20ft container; bulk roll stacking minimizes shipping volume

• Price competitiveness: Tier-1 performance at 15-20% below European premium brands; volume discounts for multi-year supply contracts

• Sustainability: Solvent-free manufacture; 100% solid adhesive; recyclable backing per ISO 15270

• Technical support: Digital QC certificates with each batch; on-site application training; engineering datasheets and installation videos

4. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 2 metric tons (MT) per product type/size

• Bulk order quantity: 20 MT (full container load)

• Loading capacity: 20 MT per 20ft standard container (palletized); 26 MT per 40ft HC
