Nylon 66 PA66

Description

1. Product Overview
Nylon 66 (PA66) is a high-performance, semi-crystalline engineering thermoplastic derived from the polycondensation of hexamethylenediamine and adipic acid. It is primarily used in high-stress industrial components such as automotive under-hood parts, electrical connectors, and mechanical assemblies requiring superior thermal and mechanical resistance. The key value proposition lies in its exceptional balance of stiffness, toughness, and heat deflection temperature under load. Strategically, PA66 remains the material of choice for manufacturers transitioning to lightweight, durable solutions that reduce system costs while maintaining safety and performance standards in global supply chains.

2. Key Specifications & Technical Characteristics

• Chemical composition: Polyhexamethylene adipamide (PA66), virgin homopolymer or prime recycled grades available

• Purity level / Grade: Prime virgin (≥99.5% monomer conversion), Industrial A-grade, Heat-stabilized (HS) and UV-stabilized variants

• Physical characteristics:

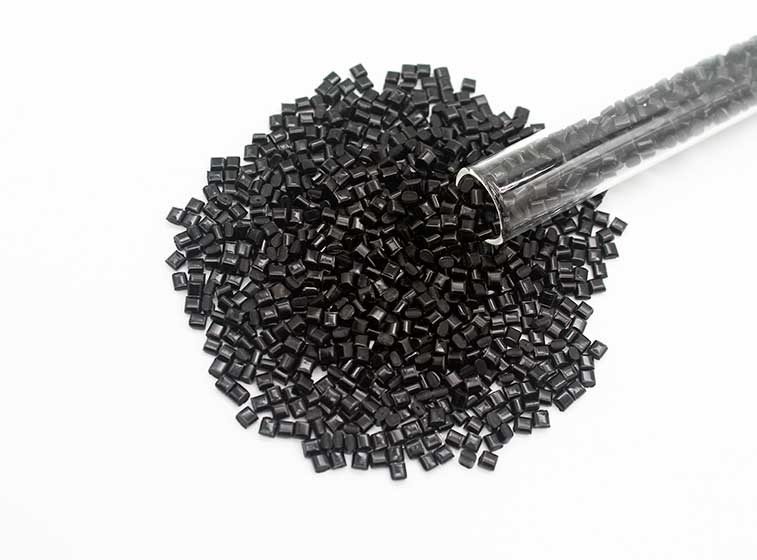

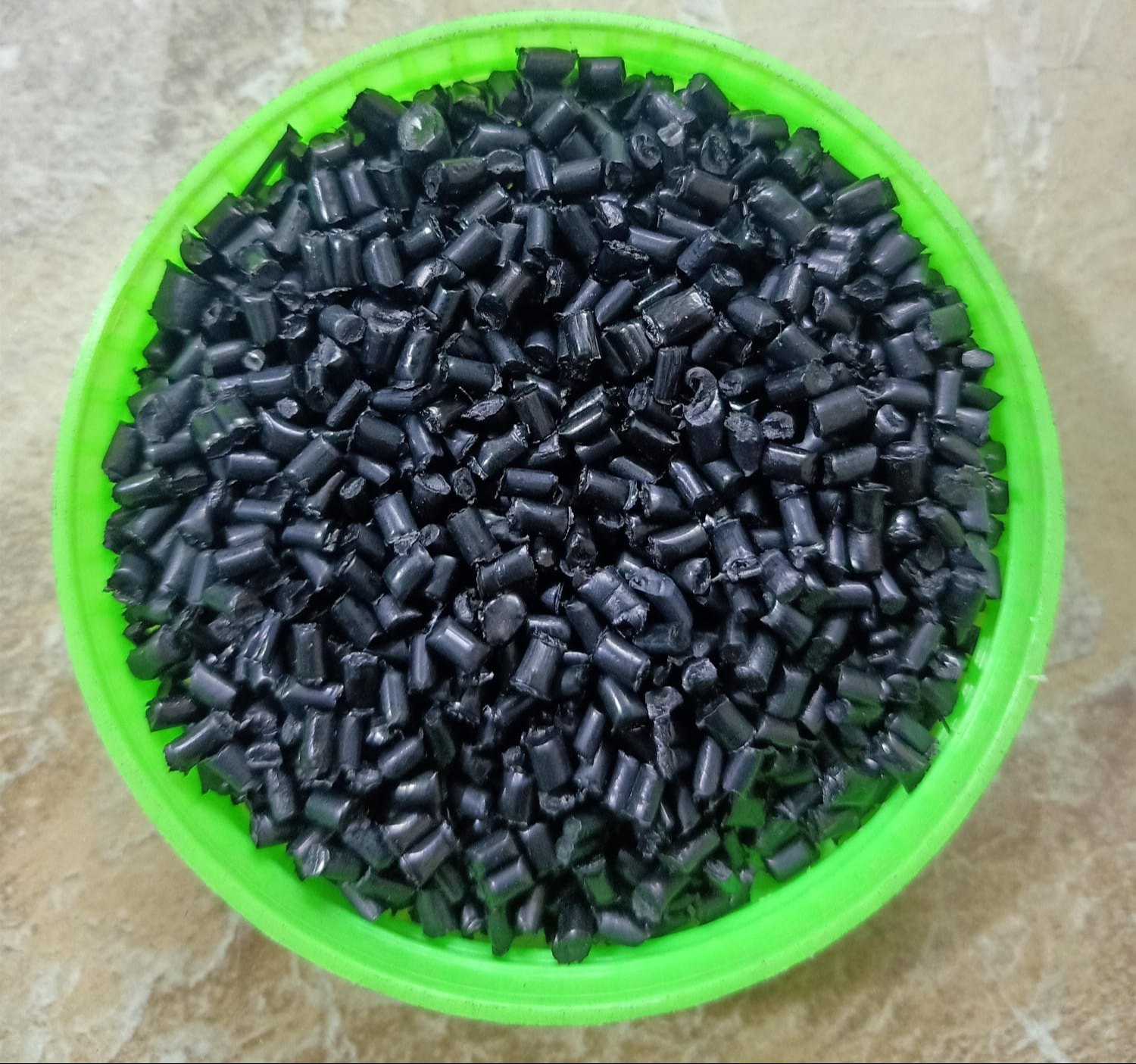

  • Form: Cylindrical pellets (2–3 mm length, 1.5–2.5 mm diameter)

  • Color: Natural off-white to light cream; also black (carbon black masterbatch)

  • Density: 1.13–1.15 g/cm³ (unreinforced)

  • Melt Flow Index (MFI): 15–35 g/10 min (265°C/2.16 kg, depending on viscosity grade)

  • Melting point: 260–265°C

  • Deflection temperature under load (HDT): 85–105°C at 1.82 MPa

• Packaging options: 25 kg moisture-barrier bags (aluminum foil-lined); 500 kg FIBC super sacks; 1,200 kg palletized shrink-wrapped units

• Shelf life: 24 months in unopened, dry, original packaging (≤0.2% moisture content). Reseal after opening to prevent hydrolysis.

3. Core Industrial Applications

• Automotive: Radiator end tanks, engine covers, cooling fans, throttle bodies. Outperforms PA6 in higher continuous operating temperature (up to 180°C short-term) and creep resistance at 150°C.

• Electrical & Electronics: Connectors, circuit breakers, relay bases. Provides superior arc resistance and comparative tracking index (CTI ≥ 550V) vs. standard polyesters.

• Industrial machinery: Gears, bearings, wear plates, pneumatic valves. Low coefficient of friction (0.25–0.35 dynamic) and excellent abrasion resistance reduce maintenance intervals by 30–40% compared to acetal copolymers.

• Consumer goods: Power tool housings, zippers, cable ties. Higher tensile strength (85–90 MPa) than PA6 allows thinner wall designs, reducing part weight and cycle times.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025-certified production with SPC monitoring; lot-to-lot viscosity stability within ±0.05 relative viscosity (RV).

• Supply reliability: Dual-sourced DMT and adipic acid feedstocks; 12-month rolling forecast commitment with 98% on-time delivery rate to 40+ countries.

• Logistics capability: Inventory hubs in Rotterdam, Houston, and Shanghai — lead time 5–7 days for regional stock, 18–21 days for direct FOB shipment.

• Price competitiveness: Tier-1 volume discount structure: $0.20–0.30/kg below European spot averages for annual contracts ≥500 MT.

• Sustainability: ISCC PLUS certified mass-balanced recycled PA66 available with up to 70% lower carbon footprint (vs. virgin). Full EPD upon request.

• Technical support: Free CAE simulation data (Creep, S-N curves, Weld line strength); on-site molding troubleshooting within 72 hours.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 metric tons (MT) per grade and color

• BULK loading capacity: 20 MT per 20-foot dry container (palletized, 24 MT if super sacks and floor-loaded)

• Base unit for quotation: FOB any major port (Antwerp, Houston, Shanghai) or CIF/CIP upon request

• Typical payment terms: LC at sight or 30% TT advance + 70% against B/L copy (subject to credit approval)
