Nylon 6 PA6 cast

Description

1. Product Overview
Nylon 6 PA6 Cast is a high-molecular-weight engineering thermoplastic produced via anionic polymerization, offering superior mechanical strength, wear resistance, and dimensional stability compared to extruded grades. It is primarily used in heavy-duty industrial components such as gears, bushings, and structural parts for manufacturing, automotive, and material handling sectors. The key value proposition lies in its exceptional fatigue resistance and ability to be cast near-net shape, reducing machining waste and total cost of ownership. Strategically, it is critical for buyers seeking to replace metal parts with lightweight, corrosion-resistant polymers in high-load, continuous-operation environments.

2. Key Specifications & Technical Characteristics

• Chemical composition: Polycaprolactam (PA6), anionic polymerized, unfilled or customizable with MoS₂, oil, or glass fiber additives

• Purity / Grade: Virgin industrial grade / ASTM D4066 Group PA6, Class 1, Grade 1

• Physical characteristics:

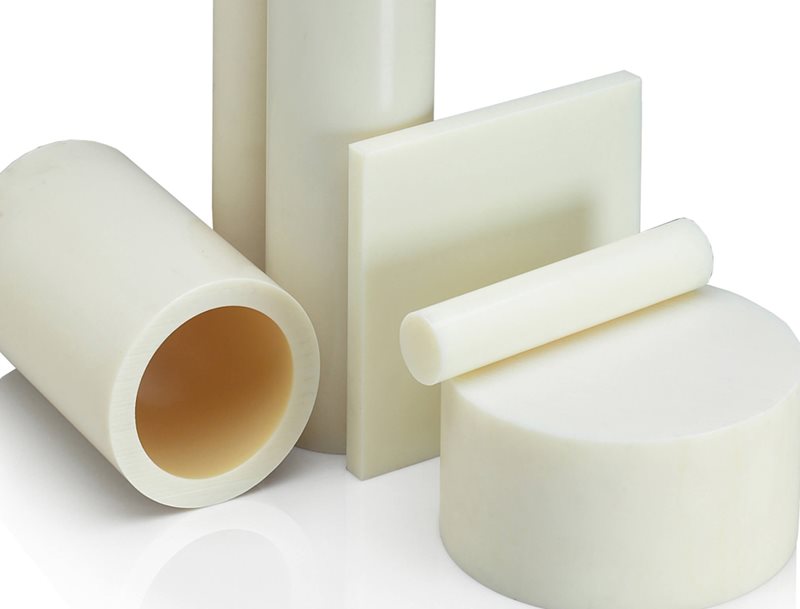

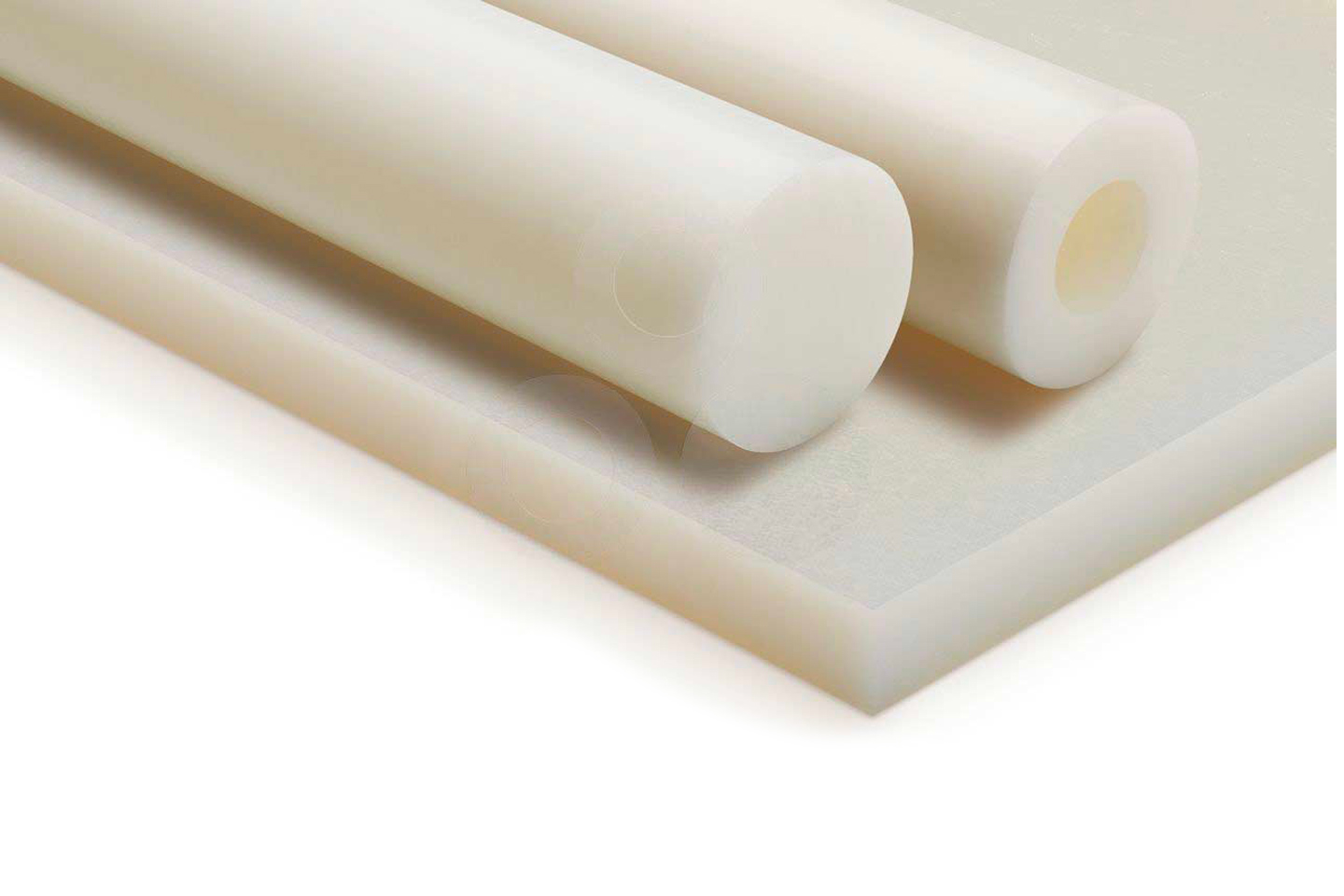

  • Form: Cast monolithic shapes (rods, plates, tubes) or near-net custom blanks

  • Color: Natural (off-white to cream) / Black (carbon-stabilized for UV resistance)

  • Density: 1.13–1.16 g/cm³

  • Water absorption (saturation): ~2.5–3.5% (balanced for dimensional tolerance)

• Packaging options: Anti-static shrink wrap + wooden crates for export, individual part bagging available upon request

• Shelf life: 36 months when stored <40°C, away from direct UV and strong oxidizers

3. Core Industrial Applications

• Heavy machinery & automation: Cast nylon gears, sprockets, and wear pads – outperforms extruded PA6 in fatigue life by 30–40% due to higher crystallinity and internal stress reduction.

• Material handling: Conveyor chain guides, rollers, and bucket elevator components – superior abrasion resistance vs. HDPE and lower noise than steel.

• Automotive & off-highway: Air brake system bushings, hydraulic cylinder wear rings – maintains impact strength down to -40°C, unlike cheaper injection-molded alternatives.

• Food processing: FDA-compliant grades available – no detectable metal contamination risk, reducing product recall exposure.

Efficiency advantage: Cast shapes reduce scrap rates from >50% (machined from extruded rod) to <15% via near-net casting.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 certified production with 100% dimensional inspection reporting per batch; lot traceability to raw material certificate of analysis.

• Supply reliability: Dual-sourced monomer supply chain with 98.7% on-time-in-full performance over 24 months.

• Logistics capability: Global warehousing in Rotterdam, Houston, Shanghai, and Dubai – 48-hour dispatch for standard shapes.

• Price competitiveness: Tier-1 volume pricing (20+ MT/month) within 5–8% of Chinese standard extruded PA6, despite 2x better fatigue life.

• Sustainability: 35% post-industrial recycled content available for non-food applications; casting process generates 60% less CO₂ per kg than injection molding.

• Technical support: In-house polymer engineers provide FEA material cards (Ansys, Abaqus) and on-site troubleshooting for installation failures.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 500 kg per shape type (plate, rod, tube)

• Bulk 20MT minimum: 20 metric tons per shipment for custom pricing and dedicated lot production

• Loading capacity (MT per container):

  • 20-ft dry container: 18–20 MT (depending on part geometry and packaging density)

  • 40-ft high-cube: 22–24 MT maximum for solid plates; reduced for large-diameter tubes
