Needle roller bearing NK30

Description

1. Product Overview

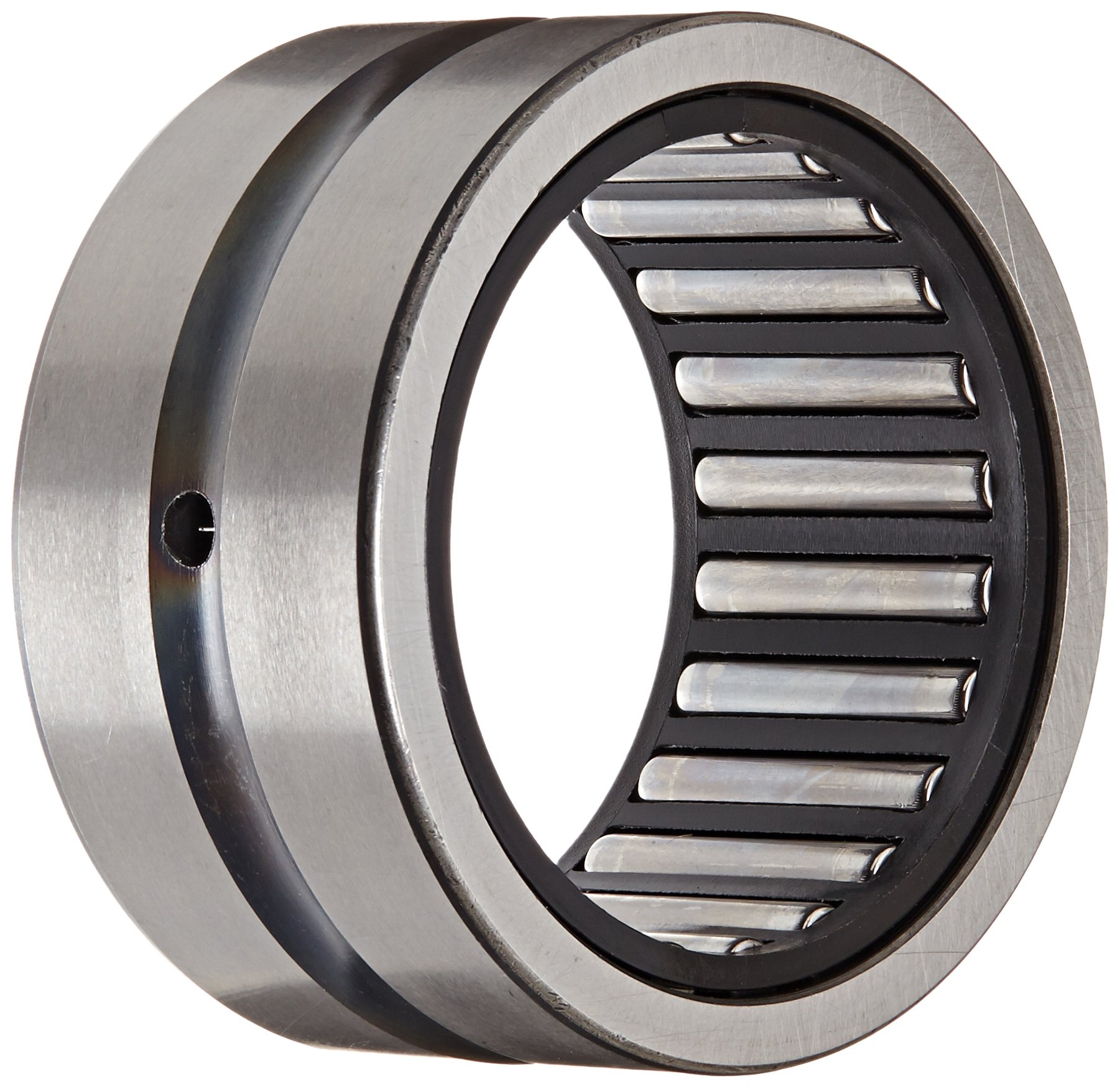

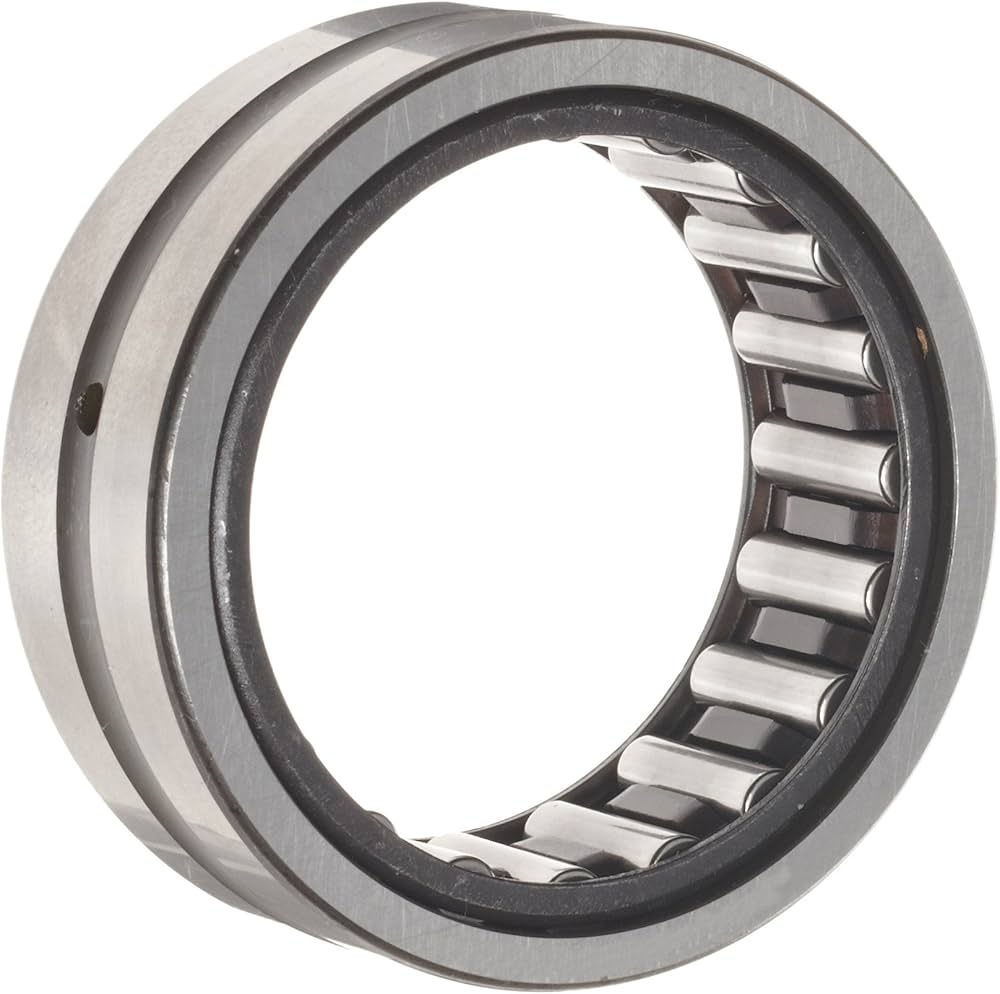

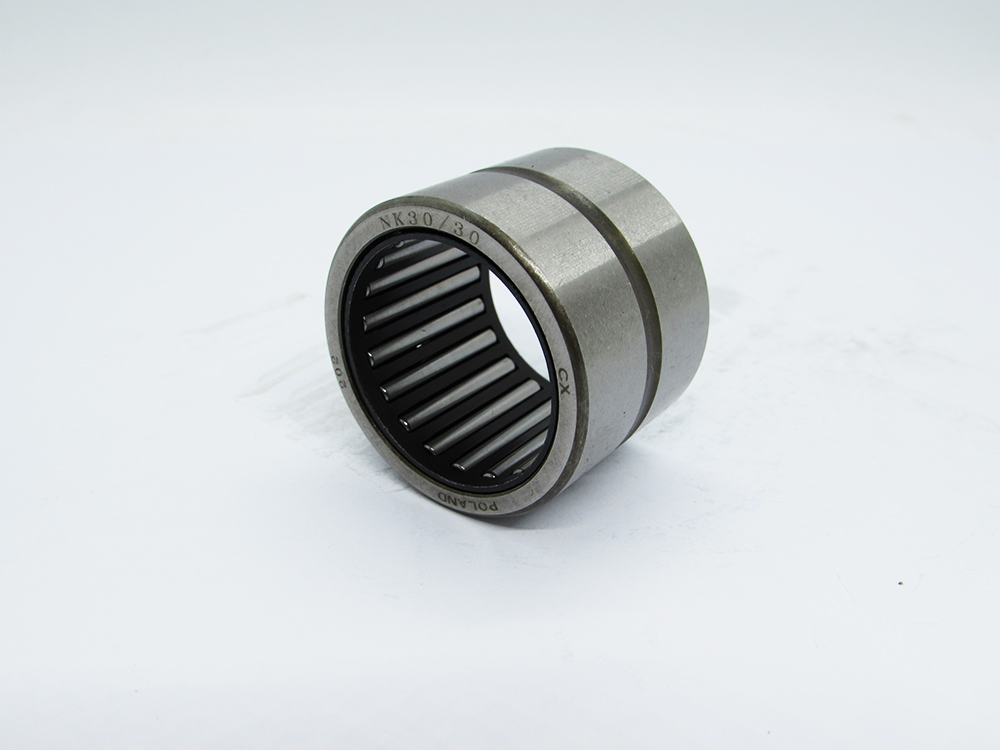

The Needle roller bearing NK30 is a high-precision radial bearing engineered for heavy-duty rotary and reciprocating applications that require high load capacity in constrained radial space. Designed for industrial power transmission, gearboxes, pumps, and machine tool spindles, the NK30 delivers superior load-bearing performance with minimal profile compared to conventional cylindrical roller bearings. Its key value proposition is a combination of compactness, high dynamic and static load capacity, and reliable service life under mixed-load conditions. Strategically, the NK30 reduces equipment footprint and maintenance frequency, improving asset uptime and lowering total cost of ownership for industrial operators.

2. Key Specifications & Technical Characteristics

• Bearing type: Needle roller bearing, drawn cup style without inner ring (NK series style geometry).

• Model: NK30 (inner diameter/nominal bore: 30 mm).

• Outer diameter / width: Industry-standard NK30 envelope (confirm with datasheet for exact OD and width for mating housings).

• Rolling elements: High-carbon chromium steel needle rollers, hardened and precision ground.

• Cage: Steel pressed cage (standard); optional polyamide or brass cages available on request.

• Ring material / raceway: Through-hardened bearing steel, typically GCr15 / SAE 52100 or equivalent.

• Hardness: Bearing raceways and rollers hardened to typical bearing grades (HRC 58–64) per industry practice.

• Surface finish: Precision ground raceways and rollers to ISO/ABEC-equivalent tolerances for smooth operation and low vibration.

• Lubrication: Supplied unlubricated (standard) or pre-lubricated with industrial grease upon request; compatible with mineral oil, synthetic oils, and specialty lubricants.

• Load ratings: High radial load capacity for axial displacement accommodation; consult manufacturer catalog for dynamic/static ratings for NK30.

• Running clearance: Standard C0/C3 options available to suit operating temperature and fits.

• Operating temperature range: Typical bearing steels usable from approximately -40 °C to +120 °C (dependent on lubrication and cage material).

• Corrosion protection: Standard passivation; optional plating or stainless-steel variants available for corrosive environments.

• Tolerances & quality classes: Available in standard and precision classes (P0/P6/P5) depending on application requirements.

• Packaging options: Individual protective sleeve and box; bulk boxes (25–100 pcs); palletized crates for bulk shipments; export-ready wooden crates or steel cages for large orders.

• Shelf life: Indefinite when stored in original sealed packaging in a dry, temperature-controlled environment; recommended usage within 3–5 years for pre-lubricated units to ensure grease performance.

3. Core Industrial Applications

• Primary industries: Heavy machinery, automotive assembly, industrial gearboxes, agricultural equipment, construction equipment, material handling, textile machinery, printing presses, and machine tool manufacturers.

• Specific use cases:

  • High radial-load shafts where axial displacement must be accommodated (gearbox intermediate shafts).

  • Compact bearing arrangements in transmissions and transfer cases where low profile is required.

  • High-speed rotary applications in machine tools and spindles where low vibration and precision are required.

  • Reciprocating pumps and compressors needing robust roller contact under repeated load cycles.

• Performance advantages vs alternatives:

  • Higher radial load capacity per unit cross-section than ball bearings, allowing smaller bearing envelopes and reduced component weight.

  • Better shock-load tolerance and longer fatigue life compared with plain bearings in similar installations.

  • Easier integration into constrained housings compared with full cylindrical roller bearings, reducing redesign and BOM cost.

• Commercial relevance: Choosing NK30 enables OEMs and MRO teams to downsize assemblies, improve service intervals, and increase machine throughput due to reduced downtime and higher bearing life.

4. Competitive Advantages

• Quality consistency: Manufactured to strict metallurgical, heat-treatment, and dimensional control processes; traceable batch certification available.

• Supply reliability: Industrial-scale production capacity with planned reorder lead times, safety stock, and vendor-managed inventory options for critical users.

• Logistics capability: Export-ready packaging, consolidated sea/air freight options, vendor consolidation for multi-site rollouts, and DDP shipping available upon request.

• Price competitiveness: Optimized manufacturing and sourcing deliver a cost/benefit profile favorable to long-run OEM contracts and high-volume MRO procurement.

• Sustainability: Material-efficient design reduces raw material usage per unit; optional low-VOC lubricants and recyclable packaging available to support corporate sustainability targets.

• Technical support: Full technical documentation (dimensional drawings, load rating tables, tolerance charts), installation and lubrication guidance, failure mode analysis support, and engineering liaison for integration and custom variants.

• Strategic sourcing position: NK30 is supplied as a standardized, industrial-grade component that reduces procurement risk and simplifies spares management across global operations.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT (bulk order by mass as specified).

• Loading capacity (MT per container): Typical loading capacity depends on packing configuration; example loading options:

  • 20-foot container (packed boxes/crates): approximately 18–20 MT usable payload for dense packaging.

  • 40-foot container (packed boxes/crates): approximately 22–24 MT usable payload for dense packaging.

• Custom packing and container optimization available to maximize container MT usage and minimize freight cost.

• Lead times: Standard lead time quoted on order confirmation; expedited production and air shipment options available for critical orders.

• Documentation: Commercial invoice, packing list, certificate of origin, material certificates, and inspection reports provided on shipment.

• After-sales: Warranty terms, replacement policy for defective parts, and options for long-term supply agreements and consignment stock are negotiable.
