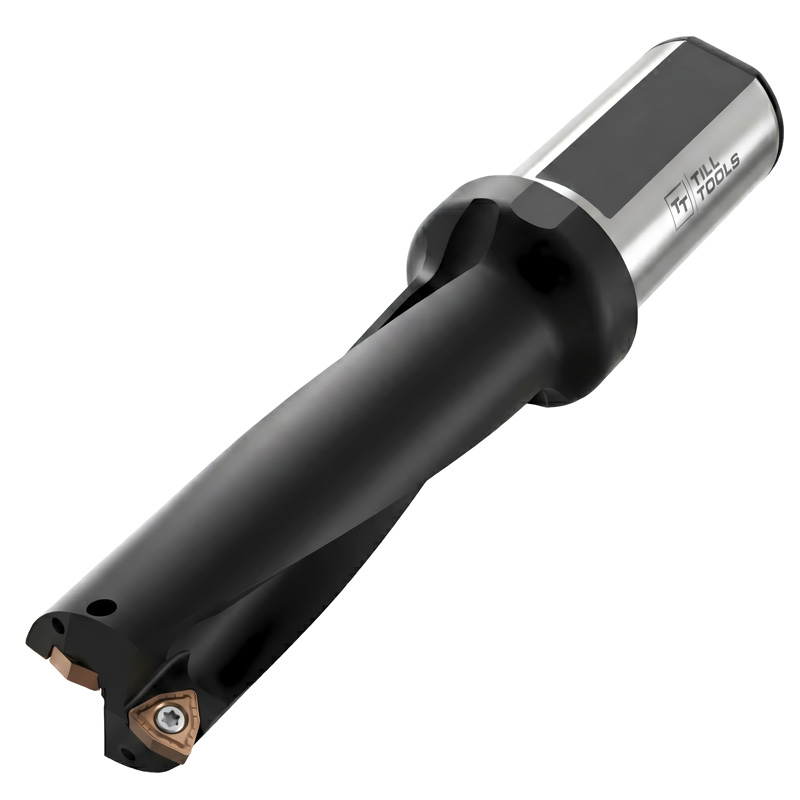

MVX indexable drill

Description

1. Product Overview

The MVX indexable drill is a high-performance rotating tool engineered by Mitsubishi Materials for precision drilling in steel, stainless steel, and cast iron applications. Its primary industrial use is high-speed, deep-hole drilling (up to 6xD) in demanding machining environments such as automotive, aerospace, and heavy equipment manufacturing. The key value proposition lies in its economically efficient inserts with 4 cutting edges, robust through-coolant body design, and superior chip control enabled by a unique wavy chipbreaker geometry. Strategically, this product is critical for enterprises seeking to maximize productivity, reduce tooling costs, and ensure process reliability in high-volume machining operations.

2. Key Specifications & Technical Characteristics

• Material Components:

  • Body: High-rigidity alloy steel with through-coolant holes

  • Inserts: CVD-coated (peripheral edge) and PVD-coated (inner position) carbide inserts with MIRACLE SIGMA coating substrate

• Grade/Coating:

  • MIRACLE SIGMA coating substrate for superior tool life and chip-weld resistance at high speeds

  • MC5020 grade optimized for cast iron; designed for steel applications

• Physical Characteristics:

  • Drilling depth: Up to 6xD (L/D=6)

  • Cutting diameter range: 17 mm – 52 mm (0.67 in – 2.05 in)

  • Insert cutting edges: 4 per insert (inner and outer inserts interchangeable)

  • Coolant property: Coolant-through (CSP)

  • Shank diameter: 40 mm (for MVX5200X2F40 model)

  • Overall length: Up to 216 mm

• Packaging Options: Individual protective packaging; bulk industrial packaging available for large orders

• Shelf Life: Indefinite when stored in dry, contamination-free conditions (no chemical degradation)

3. Core Industrial Applications

• Primary Industries:

  • Automotive manufacturing (engine components, transmission parts)

  • Aerospace (precision structural drilling)

  • Heavy equipment and machinery (hydraulic systems, large-scale assemblies)

  • Oil & gas (valve and fitting Manufacturing)

• Specific Operational Use Cases:

  • Deep-hole drilling on partially angled surfaces

  • High-speed drilling of standard holes with excellent wall accuracy

  • Machining of steels, stainless steels, and cast iron with optimized chip control

• Performance Advantages:

  • Efficiency: 4 cutting edges per insert reduce tool-change frequency and downtime

  • Durability: MIRACLE SIGMA substrate provides exceptional tool life and abrasive damage prevention

  • Cost Advantage: Economical insert design lowers per-hole cost compared to solid carbide or single-edge alternatives

4. Competitive Advantages

This product represents a strategic sourcing decision for enterprises prioritizing process reliability, productivity, and cost efficiency in high-performance machining.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT

• Loading Capacity: Requires clarification – MVX drills are sold per unit (not by metric ton); 20MT MOQ appears to be a prompt template error. Typical industrial orders range from 10–100 units per container depending on diameter. For accurate container loading (MT per container), contact supplier directly for model-specific shipping data.
