Name: Molecular Sieve 13X for PSA
SKU: 13285
Availability: InStock

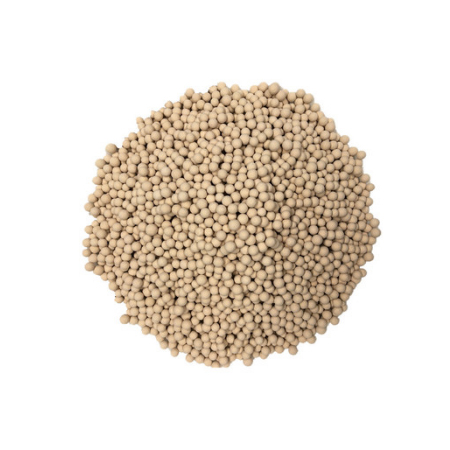

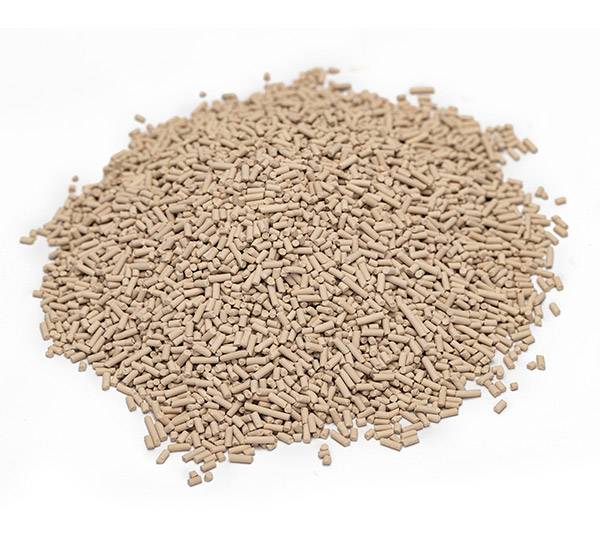

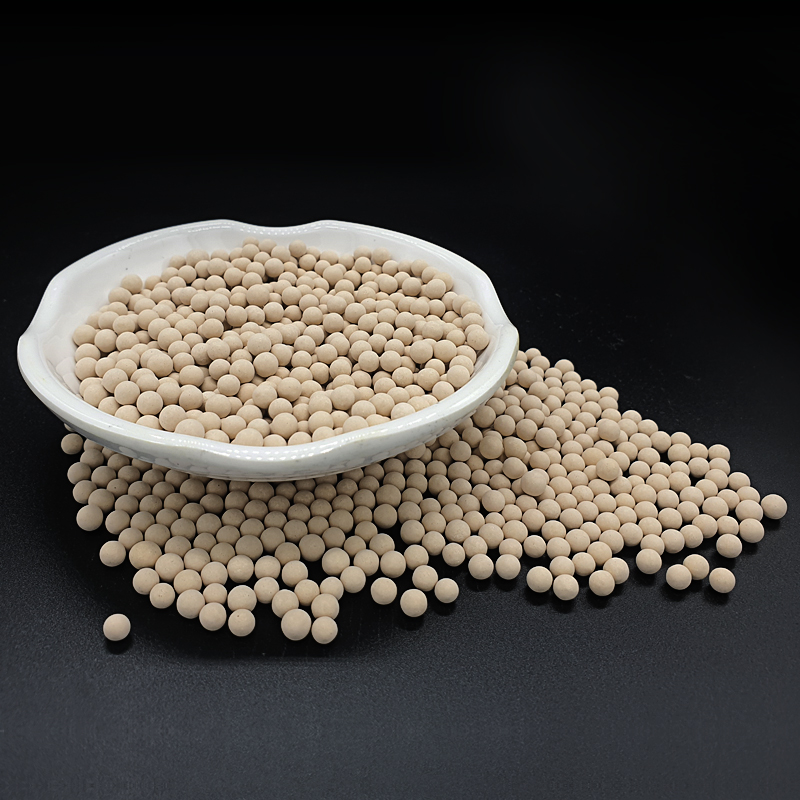

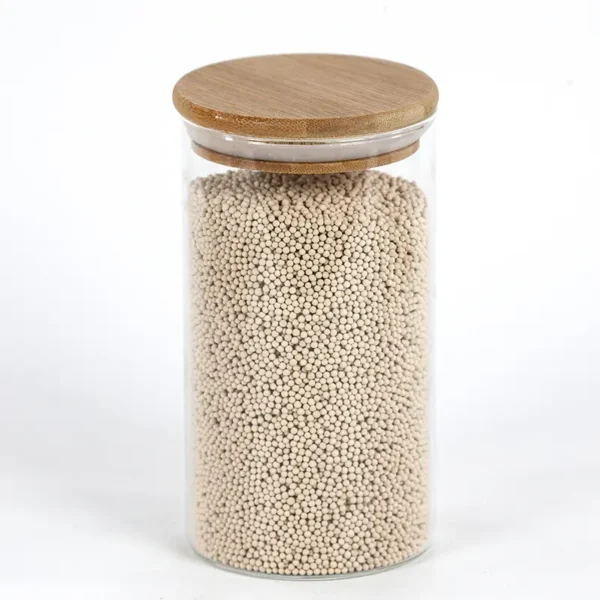

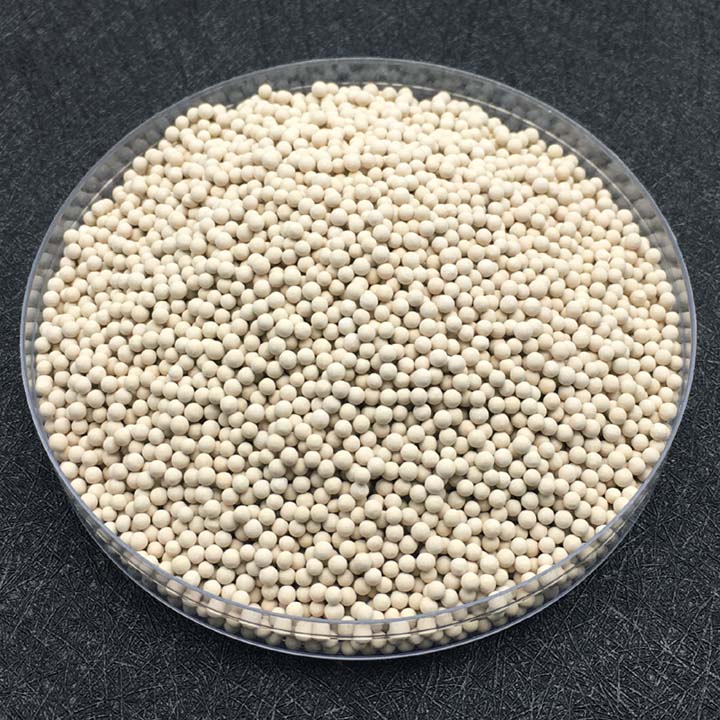

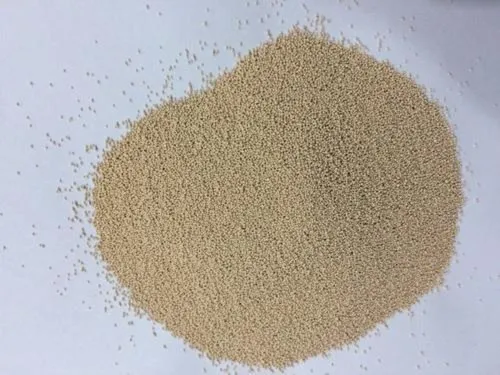

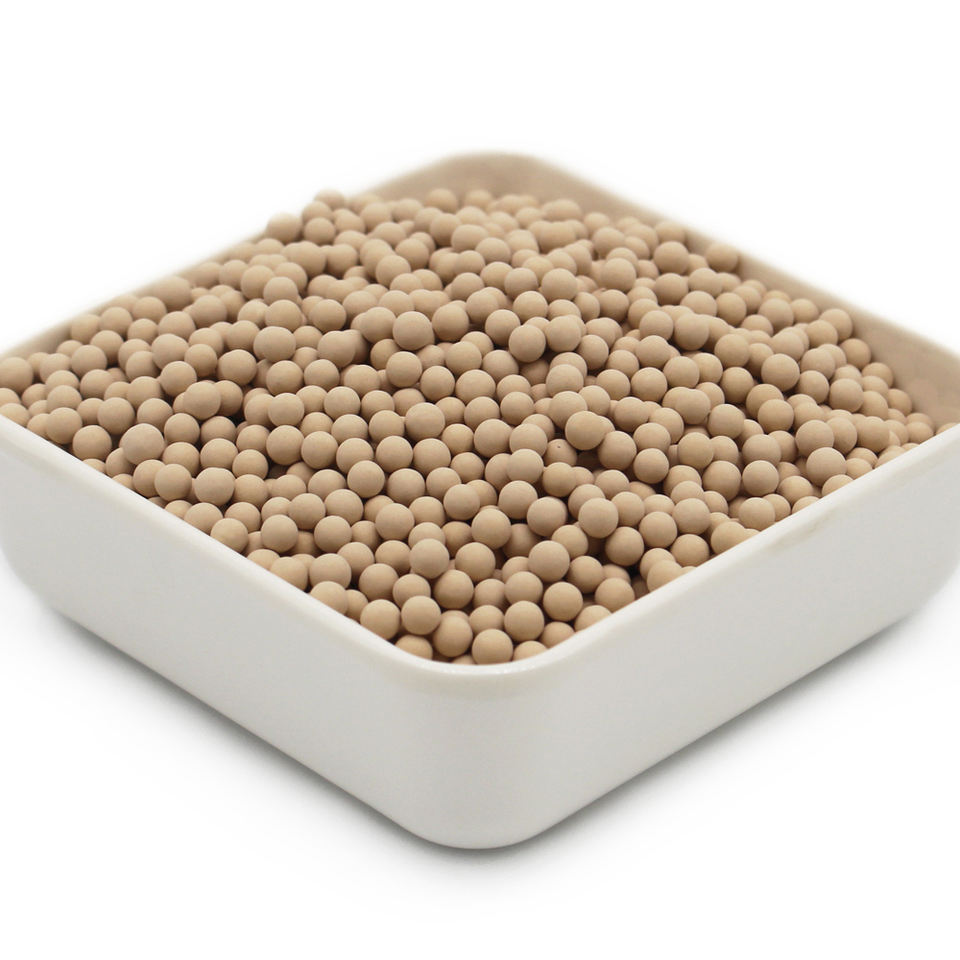

Molecular Sieve 13X for PSA

£10.06

Molecular Sieve 13X is a type of adsorbent material that is widely used in Pressure Swing Adsorption (PSA) systems, particularly for gas separation and purification applications. Here’s an overview of its role in PSA:

What is Molecular Sieve 13X?

Molecular Sieve 13X is a form of synthetic zeolite, a crystalline aluminosilicate material with a well-defined pore structure. It has a pore size of about 10 angstroms (Å), which allows it to selectively adsorb certain molecules based on their size and shape.

Pore Size: The 13X sieve is designed with a pore size of 10 Å, making it suitable for separating molecules based on size exclusion, particularly for gases like nitrogen, oxygen, and carbon dioxide.
Material: It’s typically composed of sodium aluminosilicate (NaA), which helps it adsorb gases effectively.

Role of Molecular Sieve 13X in PSA

Pressure Swing Adsorption (PSA) is a process used to separate and purify gases by utilizing differences in the adsorption characteristics of different gas components. Here’s how Molecular Sieve 13X fits into the PSA process:

Gas Separation: In a PSA system, gas mixtures (e.g., air, natural gas) are passed through a bed of Molecular Sieve 13X, where the sieve adsorbs the heavier and larger molecules (like CO2, H2O, and other impurities). Smaller molecules, like oxygen and nitrogen, pass through the bed more easily. This results in the separation of different components.
Regeneration: The key aspect of PSA is that after adsorption, the sieve is regenerated by reducing the pressure, allowing the adsorbed components to be desorbed. The Molecular Sieve 13X can be reused multiple times in this cycle, making it very efficient.
Purification: By selectively adsorbing certain gases, the PSA system can produce a purified stream of the desired component. For example, Molecular Sieve 13X is commonly used in oxygen generation systems, where nitrogen is removed from air to produce oxygen, or in CO2 removal applications.

Applications of Molecular Sieve 13X in PSA:

Oxygen Generation: Separating nitrogen from air to produce high-purity oxygen.
Carbon Dioxide Removal: Used in natural gas processing to remove CO2 or in carbon capture systems.
Hydrogen Purification: In hydrogen recovery or purification from various sources.
Drying: It’s often used in natural gas or air drying applications, as it adsorbs water vapor effectively.

Advantages of Molecular Sieve 13X:

High Adsorption Capacity: Due to its large surface area and specific pore structure, it can adsorb a high volume of gases.
Selectivity: It can selectively adsorb certain gases while allowing others to pass through, crucial for PSA applications.
Reusability: The sieve can be regenerated and reused multiple times, making it cost-effective over long periods.
Effective in Low-Temperature Conditions: It works well at ambient or low temperatures, which is ideal for most PSA applications.

Would you like more detailed technical specifications or data on its application in a specific PSA process?

Description

Molecular Sieve 13X: The Workhorse of Pressure Swing Adsorption

In the realm of gas separation and purification, Molecular Sieve 13X reigns supreme as a versatile and widely employed adsorbent, particularly within Pressure Swing Adsorption (PSA) systems. Its unique pore structure and robust properties make it a crucial component in various industrial applications, from air separation to medical oxygen production.

Understanding Molecular Sieve 13X

Molecular sieves are crystalline aluminosilicates with a three-dimensional, interconnected network of pores. 13X, specifically, boasts a larger pore size compared to its counterparts (like 3A, 4A, or 5A), allowing it to adsorb molecules with kinetic diameters up to 10 Angstroms. This broader accessibility makes it highly effective for separating various gas mixtures based on their molecular size and polarity.

The Power of PSA and 13X Collaboration

Pressure Swing Adsorption (PSA) is a cyclic process that leverages the selective adsorption properties of materials like Molecular Sieve 13X to separate gas components. The process involves alternating between high-pressure adsorption and low-pressure desorption stages. At high pressure, the desired gas is selectively adsorbed onto the 13X sieve, while other components pass through unadsorbed. Subsequently, reducing the pressure allows the adsorbed gas to be released, yielding a purified product stream.

Key Advantages of 13X in PSA Applications:

High Adsorption Capacity: 13X exhibits excellent adsorption capacity for molecules like nitrogen, carbon dioxide, and water vapor, making it ideal for applications requiring the removal of these components.
Strong Selectivity: While possessing a large pore size, 13X can still differentiate between molecules based on polarity and kinetic diameter, enabling efficient separation.
Regenerability: The adsorbed gases can be readily desorbed at lower pressures or elevated temperatures, allowing for repeated use of the 13X sieve and making the PSA process economically viable.
Chemical Stability: 13X demonstrates good chemical stability and resistance to degradation under typical operating conditions, ensuring a long service life.
Cost-Effectiveness: Compared to alternative separation technologies, PSA using 13X offers a relatively cost-effective solution for many gas separation applications.

Applications of 13X in PSA Systems:

The versatility of Molecular Sieve 13X in PSA systems translates to a wide range of applications, including:

Air Separation: Producing oxygen for medical or industrial use by selectively adsorbing nitrogen from compressed air. This is a critical application in healthcare facilities and various industrial processes.
Hydrogen Purification: Removing impurities like carbon dioxide, water vapor, and hydrocarbons from hydrogen streams generated through steam methane reforming or other processes. This purified hydrogen is vital for fuel cells, ammonia production, and various chemical processes.
Carbon Dioxide Removal: Removing CO2 from natural gas or biogas streams to upgrade fuel quality and reduce greenhouse gas emissions. This is particularly relevant in the pursuit of cleaner energy sources.
Drying of Gases: Effectively removing water vapor from various gas streams, preventing corrosion and ensuring the smooth operation of downstream processes. This is essential in industries dealing with sensitive chemical reactions or gas transportation.
Medical Oxygen Concentrators: Enabling portable and home-based oxygen therapy by separating oxygen from ambient air.

Looking Ahead

Molecular Sieve 13X remains a cornerstone of PSA technology, continuously evolving to meet the demands of various industries. Ongoing research focuses on further enhancing its adsorption capacity, selectivity, and overall performance. The future holds promising developments in areas such as:

Improved Synthesis Techniques: Developing more efficient and cost-effective methods for producing 13X sieves with tailored properties.
Modification and Functionalization: Modifying the surface of 13X with specific functional groups to enhance selectivity for targeted molecules.
Integration with Novel PSA Configurations: Exploring new PSA cycle designs and operational parameters to maximize the performance of 13X in specific applications.

In conclusion, Molecular Sieve 13X is a vital player in the field of gas separation and purification, thanks to its unique properties and its effectiveness within PSA systems. As industries continue to demand cleaner, purer, and more efficient gas separation solutions, 13X will undoubtedly remain a key technology, driving innovation and enabling advancements across diverse sectors.
