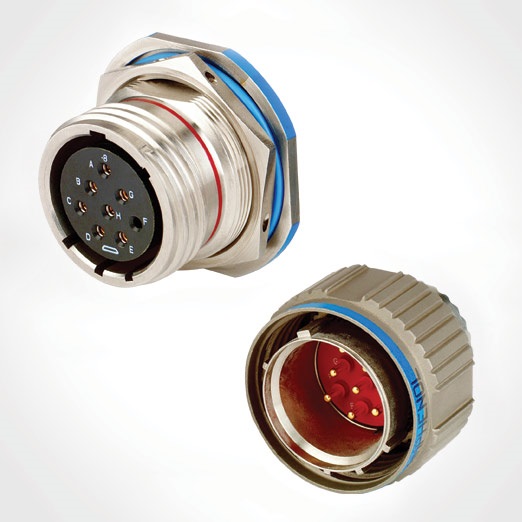

MIL-DTL-38999 series III circular connector

Description

Product Overview
The MIL-DTL-38999 Series III circular connector is a high-performance, MIL-specified electrical connector engineered for mission-critical aerospace, defense, and industrial systems. It provides secure, blind-mateable multi-pin interconnections in extreme environments, delivering vibration resistance, EMI/RFI shielding, and sealed performance to IP67/68-equivalent levels. Its key value proposition is a compact, ruggedized interface that reduces install time and lifecycle risk while ensuring signal integrity under thermal, shock, and corrosive conditions. Strategically, this connector standard is widely adopted across defense primes, avionics manufacturers, and heavy-industry OEMs, making it a cornerstone component for reliable system certification and logistics commonality.

Key Specifications & Technical Characteristics

• Standard: MIL-DTL-38999 Series III compliant, meeting MIL performance criteria for contact retention, coupling torque, and environmental sealing.

• Shell materials: Aluminium alloy (standard), available in corrosion-resistant cadmium or nickel plating; optional stainless steel or composite shells for enhanced corrosion or EMI performance.

• Contact materials: Copper alloy contacts with gold or tin over nickel plating; available in high-reliability beryllium-copper or silver-plated variants upon request.

• Contact arrangements: Multiple insert arrangements available (from low-pin-count to high-density configurations), compatible with crimp, solder, or PCB termination styles.

• Insulator: High-temperature thermoset or fluoropolymer insulators rated for extended thermal cycles.

• Sealing: Integrated O-ring and front-panel sealing enabling dust- and water-proof performance to IP67/IP68 when mated and per connector specification for unmated conditions.

• Operating temperature: Typical range -65°C to +200°C depending on contact and insulator options; custom high-temperature variants available.

• Mechanical: Vibration and shock rated to applicable MIL standards; coupling nut or bayonet locking mechanism with tactile engagement and retention features.

• Electrical: Voltage and current ratings per insert arrangement and contact size; excellent EMI/RFI shielding when equipped with conductive shells and drain contacts.

• Finish and corrosion protection: Standard finishes with conversion coatings; custom corrosion-resistant treatments available for marine or chemical environments.

• Packaging: Individual boxed with protective caps and desiccant; bulk crate options for large orders; labels include lot number, P/N, and traceability data.

• Shelf life: Non-perishable electronic/mechanical component; recommended storage in dry, temperature-controlled conditions to preserve sealing elastomers and plating integrity.

Core Industrial Applications

• Aerospace & Defense: Primary use in military aircraft wiring harnesses, mission systems, UAVs, and weapons platforms where certified, rugged connectors are required for avionics, sensors, and power distribution. Preferred for mission-critical redundancy and standardization across platforms.

• Industrial Automation & Heavy Equipment: Used in robotics, servo drives, and mobile machinery where vibration and ingress protection are mandatory. Delivers longer mean-time-between-failures compared with commercial-grade connectors.

• Marine & Offshore: Employed for control systems, subsea interfaces, and power/data lines in corrosive saltwater environments when specified with corrosion-resistant materials.

• Rail & Mass Transit: Applied in traction, signaling, and passenger systems for durable, tamper-resistant interconnects subject to harsh mechanical stress and EMI-rich environments.

• Oil & Gas and Energy: Suitable for instrumentation and control in hazardous-area installations when paired with appropriate sealing and grounding accessories.
  Why it outperforms alternatives

• Higher sealing and mechanical robustness than commercial circular connectors, reducing downtime and maintenance costs.

• MIL-based qualification ensures predictable performance and simplifies supplier qualification for OEMs and primes.

• Wide range of materials, finishes, and contact options enables exact tailoring to electrical, mechanical, and environmental requirements, improving system-level reliability and lifecycle cost.

Competitive Advantages

• Quality consistency: Supplied under controlled production processes with lot traceability, material certifications, and batch testing to meet contract-level requirements.

• Supply reliability: Configured for high-volume production and long-life procurement programs; strategic safety stock and allocation programs available for defense and critical infrastructure customers.

• Logistics capability: Flexible packaging (single-unit protective caps, tray, box, export crating) and global freight options; can support containerized shipments with optimized loading.

• Price competitiveness: Multiple material/finish tiers let buyers balance initial cost versus lifecycle performance; bulk pricing for program orders (MOQ-based discounts).

• Sustainability: Options for RoHS-compliant finishes and lead-free plating; long service life reduces replacement frequency and lifecycle environmental impact.

• Technical support: Complete documentation including dimensional drawings, electrical data, installation torque and crimp specifications, environmental test reports, and compatibility matrices; engineering support for custom configurations and AS9100/NADCAP-related queries.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Please confirm container type and configuration; typical 20-foot container gross loading up to ~20–22 MT (subject to packaging and palletization), 40-foot container up to ~24–26 MT. Final loading will be provided with order confirmation based on packaging spec and density.
