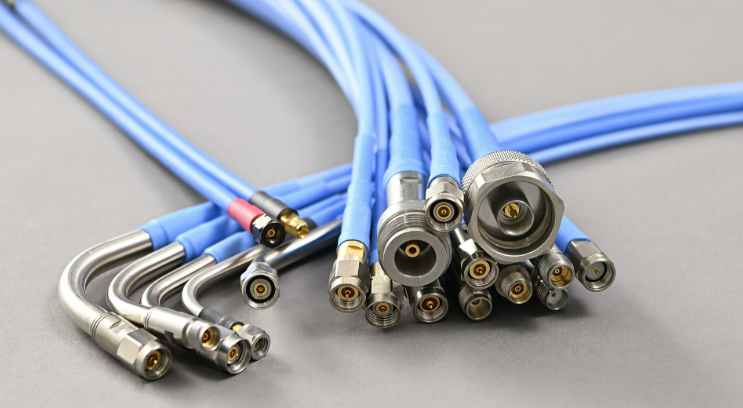

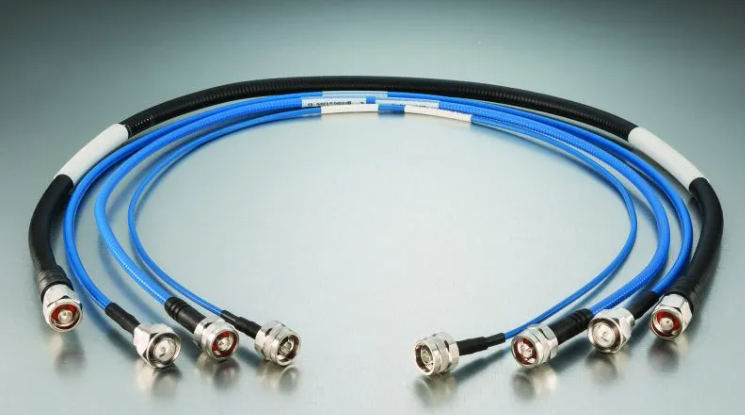

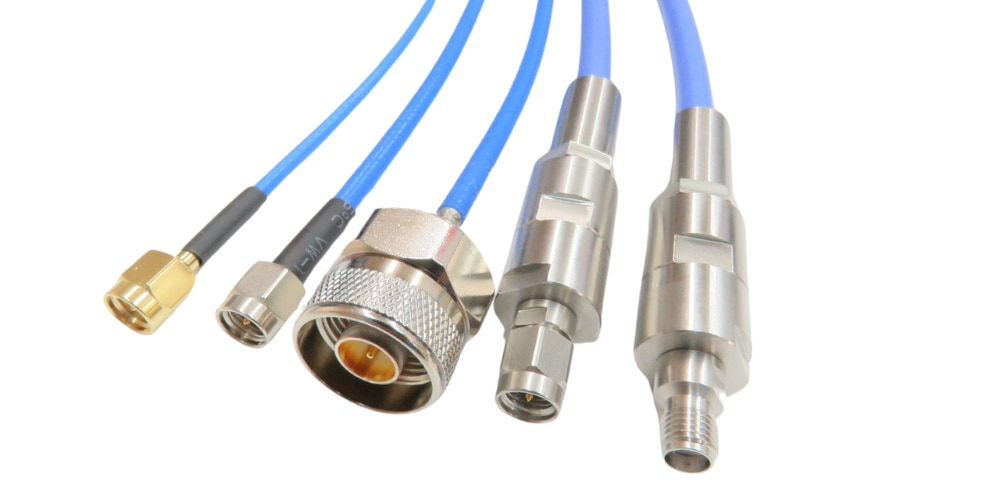

Microwave Coax Cable

Description

1. Product Overview

Microwave Coax Cable is a high-performance RF transmission cable engineered to deliver reliable high-frequency signal connectivity across microwave and wireless communication systems. Designed for low-loss signal transmission, it supports applications in telecommunications, aerospace, defense, radar, satellite, and industrial electronics. Its advanced shielding and precision dielectric construction provide excellent signal integrity, durability, and resistance to electromagnetic interference. As global demand for high-speed connectivity and next-generation communication infrastructure expands, microwave coax cable remains a critical component for reliable RF network performance.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • Inner conductor: Copper, silver-plated copper, or copper-clad aluminum (CCA) options
  • Dielectric insulation: PTFE, FEP, PE, or low-loss fluoropolymer materials
  • Outer conductor/shield: Braided copper, aluminum foil, or multi-layer shielding structures
  • Jacket: UV-resistant PVC, PE, TPU, or LSZH protective materials
• Grade / Performance Level:
  • High-frequency microwave/RF transmission grade
  • Low insertion loss and high signal stability design
  • Available in commercial, industrial, aerospace, and military-grade specifications
• Physical Characteristics:
  • Form: Flexible or semi-rigid coaxial cable
  • Color: Typically black, gray, or customized according to specification
  • Frequency range: From MHz applications up to GHz microwave bands depending on design
  • Impedance: Commonly 50 Ohm or 75 Ohm configurations
  • Shielding: Single, double, or triple-layer EMI/RFI shielding options
  • Temperature resistance: Suitable for demanding industrial environments
• Packaging Options:
  • Standard export reels, wooden drums, or protective cartons
  • Customized lengths available according to customer requirements
  • Bulk packaging suitable for large-scale industrial procurement
• Shelf Life:
  • Typically 5–10 years when stored in dry, temperature-controlled conditions with proper protection

3. Core Industrial Applications

• Telecommunications & Wireless Infrastructure:
  • Used in 4G/5G base stations, antennas, RF modules, and communication towers for stable signal transmission.
• Aerospace & Defense Systems:
  • Applied in radar equipment, avionics, electronic warfare systems, and secure communication platforms requiring high reliability.
• Satellite & Space Communication:
  • Supports microwave links, ground stations, and satellite communication equipment where low signal loss is essential.
• Industrial Electronics & Testing Equipment:
  • Used in RF testing systems, network analyzers, measurement instruments, and laboratory applications.
• Performance Advantages:
  • Provides lower attenuation compared with standard coaxial cables, improving transmission efficiency.
  • Enhanced shielding minimizes interference and improves signal accuracy.
  • High mechanical strength enables long service life in harsh operating conditions.

4. Competitive Advantages

• Quality Consistency: Manufactured under strict quality control processes to ensure stable electrical performance, impedance accuracy, and dimensional reliability.
• Supply Reliability: Supported by scalable production capacity and consistent raw material sourcing for long-term industrial supply agreements.
• Logistics Capability: Export-ready packaging with flexible shipment options for global distributors, OEMs, and infrastructure projects.
• Price Competitiveness: Optimized manufacturing processes provide competitive pricing without compromising RF performance and durability.
• Sustainability Benefits: Durable cable construction reduces replacement frequency and material waste throughout the product lifecycle.
• Technical Support & Documentation: Available with product specifications, test reports, compliance documentation, and engineering support for integration requirements.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity (MT per Container): Approximately 18–22 MT per 20-foot container (depending on cable size, packaging method, and reel configuration)
