Micro-Fit 3.0 connector

Description

1. Product Overview

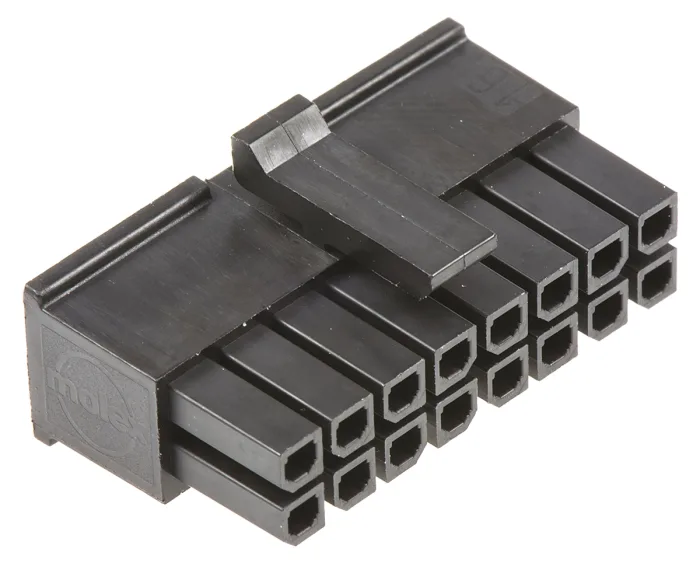

Micro-Fit 3.0 connector is a high-density, precision-engineered electrical connector family designed for industrial and commercial wire-to-board and wire-to-wire applications. It provides compact, reliable power and signal connectivity where space, cycle life, and secure mating are critical—typical uses include industrial control cabinets, automation equipment, power distribution modules, and instrumentation. The primary value proposition is a proven combination of small footprint, robust contact integrity, and rapid assembly that reduces system size and installation time while improving uptime. Strategically, Micro-Fit 3.0 addresses the market demand for higher power density and reliable interconnects in modern industrial systems, enabling OEMs and systems integrators to downsize assemblies without compromising performance.

2. Key Specifications & Technical Characteristics

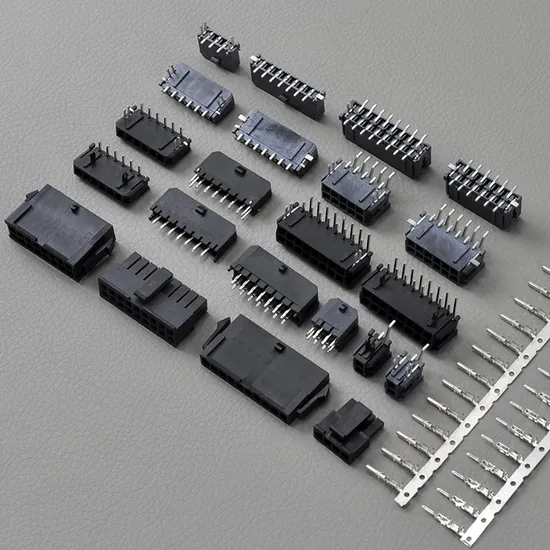

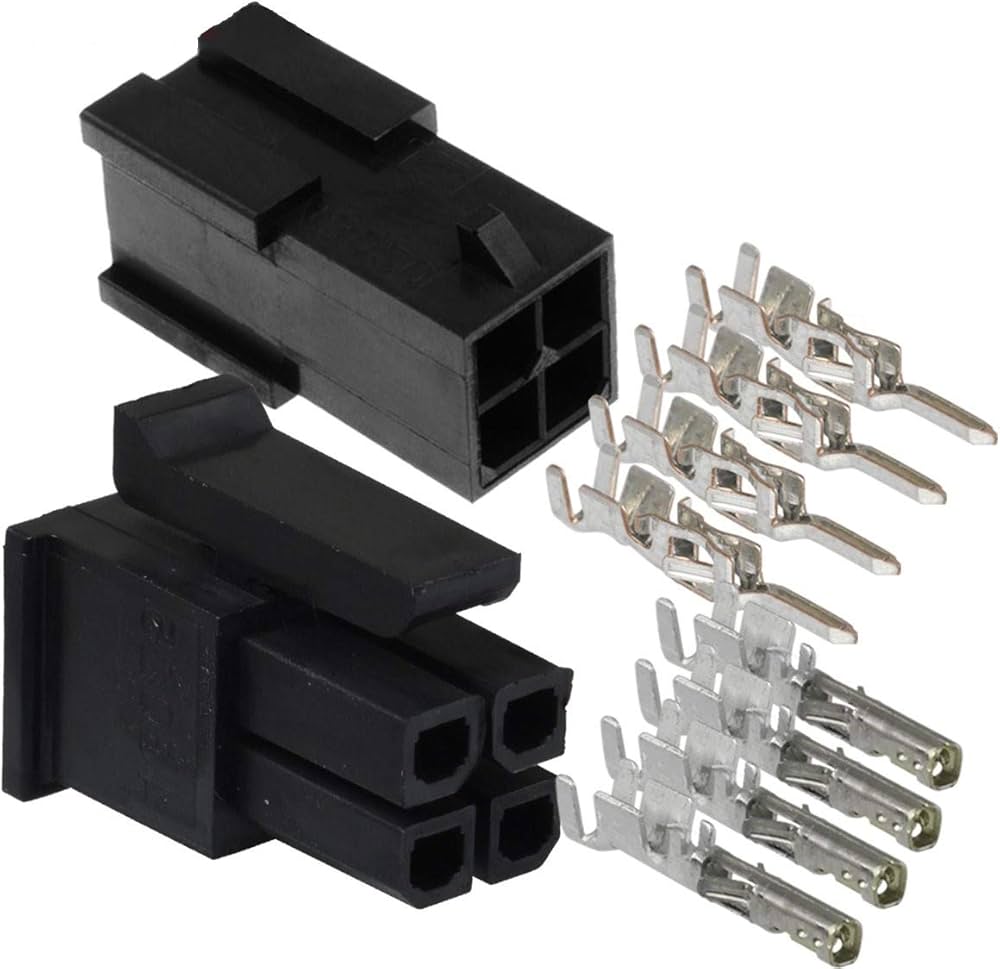

• Connector family: Micro-Fit 3.0 series, single- and multi-pin housings, lock and latch variants.

• Contact material: Copper alloy contacts with selective gold or tin plating options for corrosion resistance and low contact resistance.

• Insulator material: High-temperature glass-filled nylon (PA 66) or equivalent, UL94 V-0 rated.

• Current rating: Up to 5.0 A per contact (typical, dependent on pin count and operating conditions).

• Voltage rating: Up to 250 VAC/DC (application dependent; consult datasheet for specific pin configurations).

• Contact resistance: ≤ 10 mΩ initial typical (gold-plated), industry-standard specification applies.

• Withstanding temperature range: -40 °C to +105 °C (continuous); short-term higher-temperature resistance available.

• Mating cycles: Rated for 30–50 cycles (dependent on plating and contact design).

• Pitch: 3.0 mm center-to-center (Micro-Fit 3.0 standard).

• Polarization & keying: Multiple keyed housings to prevent mismating.

• Flame/heat performance: Meets common industrial flammability standards (e.g., UL94 V-0), consult test certificates for specific ratings.

• Packaging options: Bulk reels (loose on reel), tray packaging for automated pick-and-place, shrink-wrapped boxes for manual assembly; custom packaging available for just-in-time delivery.

• Shelf life: Indefinite for passive connectors when stored in dry, temperature-controlled conditions (recommended 5–30 °C, RH <60%); plating and insulator materials are stable under normal storage.

• Traceability: Lot and batch coding available; serialization on request for regulated supply chains.

3. Core Industrial Applications

• Primary industries: Industrial automation and robotics, power distribution and controls, medical instrumentation (non-implantable), telecom equipment, automotive electronics (non-safety critical harnesses), consumer appliance manufacturing, and test & measurement systems.

• Specific use cases:

  • Control cabinet wiring: dense wire-to-board connections that reduce panel size and simplify harness routing.

  • Sub-assembly power delivery: modular power blocks where small footprint and reliable mating reduce downtime.

  • Sensor and actuator interfaces: signal and low-power connections in robots and automated machinery with repeated mate/unmate cycles.

  • Instrumentation modules: compact interconnects inside analyzers and test equipment requiring stable contact resistance.

• Performance advantages vs alternatives:

  • Higher power density than comparable 3.96 mm or larger pitch connectors, enabling smaller designs.

  • Better mechanical retention and polarization than generic IDC or screw terminals, reducing installation errors and maintenance.

  • Predictable electrical performance with plated contacts and controlled mating cycle life, lowering lifecycle cost through reduced replacements.

4. Competitive Advantages

• Quality consistency: Manufactured to industry-standard tolerances with incoming material inspections and process controls yielding low defect rates suitable for OEM production.

• Supply reliability: Multiple production lines and tested supplier inventory buffers support consistent lead times and scalable volumes for enterprise customers.

• Logistics capability: Available in standard bulk and automation-friendly packaging, worldwide shipping from regional hubs, and options for expedited air freight and vendor-managed inventory.

• Price competitiveness: Market-optimized pricing for bulk 20 MT orders with tiered discounts and long-term contract pricing available to reduce unit cost for high-volume buyers.

• Sustainability: RoHS-compliant materials and plating options; lead-free finishes and recyclable packaging options available to align with corporate sustainability policies.

• Technical support: Complete technical documentation (datasheets, mechanical drawings, PCB footprint recommendations, application notes) plus engineering support for customization, connector selection, and reliability testing.

• Certification support: Assistance with compliance documentation for common industrial standards and testing when required for qualification.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity (MT per container): Typical 20-foot container capacity: up to 18–20 MT depending on packaging configuration and palletization; 40-foot container capacity: up to 22–24 MT subject to packing density and export regulations.

• Lead times: Standard lead time dependent on order size and destination; expedited production available for prioritized contracts (contact sales for firm dates).

• Ordering & support: Single-source procurement available with options for blanket purchase agreements, scheduled deliveries, and quality inspection briefs on shipment.
