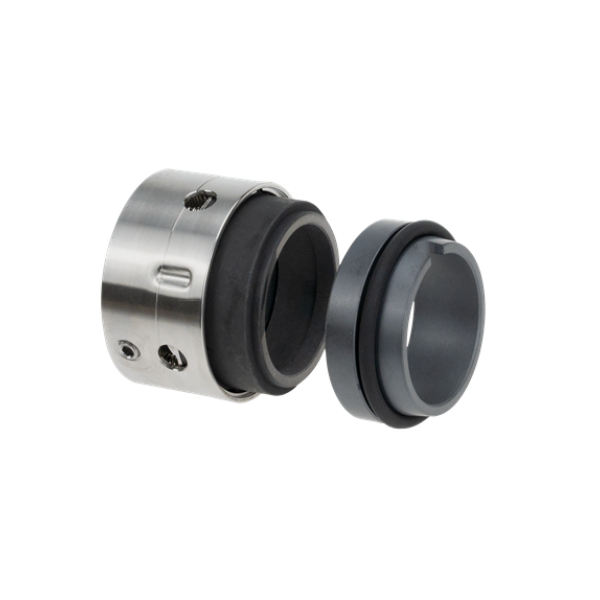

Mechanical seal M7N type

Description

1. Product Overview

The Mechanical Seal M7N type is a high-performance rotating shaft seal engineered for demanding centrifugal pumps and mixers in corrosive, high-pressure, and high-temperature process environments. It delivers leak-free sealing for fluids across chemical, petrochemical, water treatment, and industrial processing plants. Built for longevity and low maintenance, the M7N reduces unplanned downtime, minimizes fugitive emissions, and lowers total cost of ownership. Its robust design and broad compatibility make it a strategic sourcing choice for operations prioritizing reliability and regulatory compliance.

2. Key Specifications & Technical Characteristics

• Seal type: M7N single/dual mechanical seal configuration (standard supply: single; dual available on request).

• Materials of construction: Stationary ring: Silicon carbide (SiC) or optional ceramic; Rotating ring: Carbon graphite or tungsten carbide (WC); Secondary seals: Nitrile (NBR), EPDM, or FKM (Viton) as per chemical compatibility; Metal components: 316L stainless steel standard; duplex or Hastelloy options available.

• Surface finish tolerance: Face flatness ≤ 2 µm; runout tolerance ≤ 0.05 mm.

• Operating temperature range: -30 °C to +220 °C (material-dependent).

• Maximum pressure rating: Up to 25 bar (standard); engineered versions up to 40 bar.

• Shaft diameter range: Fit for 10 mm to 150 mm shafts (custom adaptors for larger sizes).

• Speed capability: Up to 20 m/s peripheral speed (application-dependent).

• Chemical compatibility: Broad resistance across acids, bases, solvents, and hydrocarbons; material selection guidance provided per fluid.

• Leakage performance: API-classified low-leak design; typical leakage rates below industry benchmarks when installed per specification.

• Balance type: Balanced face geometry to reduce face loads and heat generation.

• Packaging options: Individual sealed crate with desiccant and corrosion inhibitor; bulk palletized for orders ≥1 MT; customized export-ready wooden crates or ISO-compliant packaging on request.

• Shelf life/Storage: Indefinite shelf life when stored in dry, temperature-controlled (5–25 °C) conditions; elastomer components recommended use within 24 months to ensure optimal sealing elasticity.

• Certification & documentation: Material certificates (EN10204 3.1) available; dimensional drawings, installation manual, and performance data sheet provided with shipment.

3. Core Industrial Applications

• Petrochemical & Refining: Shaft sealing in crude and refined product pumps, hydrocarbon service compressors, and reactor recirculation systems. The M7N’s material options (Hastelloy/SiC/WC) resist sour gas attack and abrasive particulates, extending run intervals versus generic seals.

• Chemical Processing: Metering, transfer, and dosing pumps handling corrosive acids, caustics, and solvents. Tailored elastomer and face material choices prevent swelling and rapid wear, improving process purity and reducing maintenance cycles.

• Water & Wastewater Treatment: Pumps for abrasive slurries, clarifier recirculation, and high-cycle duty. Balanced face design maintains seal stability under solids-laden fluids, lowering replacement frequency and labor costs.

• Power Generation & Steam Plants: Boiler feed, condensate, and cooling water pumps where thermal stability and low leakage are critical to efficiency and emissions compliance.

• Pulp & Paper, Mining, and Mineral Processing: Slurry and mill pumps where mechanical robustness, abrasion resistance, and reliability under cyclic loads deliver measurable uptime gains.
  Why it outperforms alternatives: The M7N combines balanced face geometry, high-grade face materials, and modular elastomer options to reduce frictional heat, resist chemical attack, and tolerate abrasive media—yielding longer service life, fewer unplanned interventions, and lower lifecycle cost than commodity seals.

4. Competitive Advantages

• Quality consistency: Manufactured under ISO 9001-compliant processes with batch traceability and material test certifications.

• Supply reliability: Production capacity scaled for continuous supply with safety stock and prioritized allocation for long-term contracts.

• Logistics capability: Export-ready packaging, drop-shipping options, and multimodal freight coordination for global delivery from regional hubs.

• Price competitiveness: Tiered pricing for volume purchases, cost engineering options (standard vs. premium alloys), and extended service agreements to optimize TCO.

• Sustainability: Long-life materials and reduced leakage lower environmental emissions and waste; packaging uses recyclable materials where feasible.

• Technical support: Application engineering, installation guidance, troubleshooting diagnostics, and spare-parts kits provided; CAD models and dimensional drawings available pre-order to validate fit.

• Warranty & documentation: Standard warranty on manufacturing defects; comprehensive documentation (material certificates, installation and maintenance manual) included to support regulatory and procurement audits.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity: Typical loading per container — 20-foot container: up to 20 MT (packed as palletized units/crates, depending on configuration); 40-foot container: up to 25–27 MT (configuration-dependent).

• Lead times: Standard production lead time 6–8 weeks for stocked configurations; expedited and stocked SKU options available subject to allocation.

• Packaging & shipment: Export-compliant wooden crates or pallets, desiccant and corrosion inhibitor, secured for intermodal transport.

• After-sales: Spare parts kits, refurbishment services, and extended service contracts available on commercial terms.
